Product Description

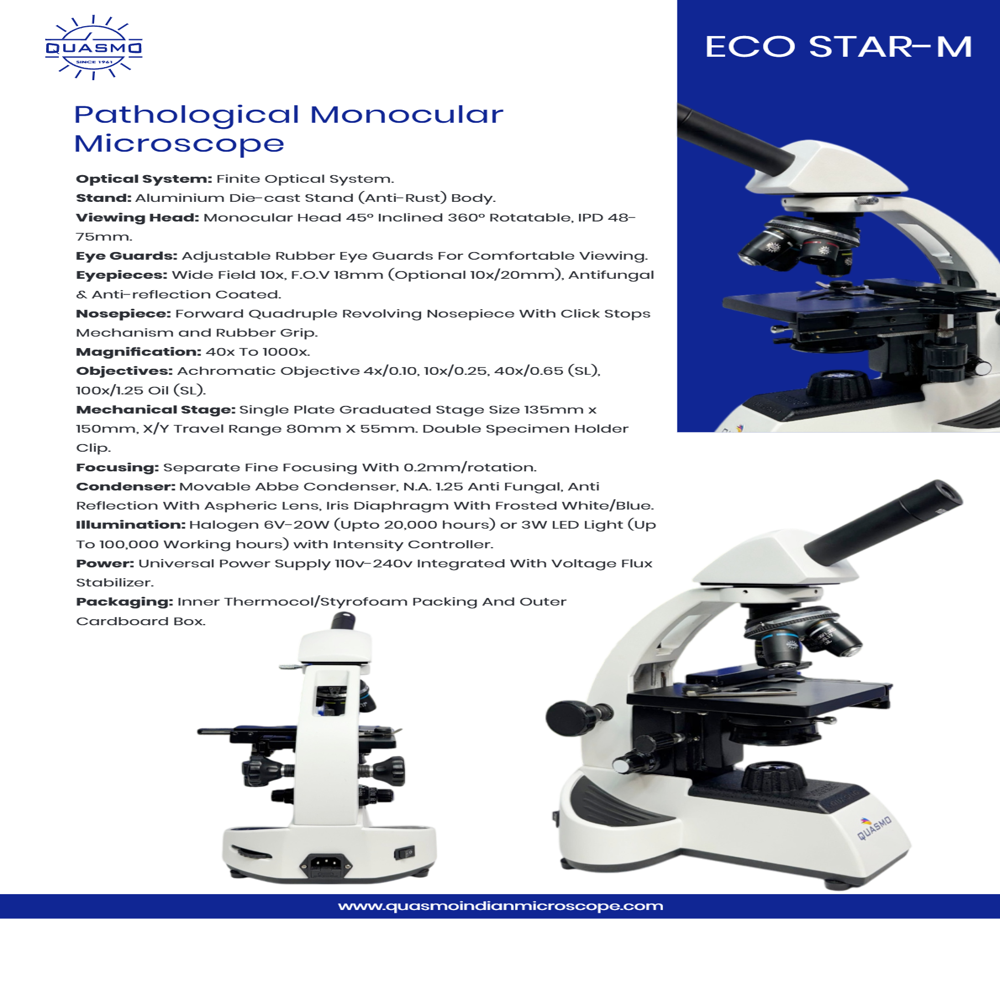

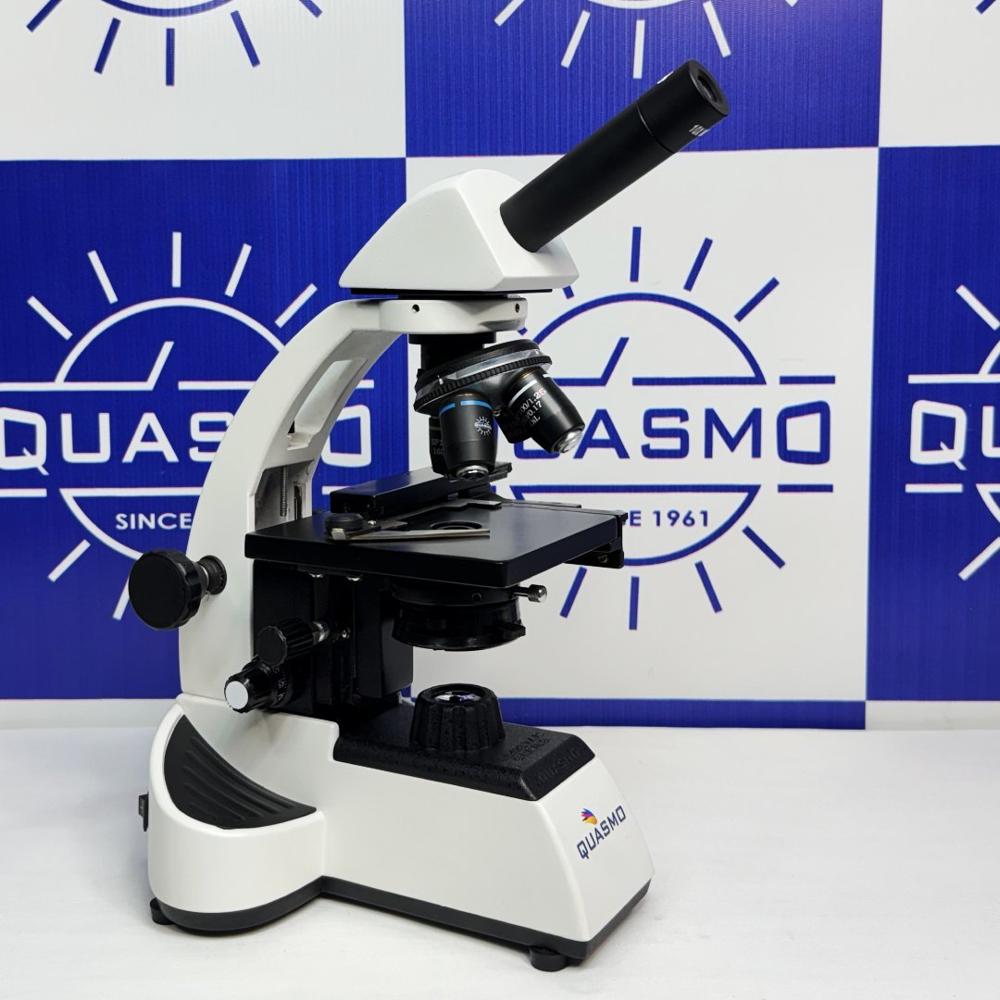

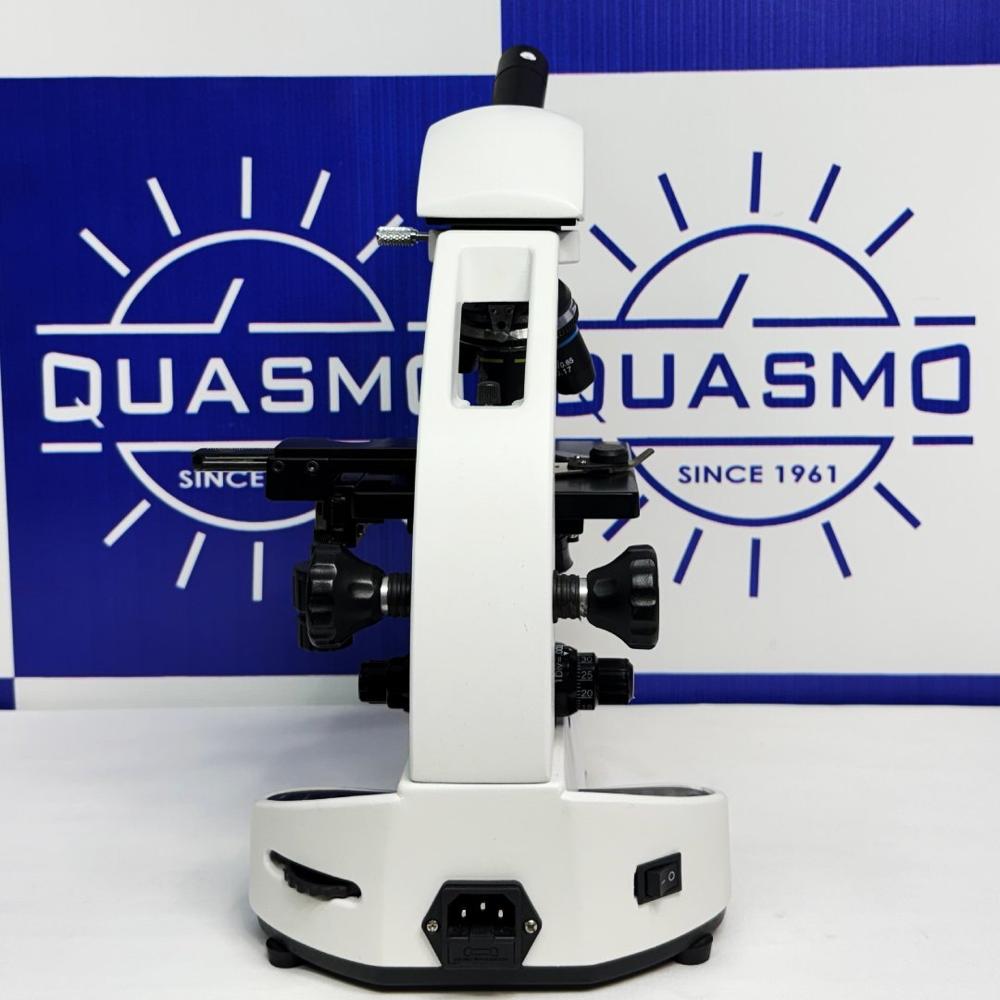

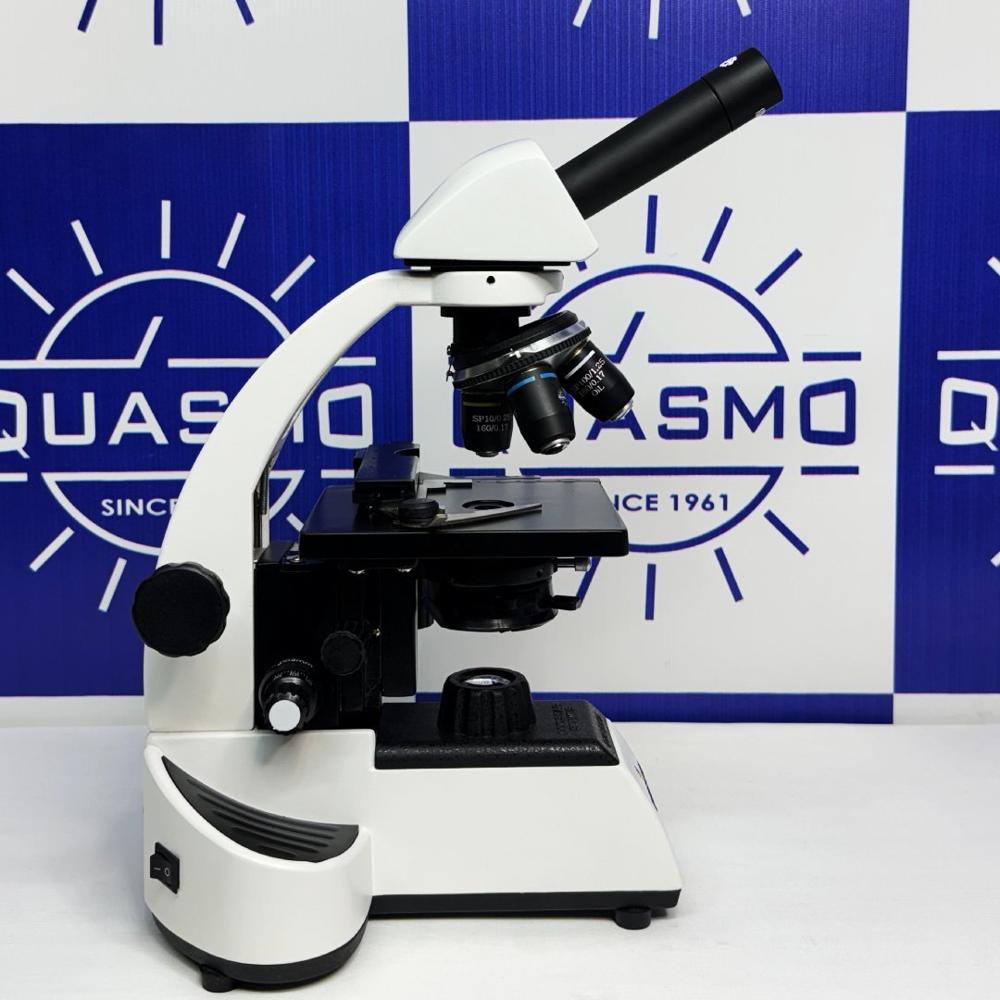

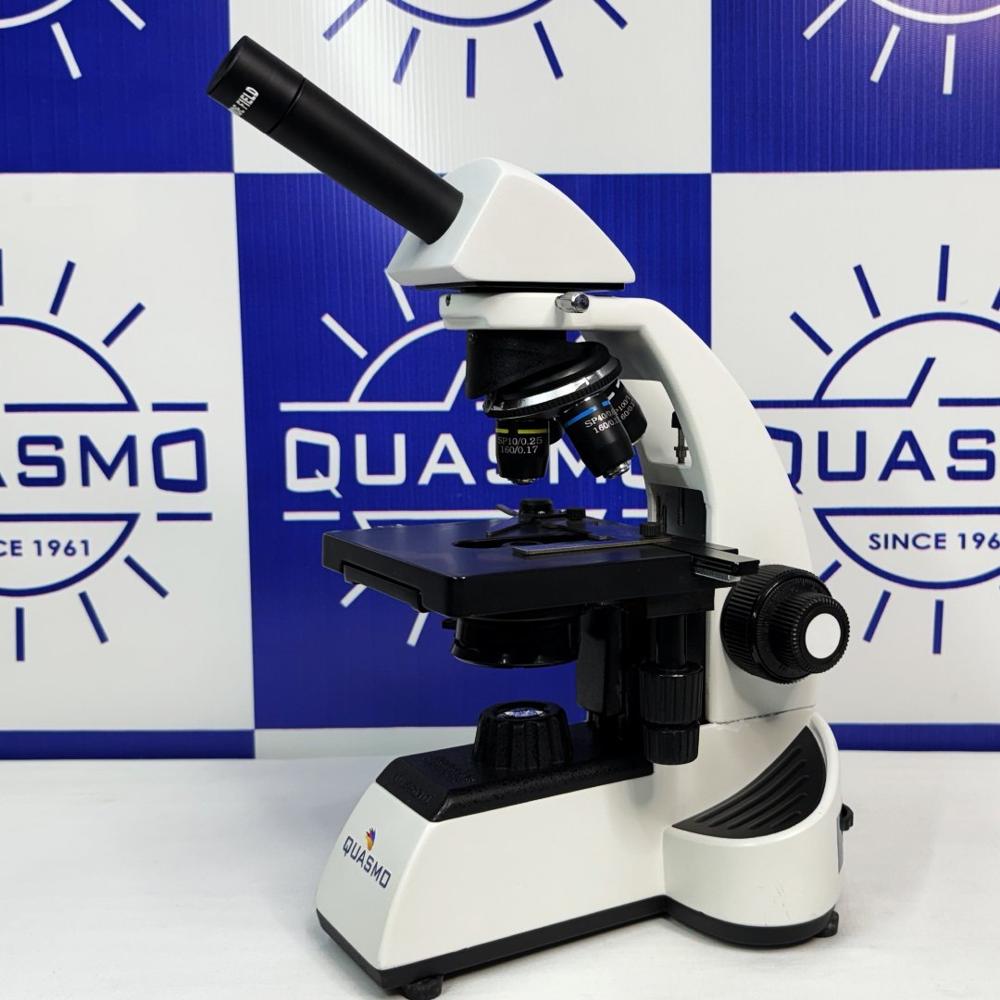

ECO STAR-M PATHOLOGICAL MONOCULAR MICROSCOPE
- Optical System: Finite Optical System.
- Stand: Aluminium Die-cast Stand (Anti-Rust) Body.
- Viewing Head: Monocular Head 45 Inclined 360 Rotatable, IPD 48-75mm.
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 18mm (Optional 10x/20mm), Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 40x To 1000x.
- Objectives: Achromatic Objective 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage: Single Plate Graduated Stage Size 135mm x 150mm, X/Y Travel Range 80mm X 55mm. Double Specimen Holder Clip.
- Focusing: Separate Fine Focusing With 0.2mm/rotation.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens, Iris Diaphragm With Frosted White/Blue.
- Illumination: Halogen 6V-20W (Upto 20,000 hours) or 3W LED Light (Up To 100,000 Working hours) with Intensity Controller.
- Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
- Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Engineered for Durability and PrecisionConstructed with a sturdy metallic frame and anti-rust enamel finish, the ECO STAR-M microscope is built for longevity. The stable rectangular base minimizes vibrations, ensuring microscopic details remain in sharp focus. Its mechanical stage with X-Y dual axis movement and fine focusing scale allows for highly precise sample maneuvering during pathological and clinical observations.
Versatile Illumination for Diverse SettingsEquipped with both built-in LED and plano-concave mirror illumination options, this microscope adapts to various lighting environments. The Abbe condenser with iris diaphragm optimizes light control for enhanced image clarity, making it suitable for laboratory, clinical, and educational applications alike. Its dual power supply (AC or manual) ensures consistent operation anywhere.
Optimized Viewing ExperienceThe monocular head is set at a comfortable 45 incline and rotates 360, catering to different viewing positions during extended use. Achromatic objectives and anti-fungal, anti-reflection coated optics provide crisp, accurate images. The package includes essential accessories like immersion oil and a dust cover, ensuring long-term care and optimal performance.
FAQ's of ECO STAR-M PATHOLOGICAL MONOCULAR MICROSCOPE:
Q: How do I switch between LED and mirror illumination on the ECO STAR-M microscope?
A: To change illumination, simply choose the LED option when AC power is available for consistent, bright lighting, or use the plano-concave mirror for manual illumination in settings where electricity is not accessible. This flexibility allows you to use the microscope effectively in various environments.
Q: What types of microscopy applications is this microscope suitable for?
A: The ECO STAR-M Pathological Monocular Microscope is ideal for pathological, clinical, and educational laboratory applications, enabling detailed study and analysis of prepared slides in schools, colleges, research labs, and hospitals.
Q: When should I use immersion oil with the microscope?
A: Immersion oil should be used with the 100x oil immersion objective to achieve greater clarity and resolution when observing fine specimen details. The microscope package includes immersion oil for your convenience.
Q: Where can I use this microscope given its power supply options?
A: This microscope operates with an AC adapter for the LED light or can function without electricity using the manual mirror illumination. Its versatile design makes it suitable for use in classrooms, laboratories, clinics, or locations where power sources may be limited.
Q: What is the process for cleaning and maintaining the optical components?
A: To maintain clear imaging, gently clean the optics with a soft, lint-free cloth and appropriate lens cleaner. Never use harsh chemicals. Store the microscope with the included dust cover to protect components from dirt and debris.
Q: How does the anti-fungal and anti-reflection coating benefit my microscopy work?
A: The special coatings on the optical elements prevent fungal growth and reduce glare, ensuring bright, crisp, and reliable imaging even after prolonged use or storage in humid environments.
