Product Description

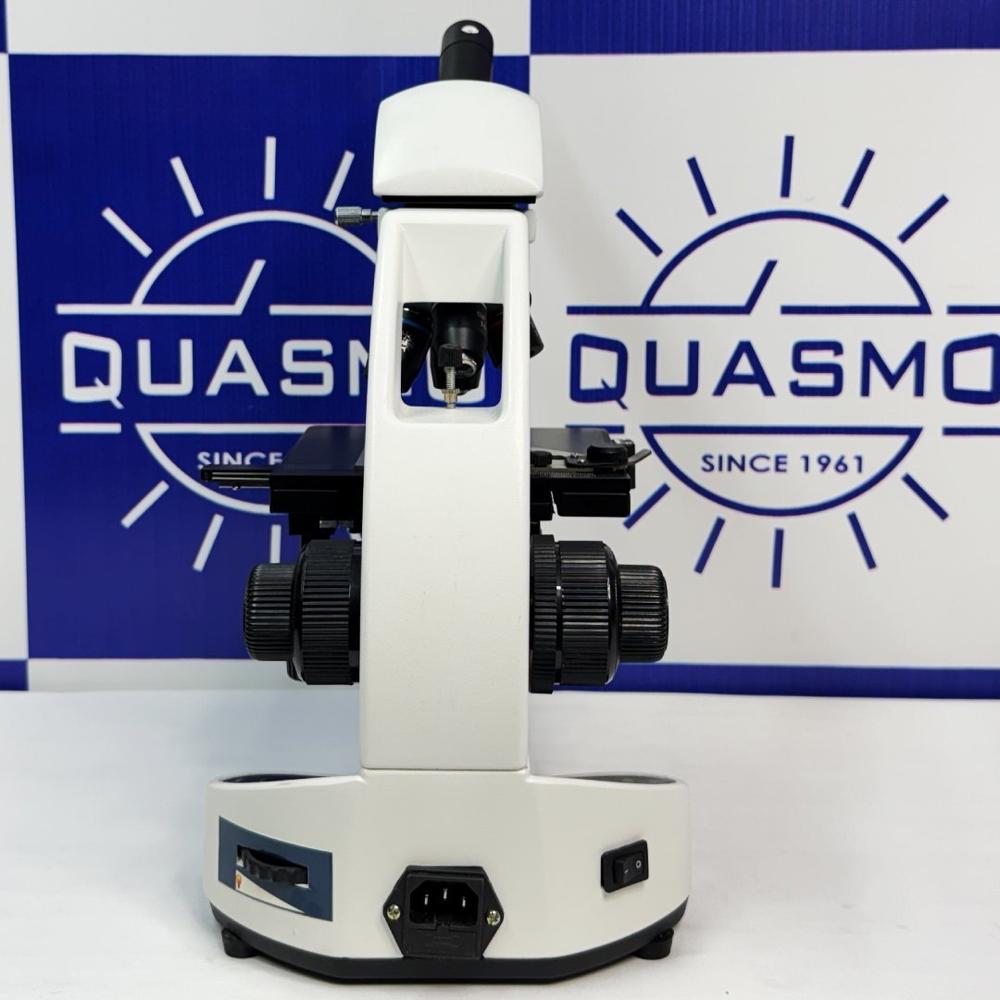

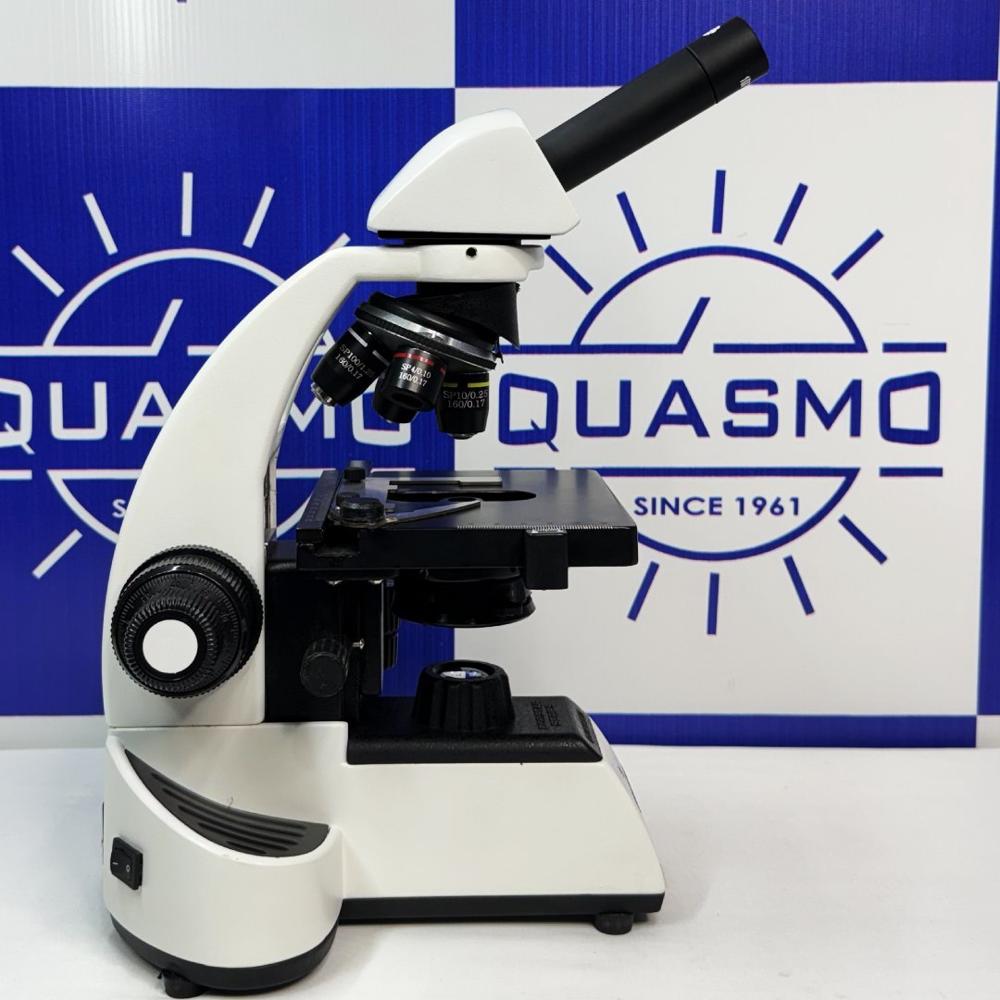

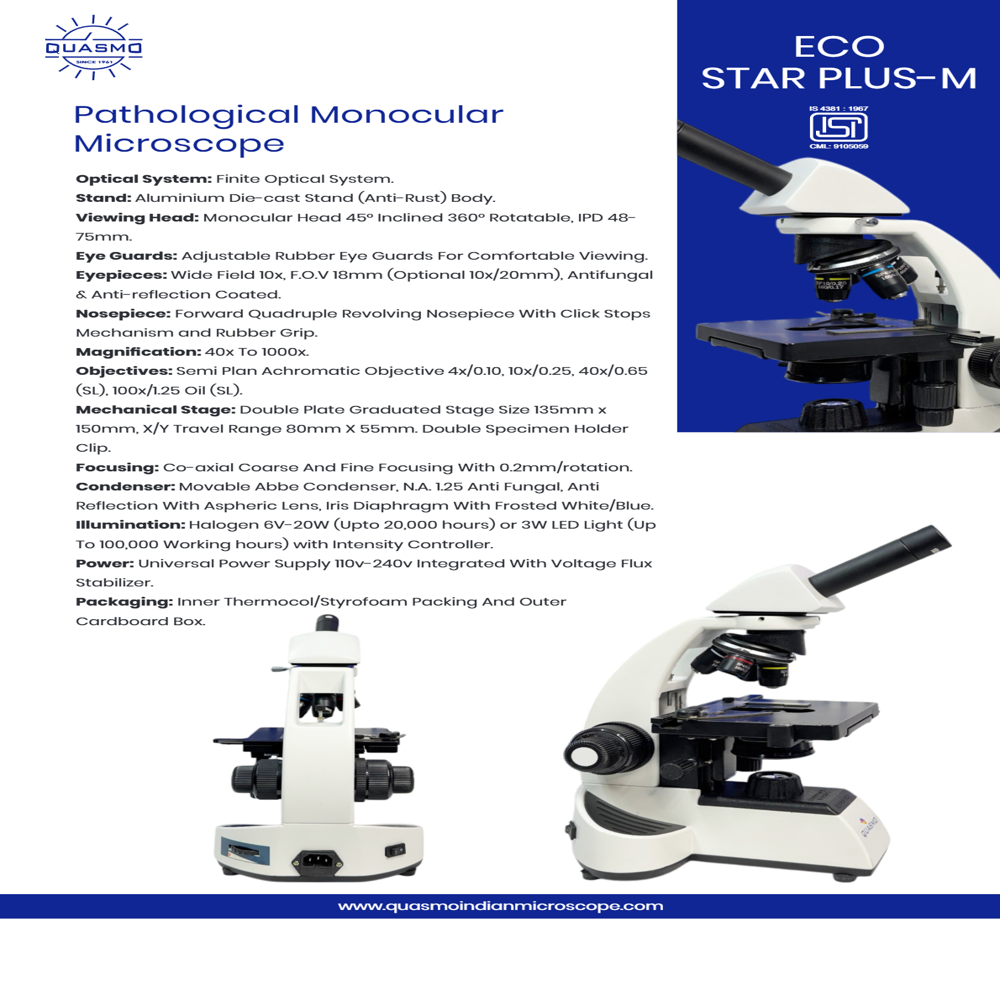

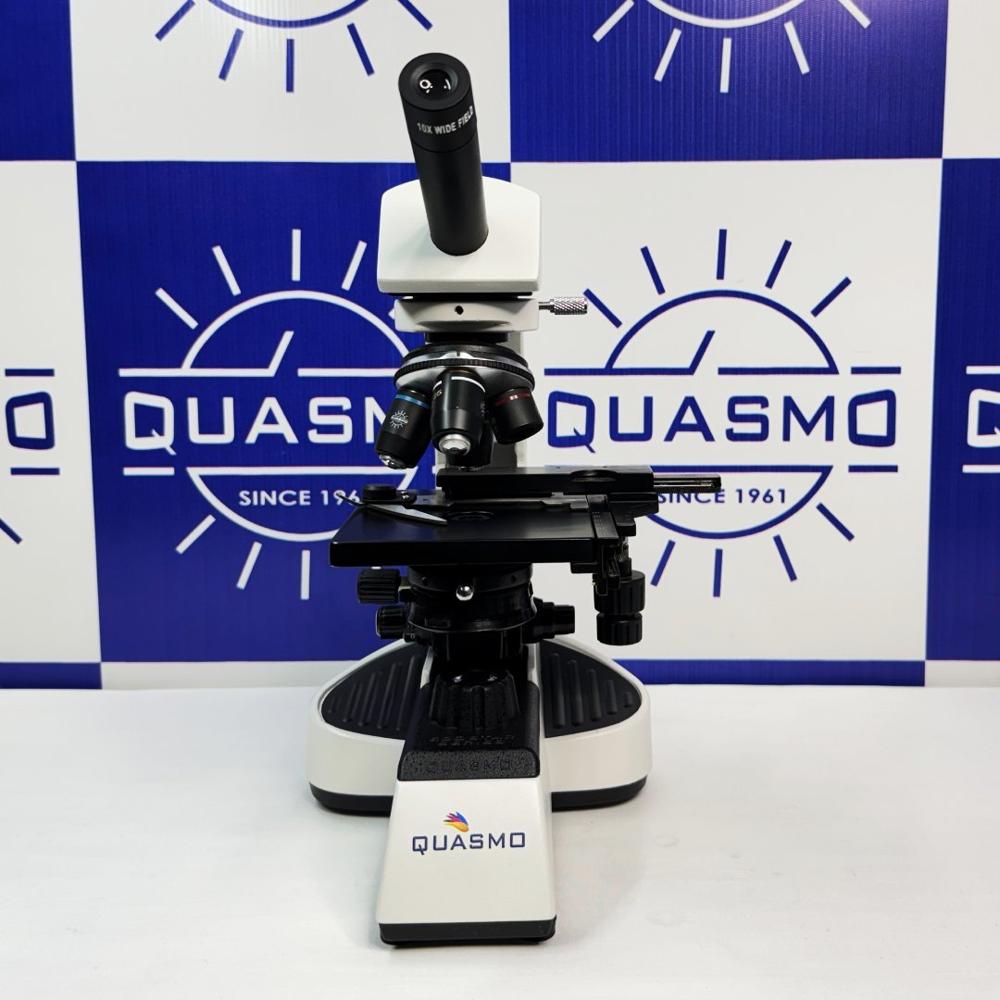

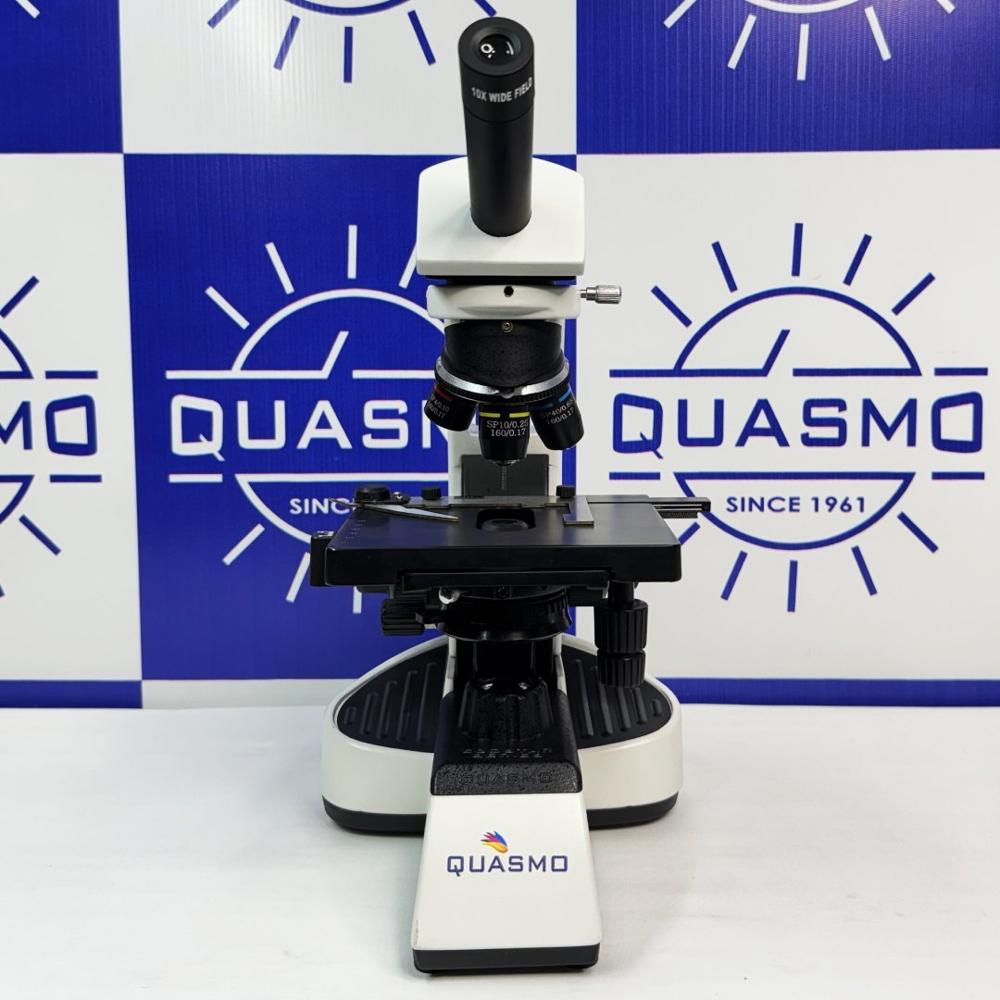

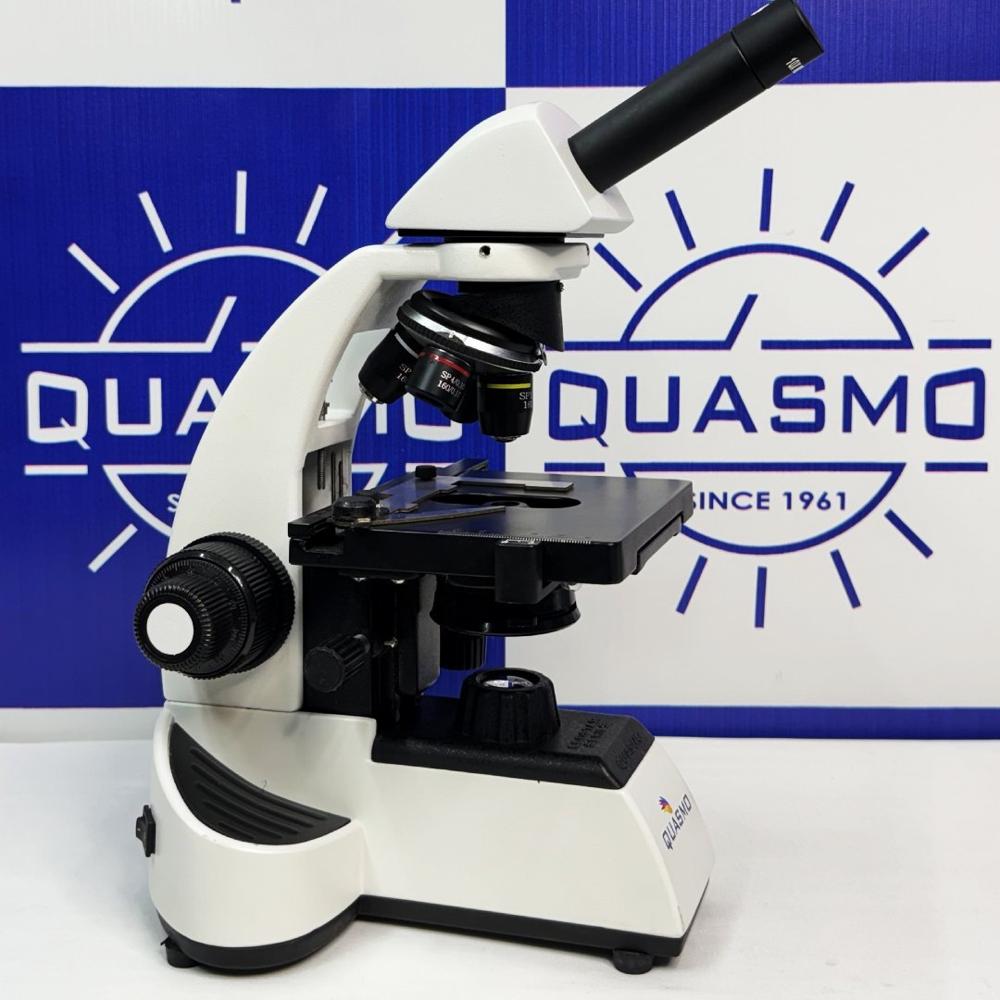

ECO STAR PLUS-M PATHOLOGICAL MONOCULAR MICROSCOPE
- Optical System: Finite Optical System.
- Stand: Aluminium Die-cast Stand (Anti-Rust) Body.
- Viewing Head: Monocular Head 45 Inclined 360 Rotatable, IPD 48-75mm.
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 18mm (Optional 10x/20mm), Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 40x To 1000x.
- Objectives: Semi Plan Achromatic Objective 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage: Double Plate Graduated Stage Size 135mm x 150mm, X/Y Travel Range 80mm X 55mm. Double Specimen Holder Clip.
- Focusing: Co-axial Coarse And Fine Focusing With 0.2mm/rotation.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens, Iris Diaphragm With Frosted White/Blue.
- Illumination: Halogen 6V-20W (Upto 20,000 hours) or 3W LED Light (Up To 100,000 Working hours) with Intensity Controller.
- Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
- Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Robust and Precise Mechanical DesignBuilt on a heavy, anti-vibration base, the ECO STAR PLUS-M Microscope ensures stable operation for high-precision tasks. The mechanical X-Y stage enables smooth, accurate slide movement. Coaxial coarse and fine focusing mechanisms allow for detailed adjustments, supporting educational and laboratory applications alike.
Optical Excellence and Light ControlFeaturing parfocal, anti-reflective coated lenses, and an achromatic objective system, this microscope provides crisp, high-contrast images. The integrated Abbe condenser with an iris diaphragm allows superior light control, while interchangeable LED or halogen illumination delivers consistent, adjustable brightness to match your observation needs.
Comprehensive Accessories IncludedThe package includes an instruction manual, cleaning cloth, dust cover, immersion oil bottle, spare bulb, and safety fuse-ensuring the microscope is ready for immediate use and long-term maintenance. Its durable, powder-coated metal body further enhances longevity and ease of use, making it perfect for continuous educational or laboratory usage.
FAQ's of ECO STAR PLUS-M PATHOLOGICAL MONOCULAR MICROSCOPE:
Q: How does the ECO STAR PLUS-M Microscope provide stable viewing during use?
A: The microscope is designed with a heavy, sturdy base specifically engineered for anti-vibration performance. This ensures that every observation remains stable, even at high magnifications, minimizing disruptions caused by external movement or accidental bumps.
Q: What optical system and magnification range does this microscope offer?
A: It is equipped with parfocal, anti-reflective coated achromatic objectives, supporting a magnification range from 40X up to 1000X depending on the eyepiece and objective combination. This allows users to observe specimens at various detail levels with clarity and minimal optical distortion.
Q: When should I use the included immersion oil with this microscope?
A: The immersion oil is designed for use with the 100X (oil immersion) objective lens. Applying a drop of oil between the slide and the lens increases resolution and brightness when viewing very fine details, essential in pathological examinations.
Q: Where can this microscope be effectively used?
A: This model is ideal for educational institutions, medical training centers, and diagnostic laboratories. Its student-friendly features and robust build make it suitable for classrooms as well as routine laboratory investigations.
Q: What is the process for adjusting focus and stage movement?
A: Focusing is managed with a coaxial coarse and fine focusing system, allowing for smooth and precise adjustments. The mechanical stage offers X-Y controls and double slide holder clips to accurately maneuver and secure slides during observation.
Q: How does the built-in illumination enhance specimen viewing?
A: The microscope incorporates a choice of halogen or LED lighting with adjustable brightness. This ensures consistent and optimal illumination for clear viewing of stained or transparent specimens. The Abbe condenser and iris diaphragm further refine light control, improving image quality.
Q: What are the primary benefits of this microscope's design for users?
A: Users benefit from its durable, student-friendly metal construction, smooth focusing, anti-fungal optics, and easy maintenance. The included accessories and safety features-like the fuse and dust cover-extend the microscope's lifespan and facilitate hassle-free operation.
