Product Description

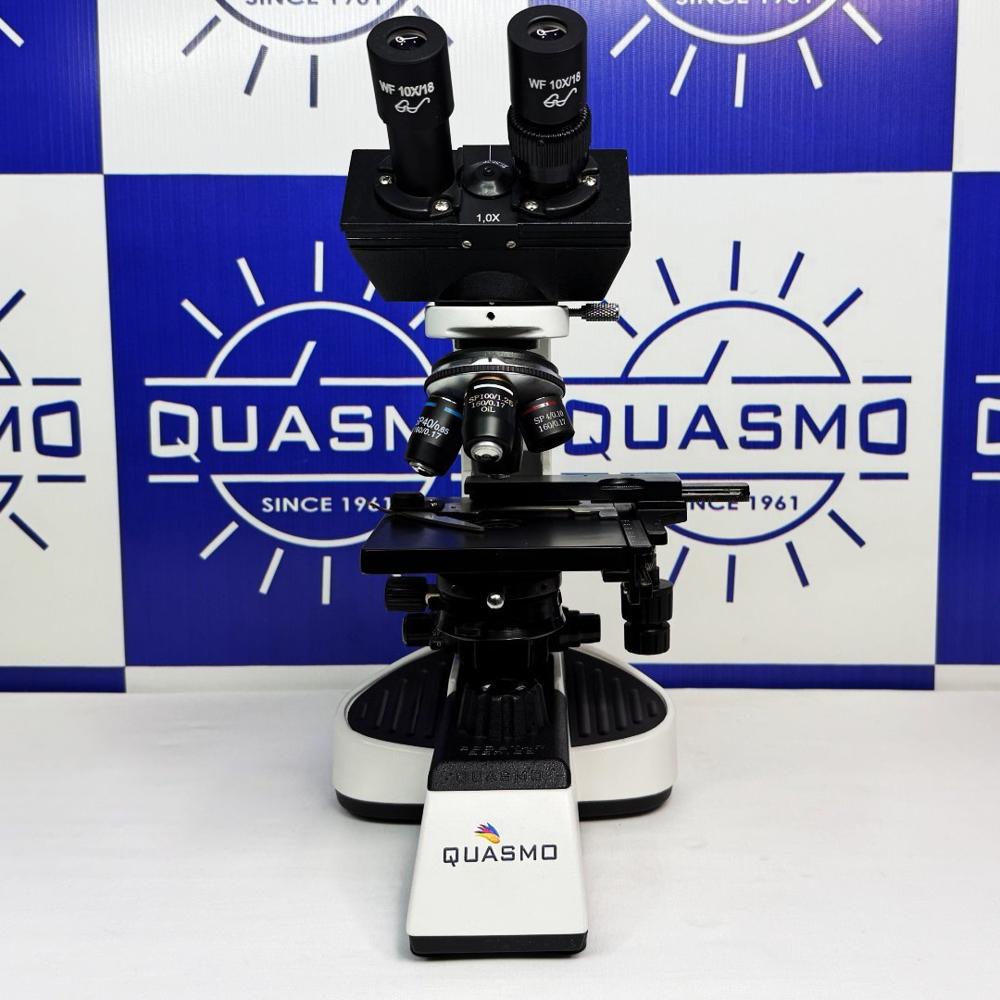

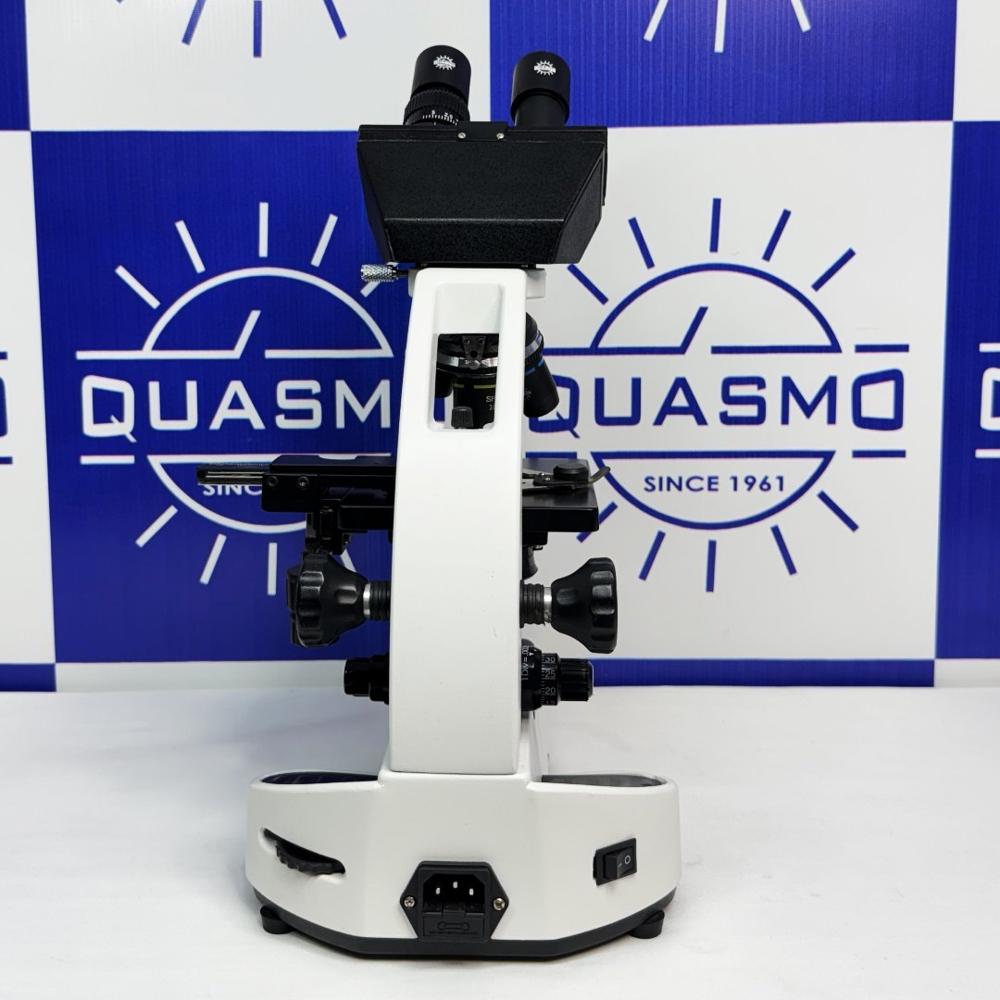

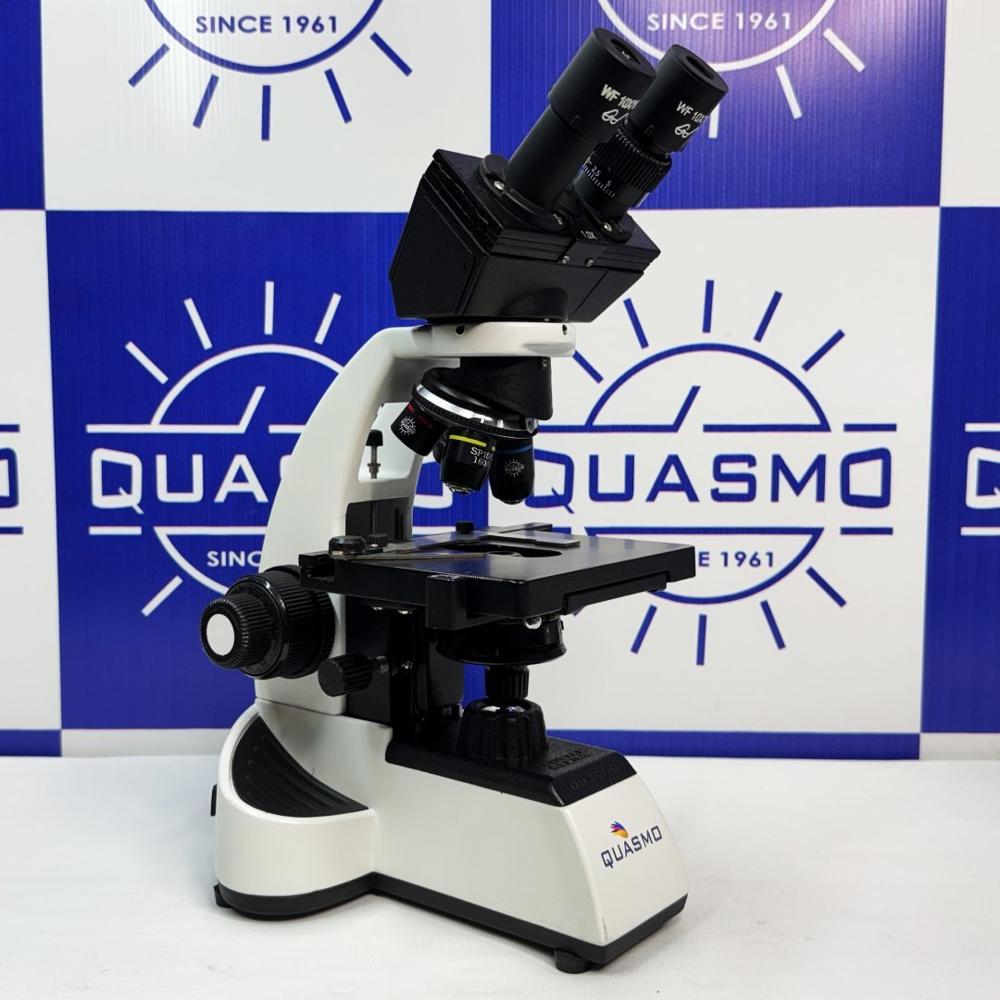

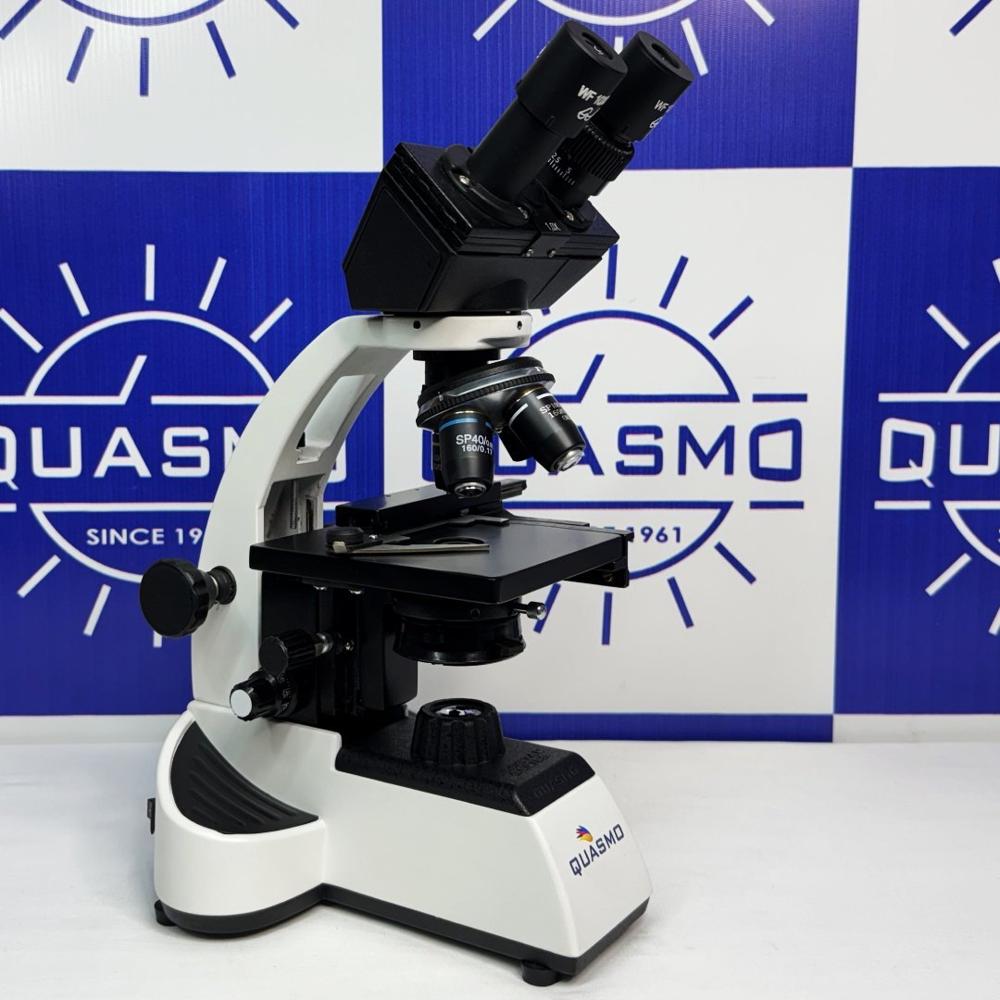

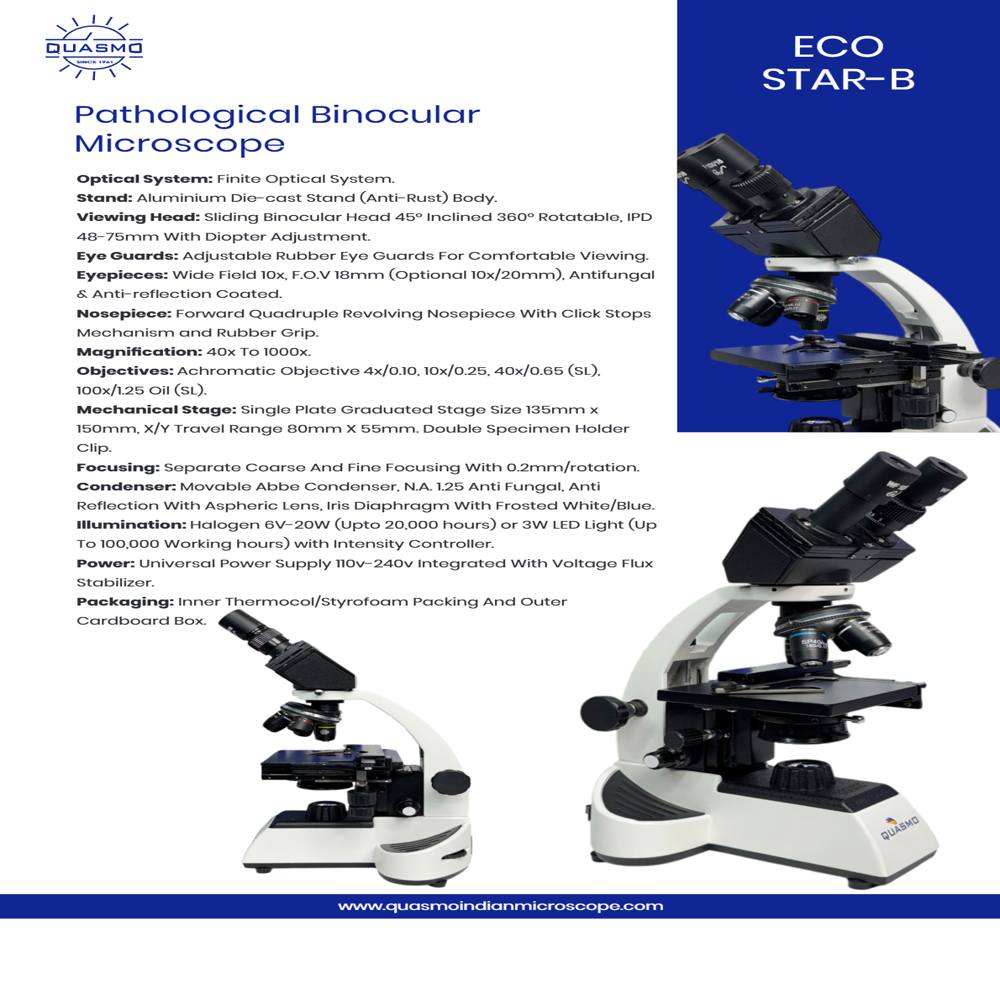

ECO STAR-B PATHOLOGICAL BINOCULAR MICROSCOPE
- Optical System: Finite Optical System
- Stand: Aluminium Die-cast Stand (Anti-Rust) Body.
- Viewing Head: Sliding Binocular Head 45 Inclined 360 Rotatable, IPD 48-75mm With Diopter Adjustment.
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 18mm (Optional 10x/20mm), Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 40x To 1000x.
- Objectives: Achromatic Objective 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage: Single Plate Graduated Stage Size 135mm x 150mm, X/Y Travel Range 80mm X 55mm. Double Specimen Holder Clip.
- Focusing Control: Co-axial Coarse And Fine Focusing With 0.2mm/rotation.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens, Iris Diaphragm With Frosted White/Blue.
- Illumination: Halogen 6V-20W (Upto 20,000 hours) or 3W LED Light (Up To 100,000 Working hours) with Intensity Controller.
- Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
- Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Advanced Pathological MicroscopyDesigned for advanced pathological and laboratory applications, the Eco Star B Binocular Microscope combines high-precision optics with a robust metal body. Its ergonomic binocular view head and wide field eyepieces reduce eye strain and support lengthy observation sessions, making it ideal for professionals and students alike.

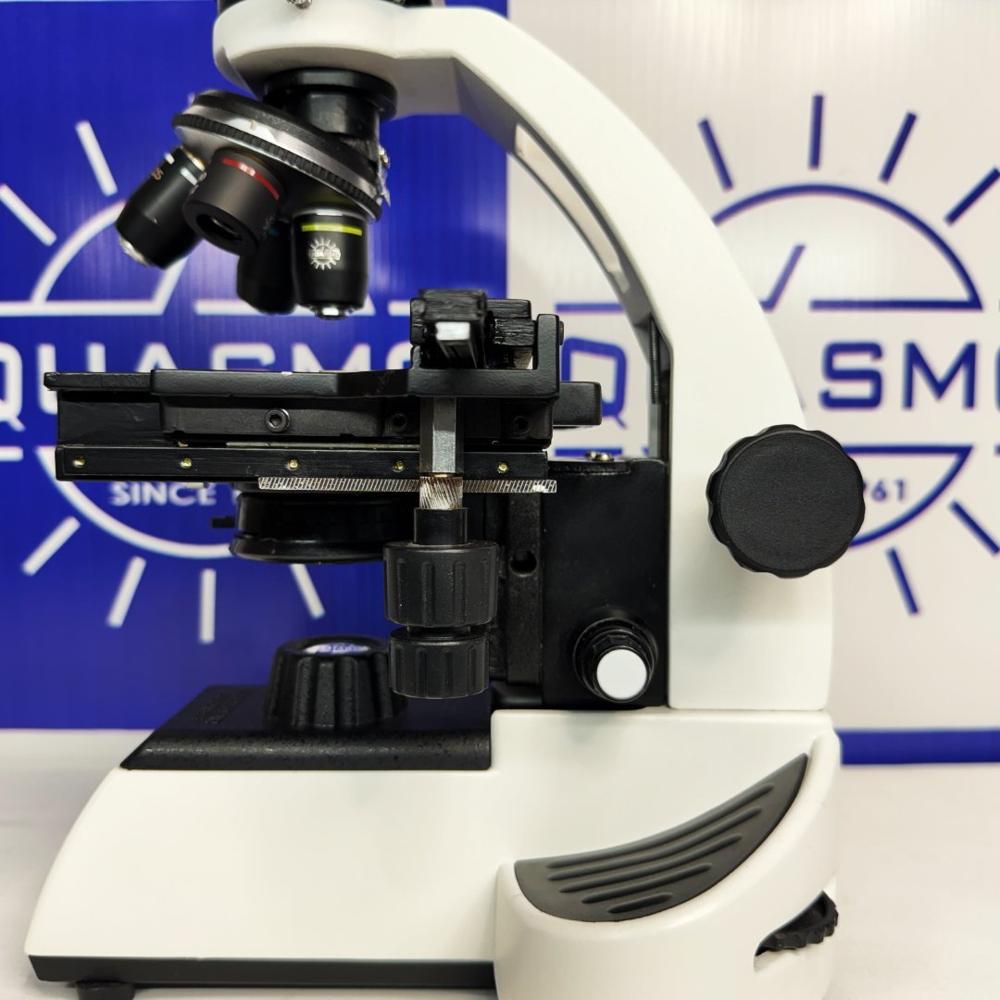

User-Friendly Mechanical StageThe mechanical stage, equipped with dual slide holders and X-Y movement (up to 75 mm x 50 mm), allows seamless and accurate navigation of specimens. Smooth coarse and fine focus adjustments-including a precision of 0.002 mm-enable detailed sample observation at magnifications up to 1000X.
Reliable, Safe, and Durable ConstructionConstructed with a corrosion-resistant metal frame and CE-certified for laboratory safety, this microscope offers resilience and dependability. Anti-vibration rubber feet ensure stability, while anti-fungal optics preserve clarity in demanding environments. Each microscope is supplied with essential spare parts for uninterrupted operation.
FAQ's of Eco Star B Pathological Binocular Microscope:
Q: How do I use the mechanical X-Y stage for precise specimen movement?
A: The mechanical X-Y stage allows you to smoothly control slide position using two control knobs. With a movement range of 75 mm x 50 mm, it ensures accurate navigation and placement of specimens, which is especially helpful at higher magnifications.
Q: What are the benefits of the quadruple revolving nosepiece?
A: The quadruple nosepiece enables quick switching between four objective lenses (4x, 10x, 40x(S), 100x(S, oil immersion)), providing flexibility in magnification and seamless workflow during detailed observations.
Q: When should I use oil immersion with the 100x objective?
A: Use oil immersion with the supplied immersion oil and 100x(S) objective when observing extremely fine details, such as bacteria or cellular structures. The oil enhances image clarity and resolution at such high magnifications.
Q: Where can this microscope be effectively used?
A: The Eco Star B Binocular Microscope is ideal for laboratories in educational institutions, hospitals, and research facilities, supporting both advanced pathological analysis and general biological study.
Q: What is the process for adjusting interpupillary distance and diopter?
A: Adjust the interpupillary distance by moving the two eyepiece tubes closer or farther apart to match your eyes. Fine-tune clarity for individual eye strength using the diopter adjustment ring on the left eyepiece, ensuring a sharp, comfortable image.
Q: How does LED illumination enhance specimen viewing?
A: Built-in LED illumination provides bright, evenly distributed light with adjustable intensity. The sub-stage condenser and iris diaphragm help focus the light onto the specimen, improving contrast and detail during observation.
Q: What spare parts come with the microscope for maintenance?
A: Each unit comes with a dust cover, immersion oil, spare bulb or LED, fuse, and Allen key. These accessories ensure easy maintenance and uninterrupted operation.
