Product Description

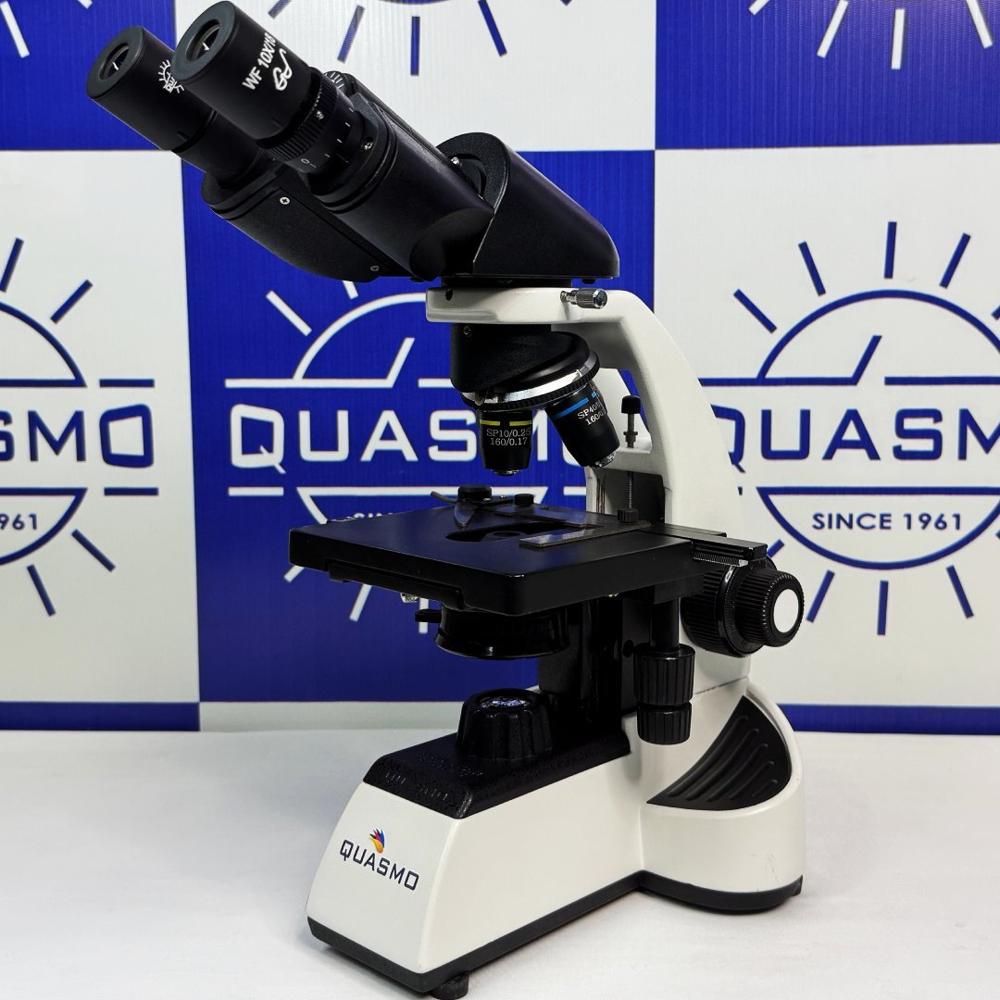

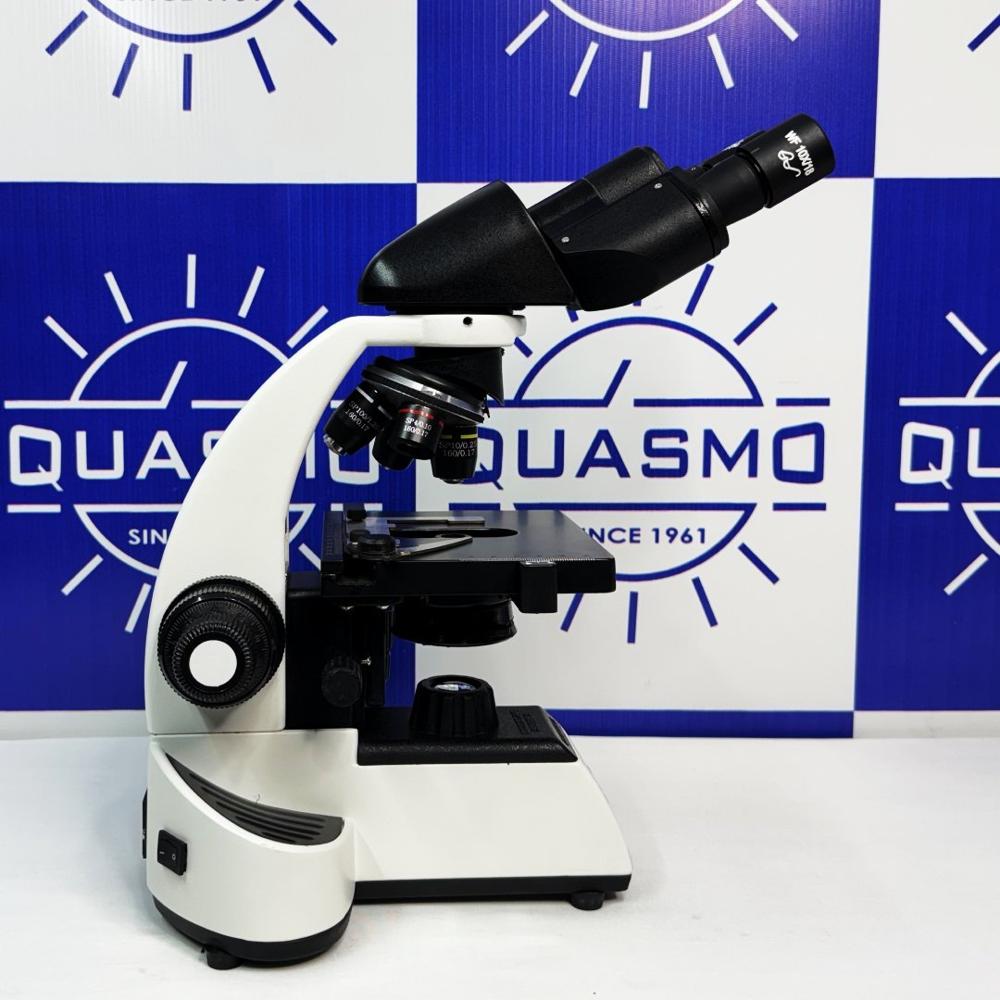

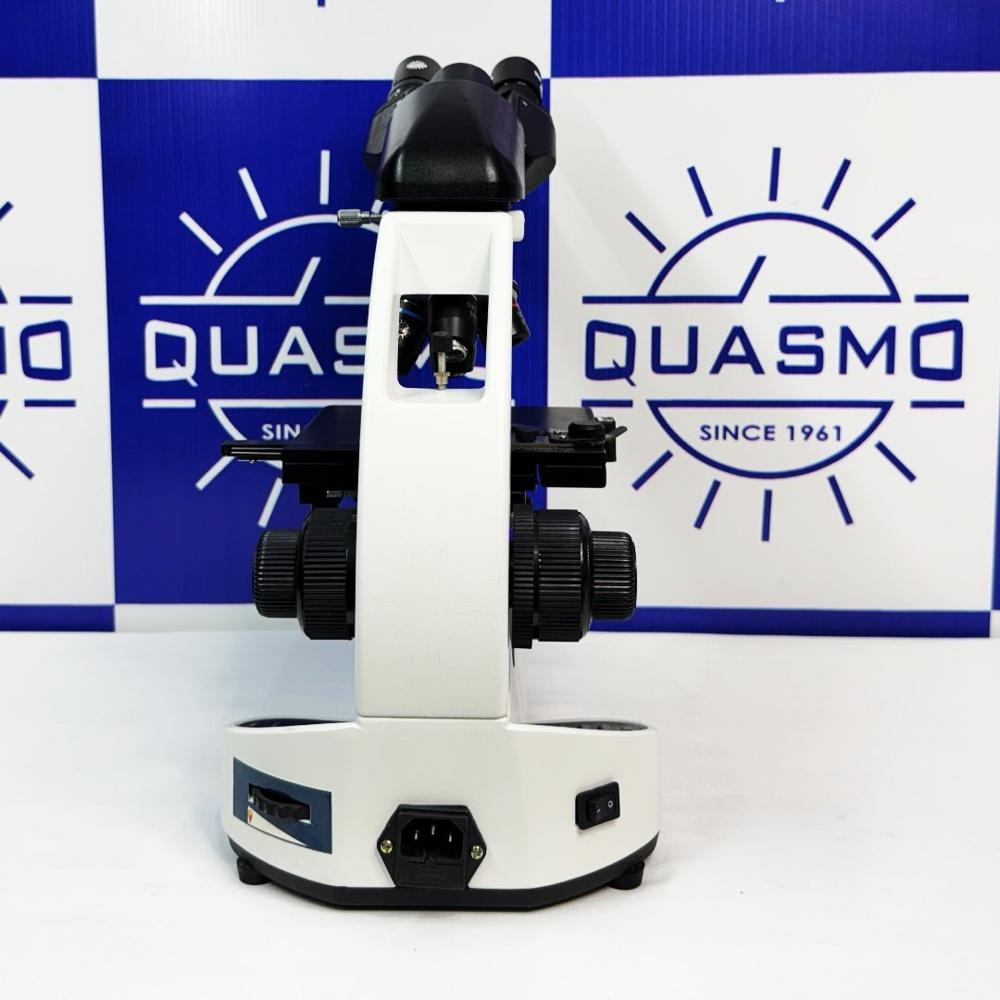

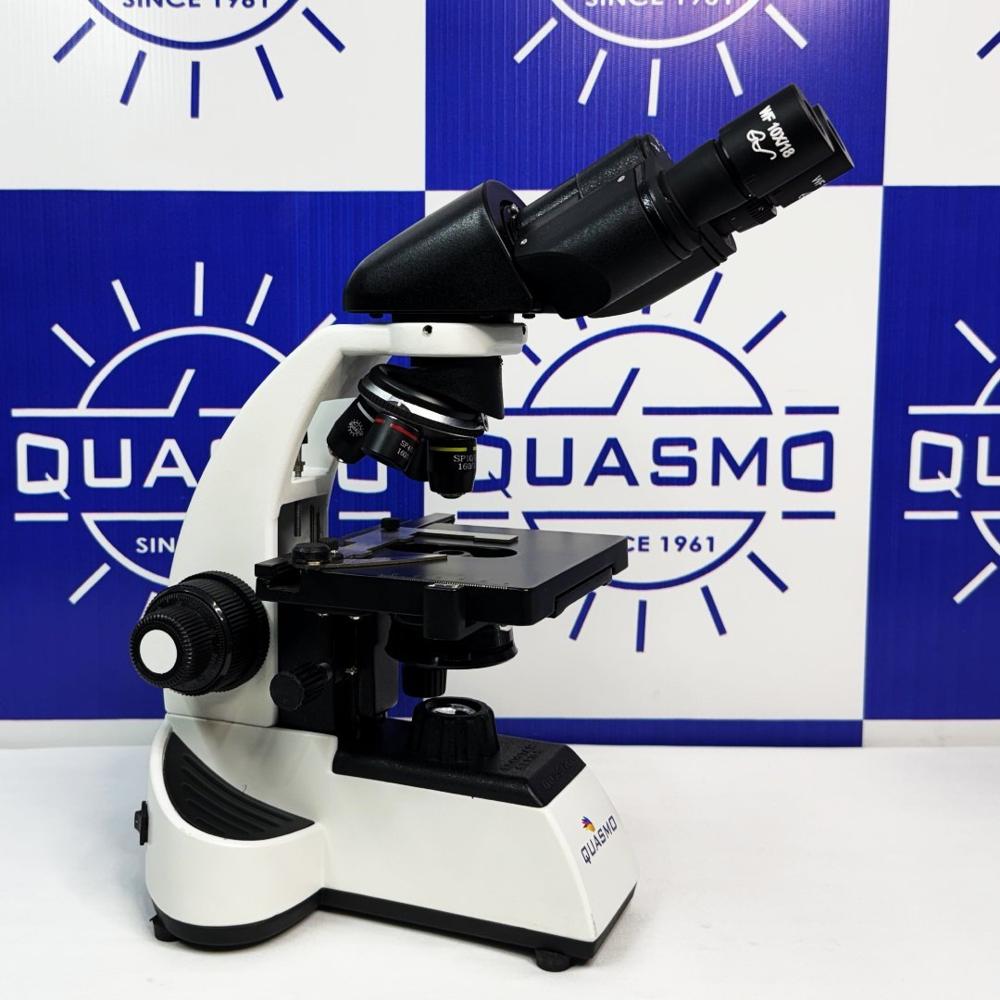

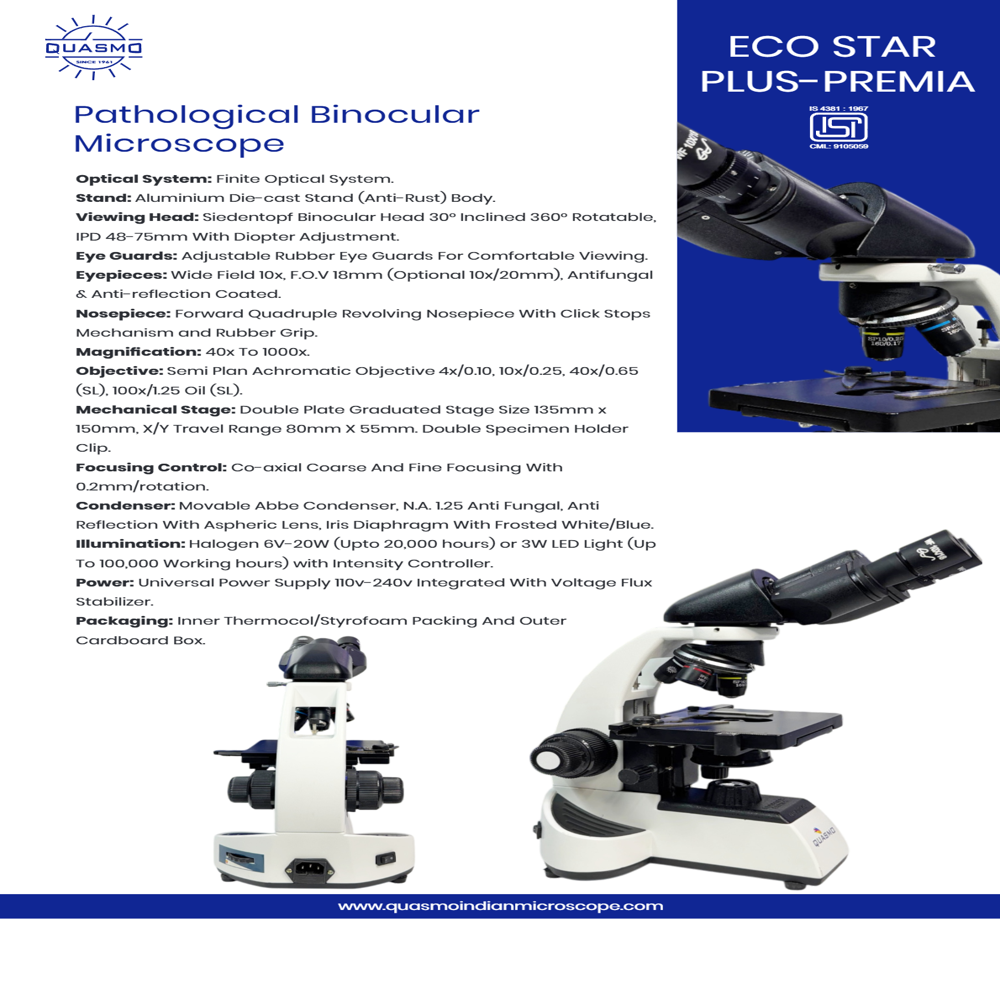

ECO STAR PLUS-PREMIA PATHOLOGICAL BINOCULAR MICROSCOPE
- Optical System: Finite Optical System.
- Stand: Aluminium Die-cast Stand (Anti-Rust) Body.
- Viewing Head: Siedentopf Binocular Head 30 Inclined 360 Rotatable,IPD 48-75mm With Diopter Adjustment.
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 18mm (Optional 10x/20mm), Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 40x To 1000x.
- Objective: Semi Plan Achromatic Objective 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage: Double Plate Graduated Stage Size 135mm x 150mm, X/Y Travel Range 80mm X 55mm. Double Specimen Holder Clip.
- Focusing Control: Co-axial Coarse And Fine Focusing With 0.2mm/rotation.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens, Iris Diaphragm With Frosted White/Blue.
- Illumination: Halogen 6V-20W (Upto 20,000 hours) or 3W LED Light (Up To 100,000 Working hours) with Intensity Controller.
- Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
- Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Precision Optics for Reliable ResultsThis microscope is equipped with high-resolution achromatic objectives and anti-mold treated optics, ensuring clear, distortion-free images. The optics support magnification from 40x up to 1000x, perfect for pathology and research applications requiring precise observation and image fidelity.
Ergonomic and Flexible DesignThe instrument features an ergonomically inclined, 360 rotatable binocular head, interpupillary adjustment, and smooth, coaxial coarse and fine focusing. Its double-layer mechanical stage, vernier rulers, and filter holder for included blue, green, and yellow filters provide comfort and flexibility during extended sessions.
Built for Demanding EnvironmentsConstructed from rugged, powder-coated metal alloy, the ECO STAR PLUS microscope withstands rigorous daily use. Anti-fungal optics and included accessories, such as spare fuses, bulbs, and dust cover, further secure long-term reliability in laboratories and educational institutions.
FAQ's of ECO STAR PLUS -PREMIA PATHOLOGICAL BINOCULAR MICROSCOPE:
Q: How do I adjust the focus on the ECO STAR PLUS - PREMIA microscope?
A: This microscope features coaxial coarse and fine focus knobs with a long adjustment travel, enabling precise control. Fine adjustment is accurate to 0.002mm, allowing detailed observation at various magnifications.
Q: What is the process for attaching a camera to the ECO STAR PLUS microscope?
A: While it is primarily an optical microscope, the binocular eyepiece tube supports optional camera attachments. Simply mount a compatible camera to the standard eyepiece tube interface for still image or video capture to record your observations.
Q: When should I use the different stage filters (blue, green, yellow)?
A: Stage filters are used to enhance contrast during specimen observation. Blue filters improve resolution with shorter wavelengths, green filters help with finer grain details, and yellow filters can be useful in reducing eye strain during prolonged viewing sessions.
Q: Where can this microscope be effectively utilized?
A: The ECO STAR PLUS - PREMIA microscope is ideal for pathology laboratories, research institutes, educational settings, and clinical research facilities due to its optical precision, robust construction, and ergonomic design.
Q: What benefits does the anti-fungal/anti-mold optical treatment provide?
A: All optical components are treated to resist mold and fungus, which is essential for maintaining clarity and prolonging the life of the microscope in humid or high-use environments.
Q: How does the built-in LED illumination enhance usage?
A: The integrated 3W LED illumination system offers adjustable intensity, delivering bright, consistent lighting for comfortable and accurate specimen examination across a range of magnifications.
