Product Description

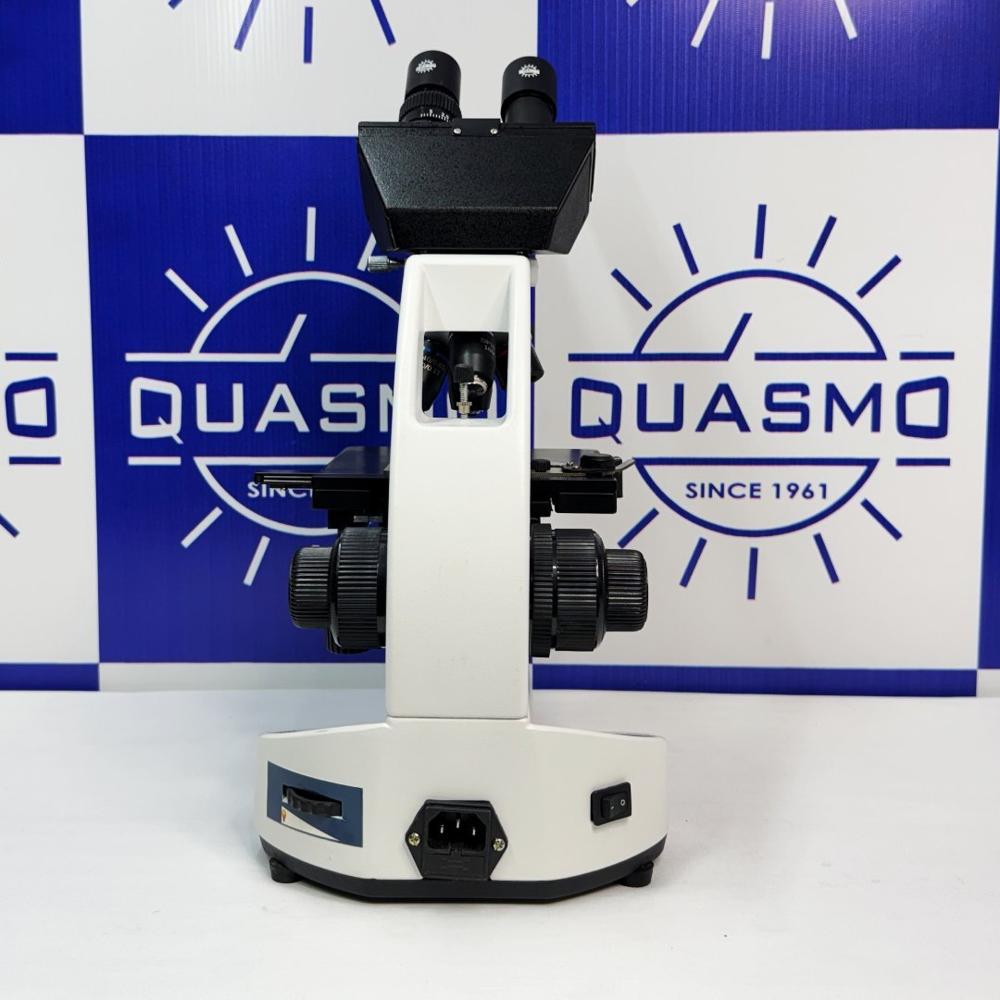

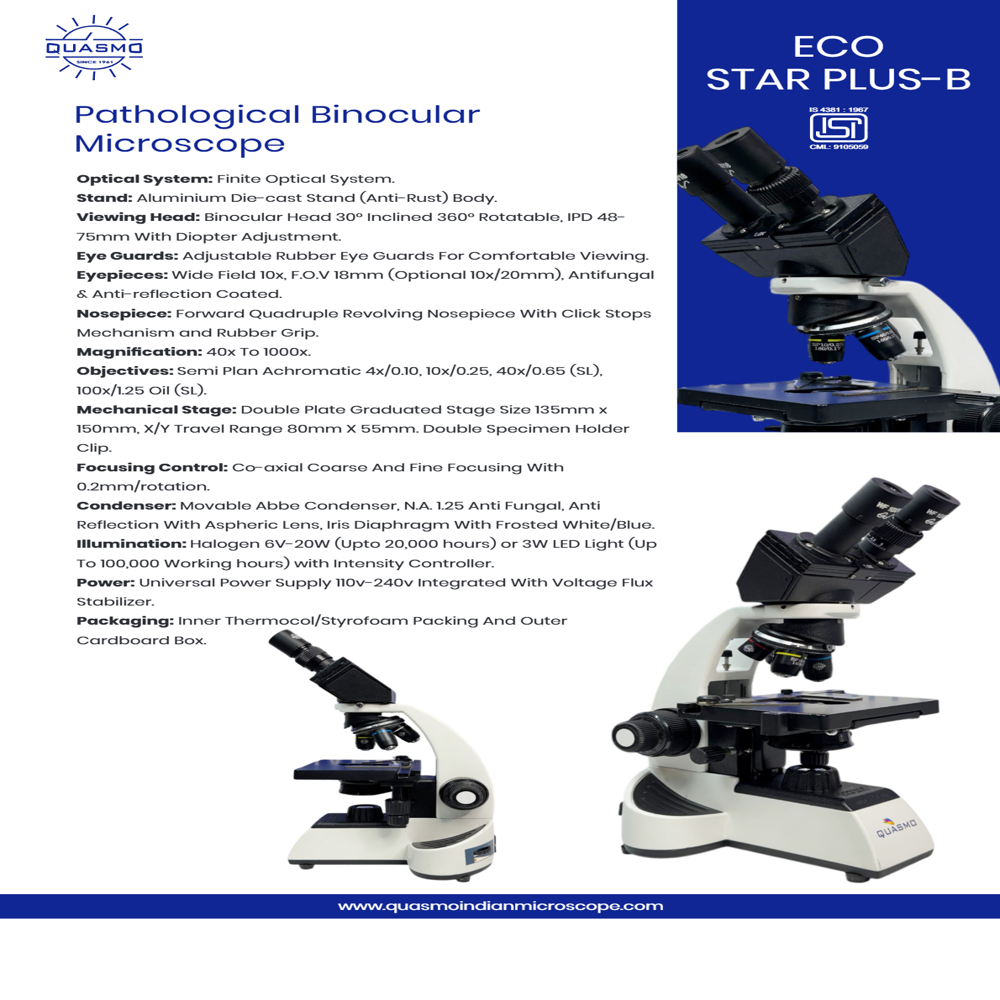

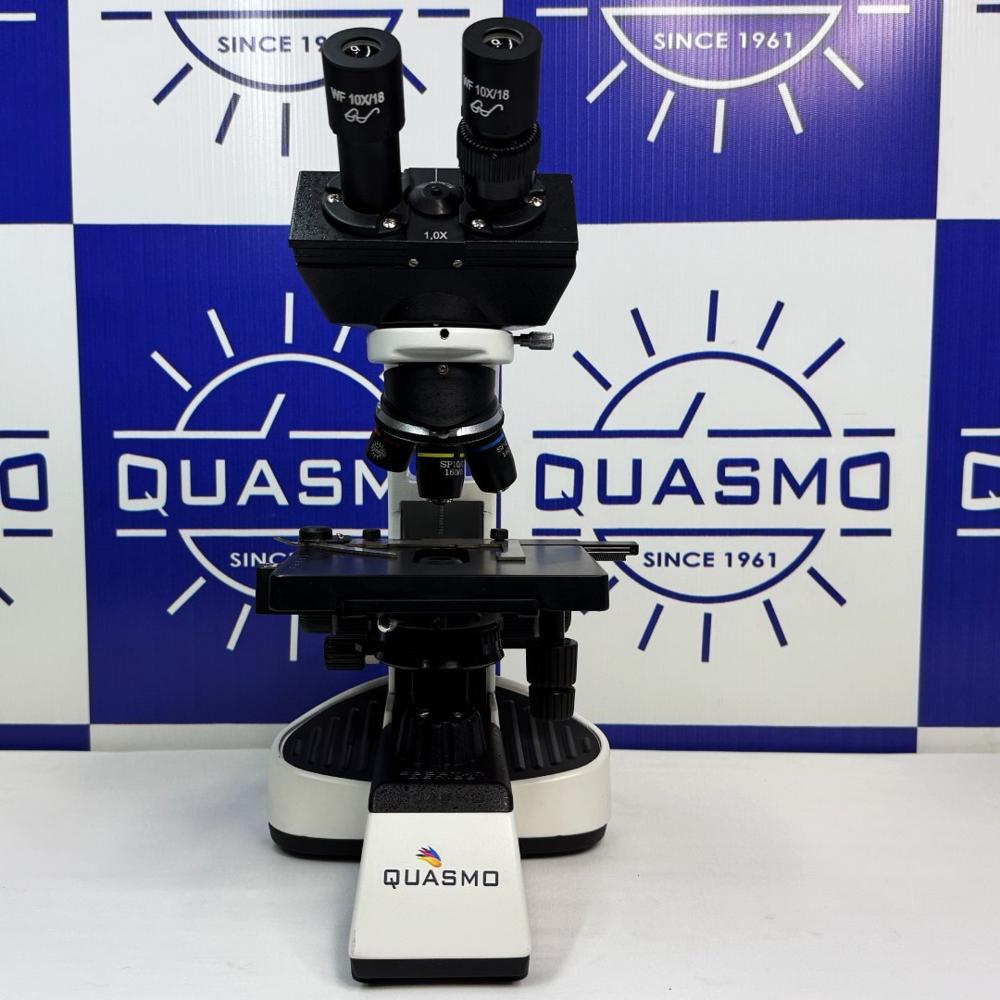

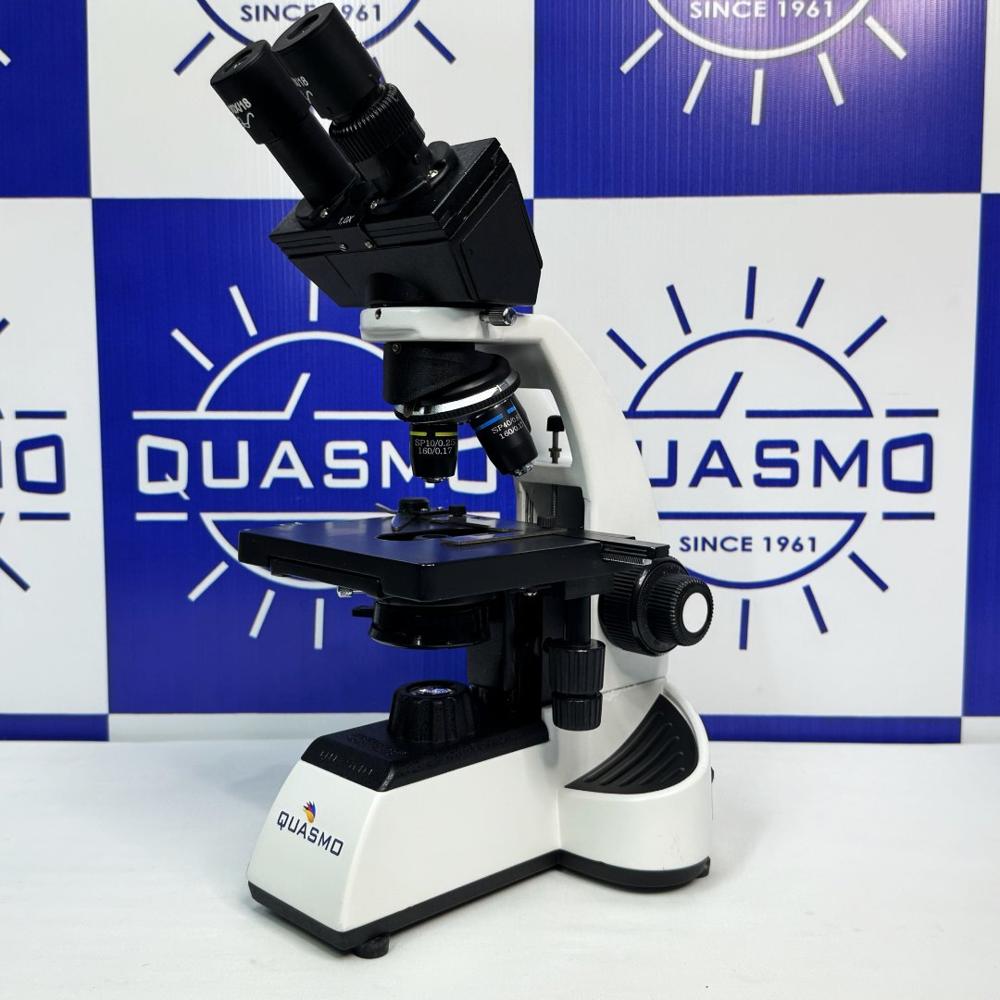

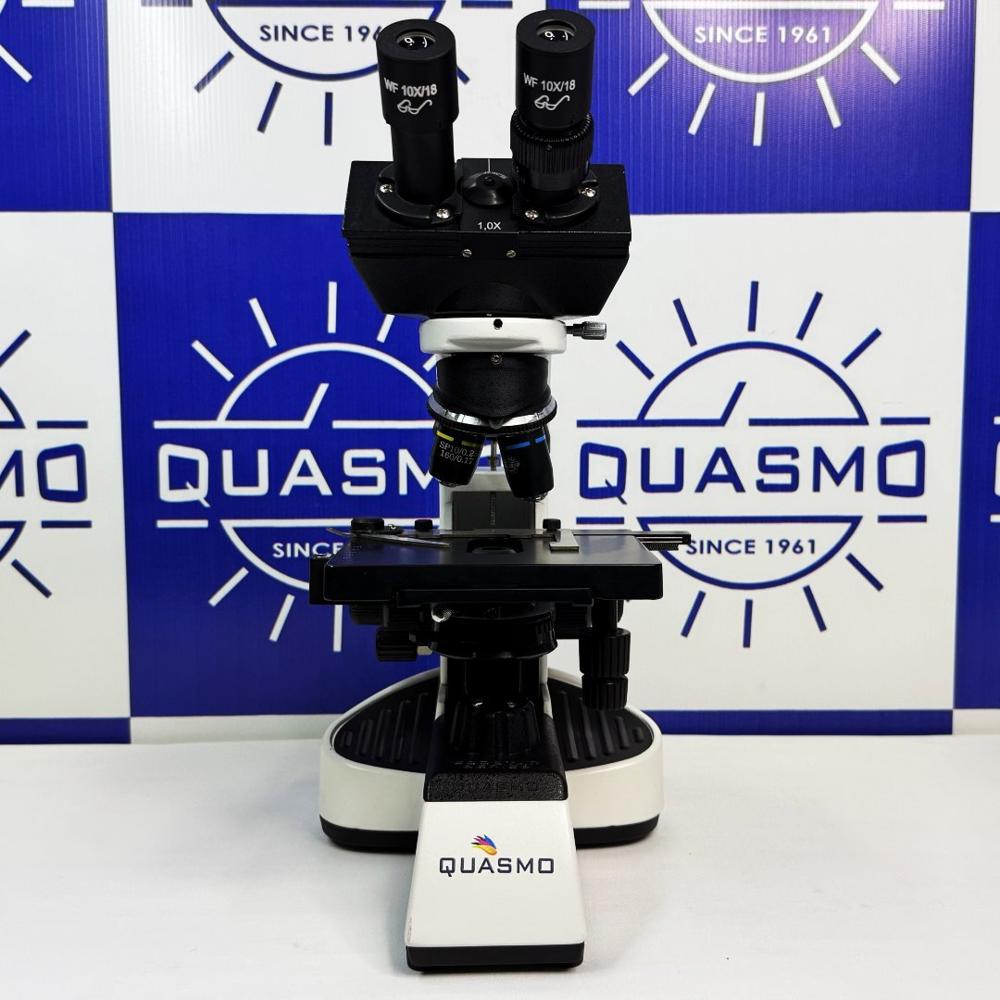

- ECO STAR PLUS-B PATHOLOGICAL BINOCULAR MICROSCOPE
- Optical System:Finite Optical System
- Stand:Aluminium Die-cast Stand (Anti-Rust) Body.
- Viewing Head:Binocular Head 30 Inclined 360 Rotatable, IPD 48-75mm With Diopter Adjustment.
- Eye Guards:Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces:Wide Field 10x, F.O.V 18mm (Optional 10x/20mm), Antifungal & Anti-reflection Coated.
- Nosepiece:Forward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification:40x To 1000x.
- Objectives:Semi Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage:Double Plate Graduated Stage Size 135mm x 150mm, X/Y Travel Range 80mm X 55mm. Double Specimen Holder Clip.
- Focusing Control: Co-axial Coarse And Fine Focusing With 0.2mm/rotation.
- Condenser:Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens, Iris Diaphragm With Frosted White/Blue.
- Illumination:Halogen 6V-20W (Upto 20,000 hours) or 3W LED Light (Up To 100,000 Working hours) with Intensity Controller.
- Power:Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
- Packaging:Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Precision Optics and Ergonomic DesignThe Eco Star Plus B integrates anti-reflection, achromatic objectives and anti-fungal-treated, wide-field optics for high-clarity, dustproof imaging. Its ergonomic 45 inclined binocular head reduces strain, while adjustable interpupillary distance and diopter ensure a personalized viewing experience for all users during extended observation sessions.
Reliable and Stable Laboratory PerformanceBuilt around a heavy, vibration-free box-type base, this microscope ensures stable operation even during high-magnification work. The smooth, low-positioned mechanical stage controls and precise focusing system allow for effortless and accurate sample navigation, making it dependable for routine clinical and pathological laboratory use.
Secure, Shockproof Transport and SetupSupplied in a sturdy, shockproof case, the microscope is well-protected during shipping and relocation. Its robust all-metal body and precision engineering guard against wear and vibration, ensuring durability and reliable performance in demanding laboratory environments.
FAQ's of Eco Star Plus B Pathological Binocular Microscope:
Q: How is the specimen stage moved and positioned on the Eco Star Plus B microscope?
A: The stage utilizes a precision coaxial X-Y mechanical system with low-positioned controls, enabling effortless movement and accurate positioning of slides. The mechanical stage measures approximately 125 mm x 115 mm with a travel range of 70 mm x 30 mm, making it highly suitable for microscopic examination tasks.
Q: What is the magnification range and optical quality offered by this microscope?
A: The Eco Star Plus B provides a magnification range from 40X to 1000X using its achromatic objectives (4X, 10X, 40X (S), and 100X Oil (S)) and wide field 10X paired eyepieces. The optics feature anti-reflection coatings and are dustproof and anti-fungal treated for lasting clarity and reliability.
Q: When should I use diopter adjustment and what does it do?
A: The diopter adjustment, available on the left eyepiece, is used to fine-tune the focus for individual eyesight differences between your eyes. Adjust it whenever you start a session or if users with different vision requirements share the microscope for sharp, comfortable viewing.
Q: Where is the microscope best suited for use?
A: This microscope is designed for laboratory and clinical environments, including medical, pathological, and research facilities. Its robust construction, ergonomic design, and stable operation make it ideal for routine and critical observation tasks in such settings.
Q: What is the benefit of the anti-bacterial, powder-coated finish?
A: The anti-bacterial, powder-coated finish not only gives a durable and easy-to-clean exterior but also contributes to a more hygienic laboratory environment, which is crucial for clinical and pathological applications.
Q: How do I adjust the illumination and what options are available?
A: The built-in illumination system uses either a variable LED or halogen lamp. Brightness can be easily adjusted to suit various sample types and observation needs, ensuring optimal contrast and detail during use.
Q: What spare parts or accessories are included with the microscope?
A: Each unit comes supplied with a spare bulb, a fuse, a dust cover, and immersion oil. These essentials support uninterrupted use and maintenance, helping you maintain optimal performance and longevity of the instrument.
