Product Description

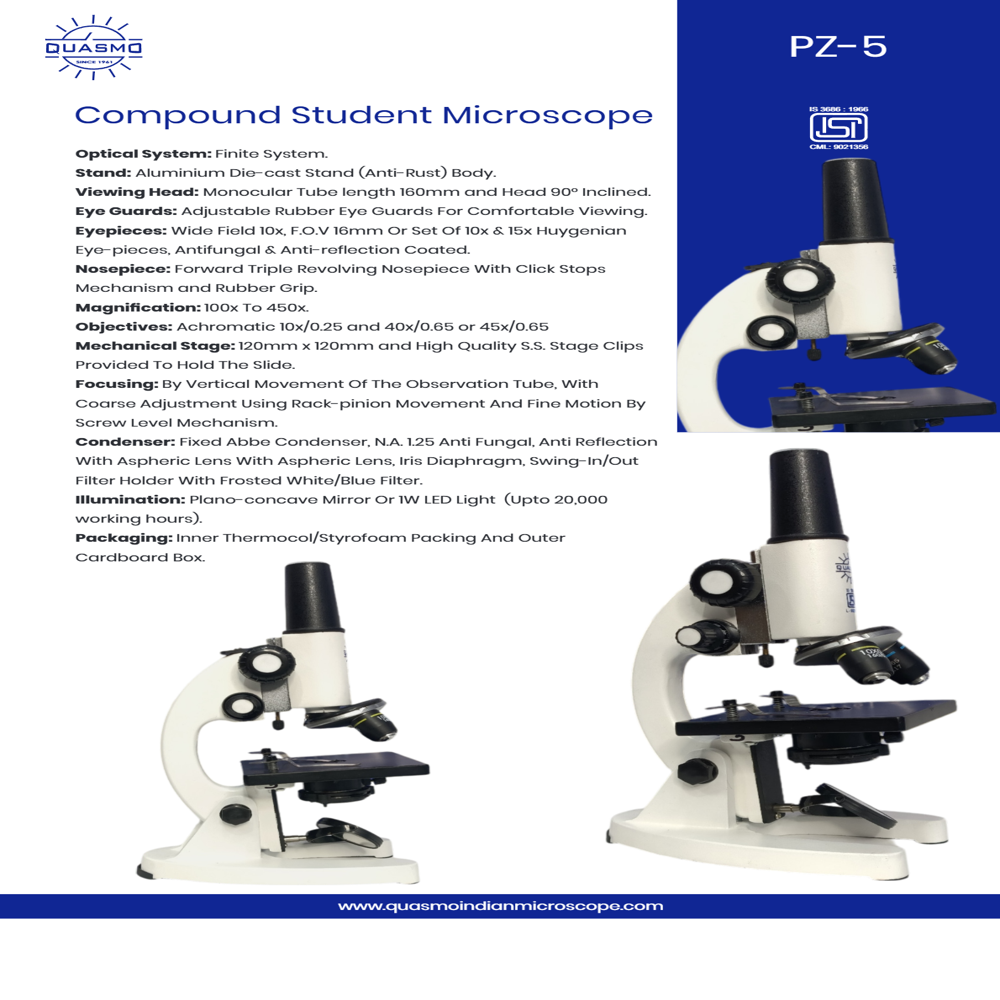

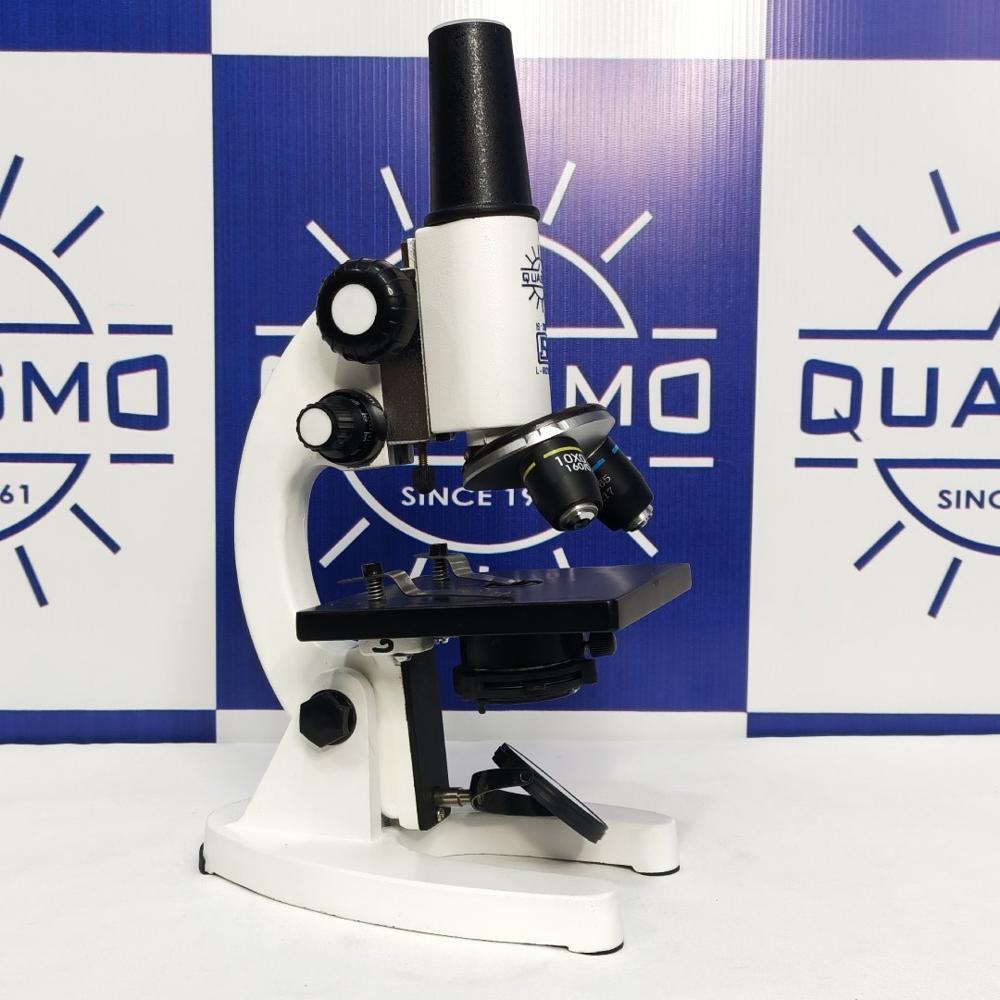

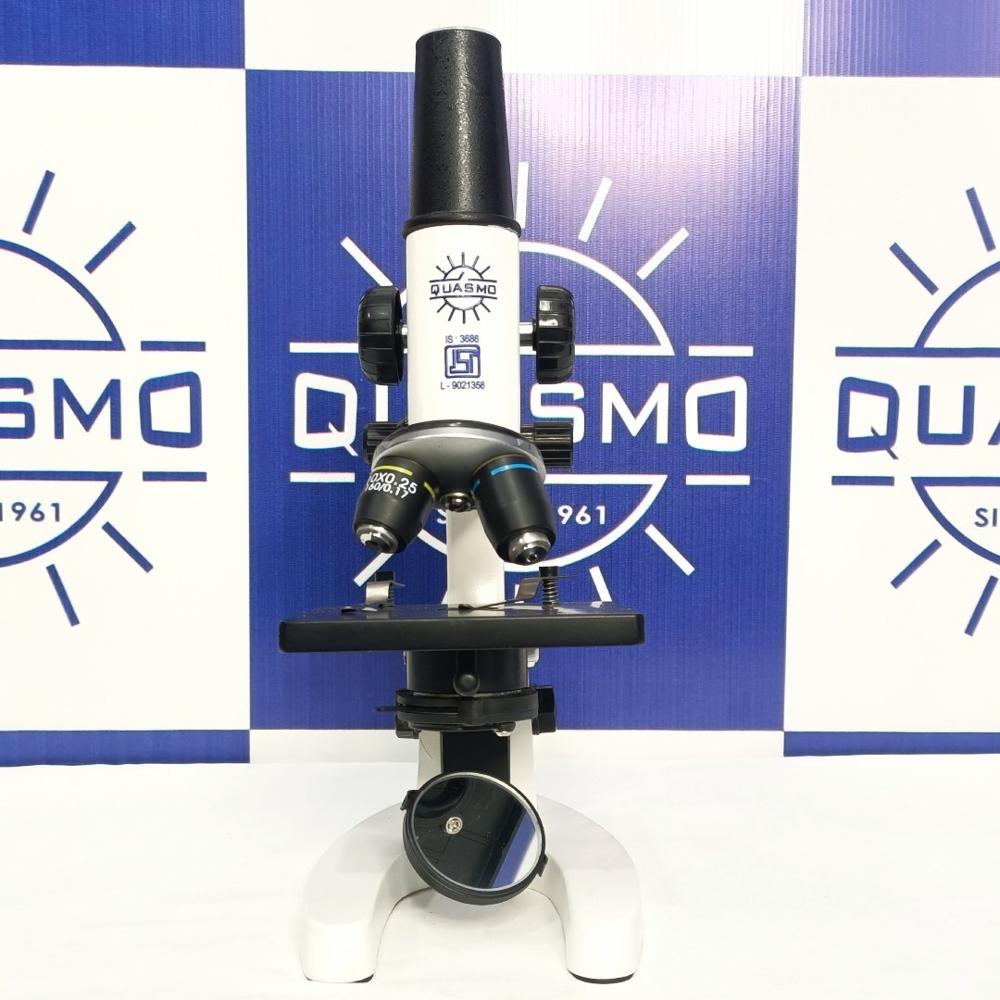

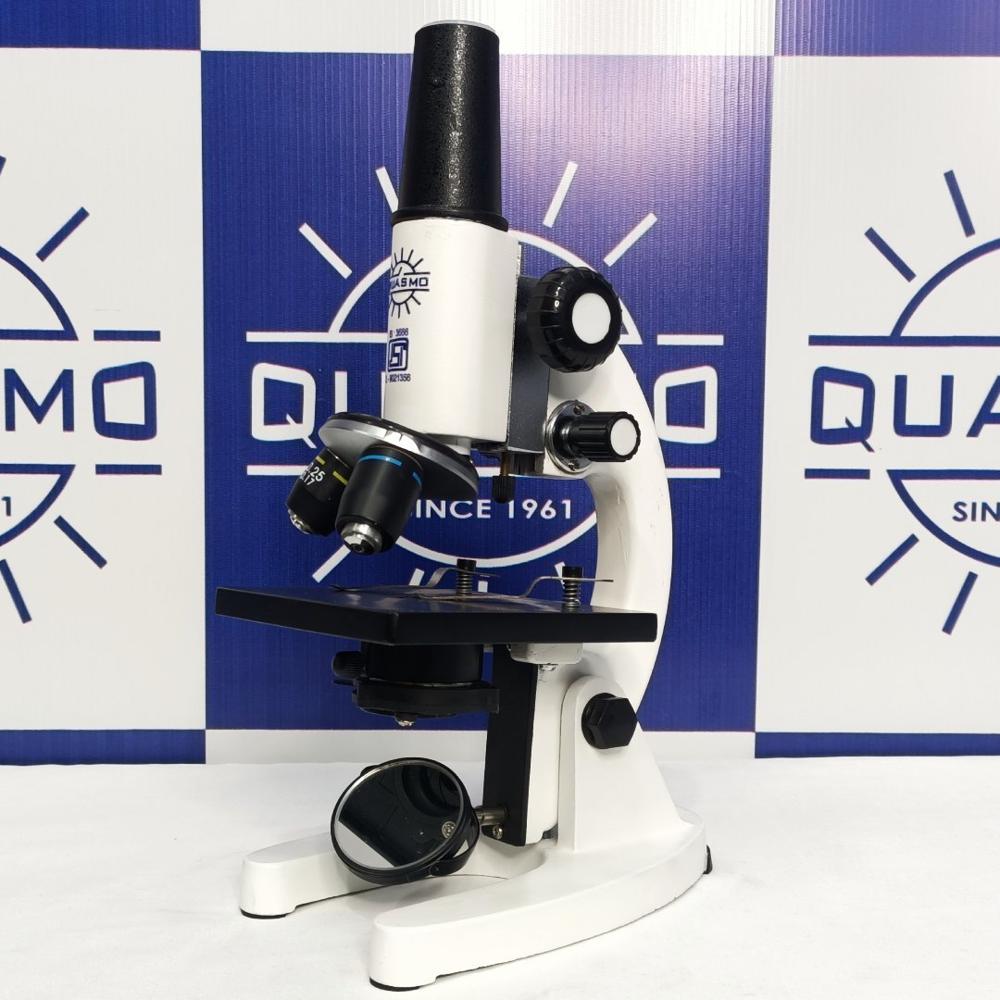

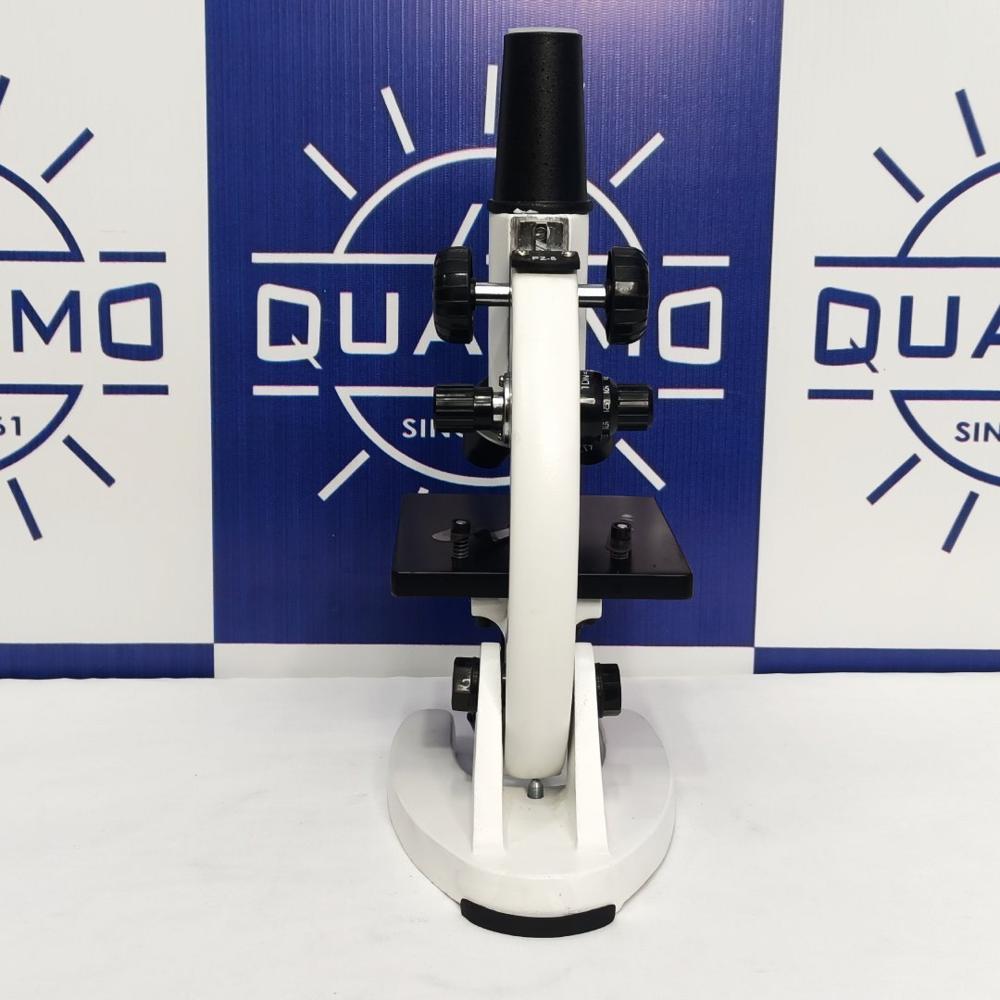

- PZ-5 COMPOUND STUDENT MICROSCOPE
- Optical System: Finite System.
- Stand: Aluminium Die-cast Stand (Anti-Rust) Body
- Viewing Head: Monocular Tube length 160mm and Head 90 Inclined.
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 16mm Or Set Of 10x & 15x Huygenian Eye-pieces, Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Triple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 100x To 450x.
- Objectives: Achromatic 10x/0.25 and 40x/0.65 or 45x/0.65
- Mechanical Stage: 120mm x 120mm and High Quality S.S. Stage Clips Provided To Hold The Slide.
- Focusing: By Vertical Movement Of The Observation Tube, With Coarse Adjustment Using Rack-pinion Movement And Fine Motion By Screw Level Mechanism.
- Condenser: Fixed Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens With Aspheric Lens, Iris Diaphragm, Swing-In/Out Filter Holder With Frosted White/Blue Filter.
- Illumination: Plano-concave Mirror Or 1W LED Light (Upto 20,000 working hours).
- Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Rugged and Student-Friendly DesignCrafted with a die-cast heavy base and scratch-resistant enamel coating, the PZ-5 microscope provides stability and endurance, making it suitable for rigorous classroom and laboratory use. Its lightweight build and intuitive controls support ease of use for students, all while ensuring minimal maintenance and durability over time.
Flexible Observation and Accurate FocusWith a monocular, 360 rotatable head, students can achieve comfortable viewing positions during extended sessions. The microscope is equipped with both coarse and fine focus knobs, facilitating rapid adjustments and precision tuning to bring specimens into sharp, detailed focus for enhanced study outcomes.
Versatile Magnification and IlluminationThe PZ-5 offers magnifications of 100x, 200x, and 450x, easily switchable through different combinations of objectives and eyepieces. Its mirror-based light source reflects natural or artificial light, ensuring clear visibility in varied environments, so students can observe cellular structures and biological samples at multiple detail levels.
FAQs of PZ-5 COMPOUND STUDENT MICROSCOPE:
Q: How do I adjust the magnification on the PZ-5 Compound Student Microscope?
A: You can change magnification by rotating the triple nosepiece to select the desired objective (10x or 45x) and switching between the two supplied eyepieces (5x and 10x), achieving up to 100x, 200x, or 450x magnification.
Q: What is the recommended process for focusing a specimen?
A: Start by using the coarse focus knob for rapid adjustment, bringing the specimen into general view. Then, switch to the fine focus knob to gently fine-tune the image until you achieve optimal clarity.
Q: When should I use a mirror for illumination, and how does it work?
A: The plano-concave mirror should be used when you have access to either daylight or an artificial light source. Position the mirror to direct light through the condenser and onto your specimen for clear observation.
Q: Where can I use the PZ-5 Student Microscope effectively?
A: This microscope is ideal for school biology classrooms, laboratory practicals, and basic research settings where hands-on observation is essential for learning and experimentation.
Q: What benefits does the die-cast heavy base and metal construction offer?
A: The die-cast base and metal body deliver stability and resilience, preventing unwanted movement during use and ensuring the microscope withstands frequent handling by students.
Q: How is the microscope packaged and what accessories are included?
A: Each PZ-5 microscope is supplied in a protective polystyrene box or wooden case and comes with two eyepieces, slide retaining clips, and replacement options for eyepieces, objectives, and mirrors.
Q: What should I do if I need spare parts for the microscope?
A: Replacement components like eyepieces, objectives, and mirrors are readily available. Consult the supplier or manufacturer for compatible spare parts tailored for the PZ-5 model.
