Product Description

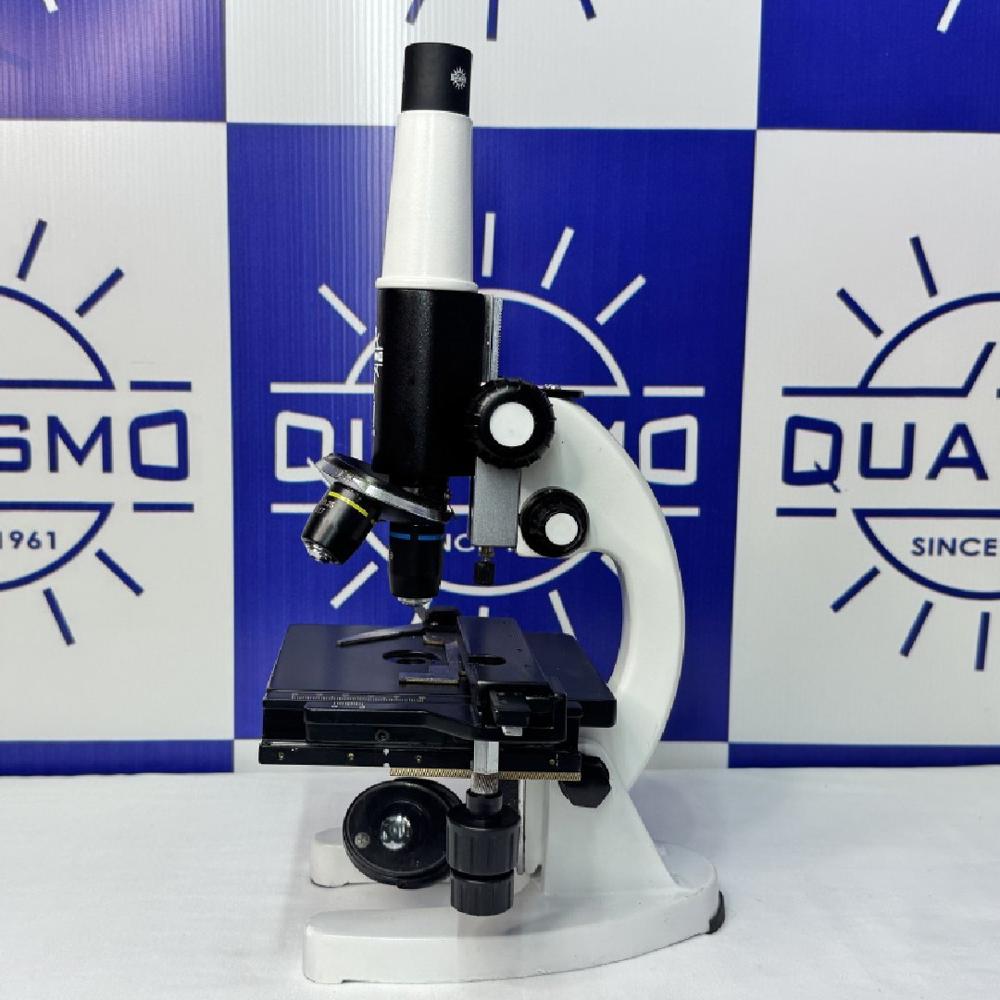

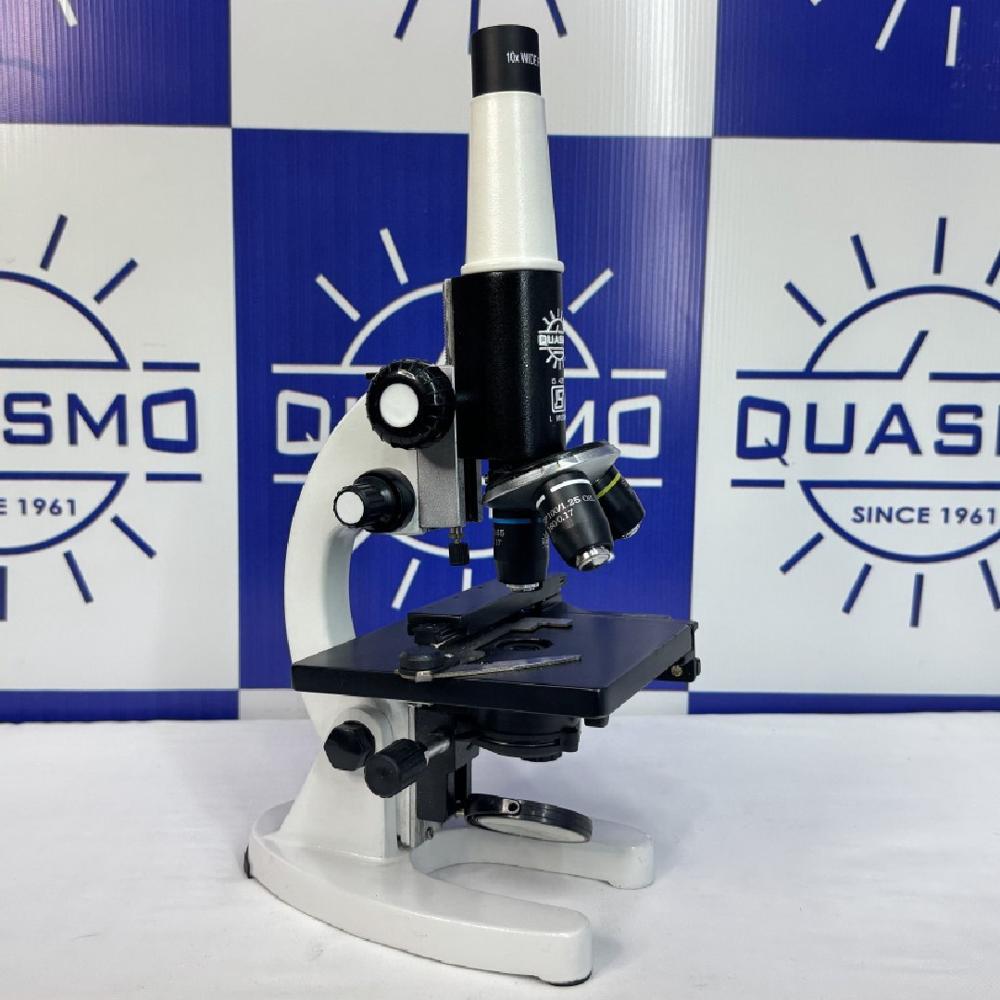

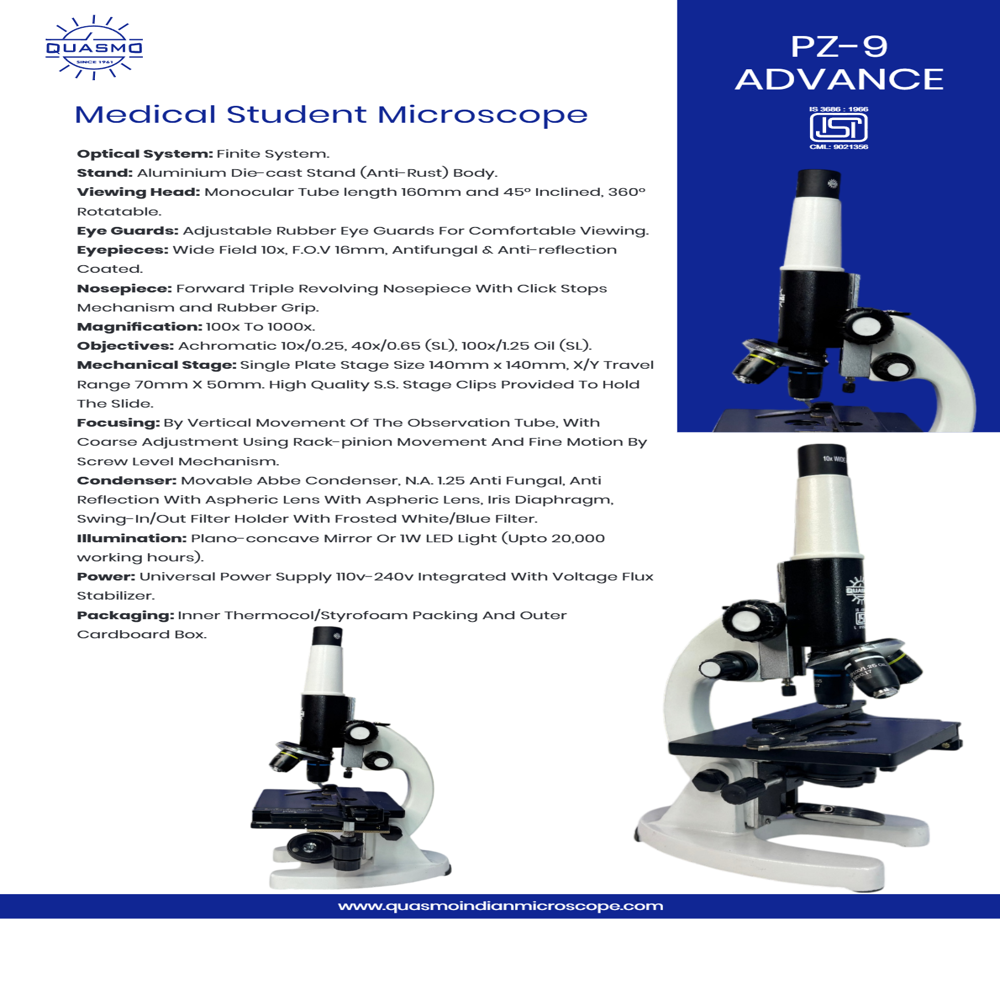

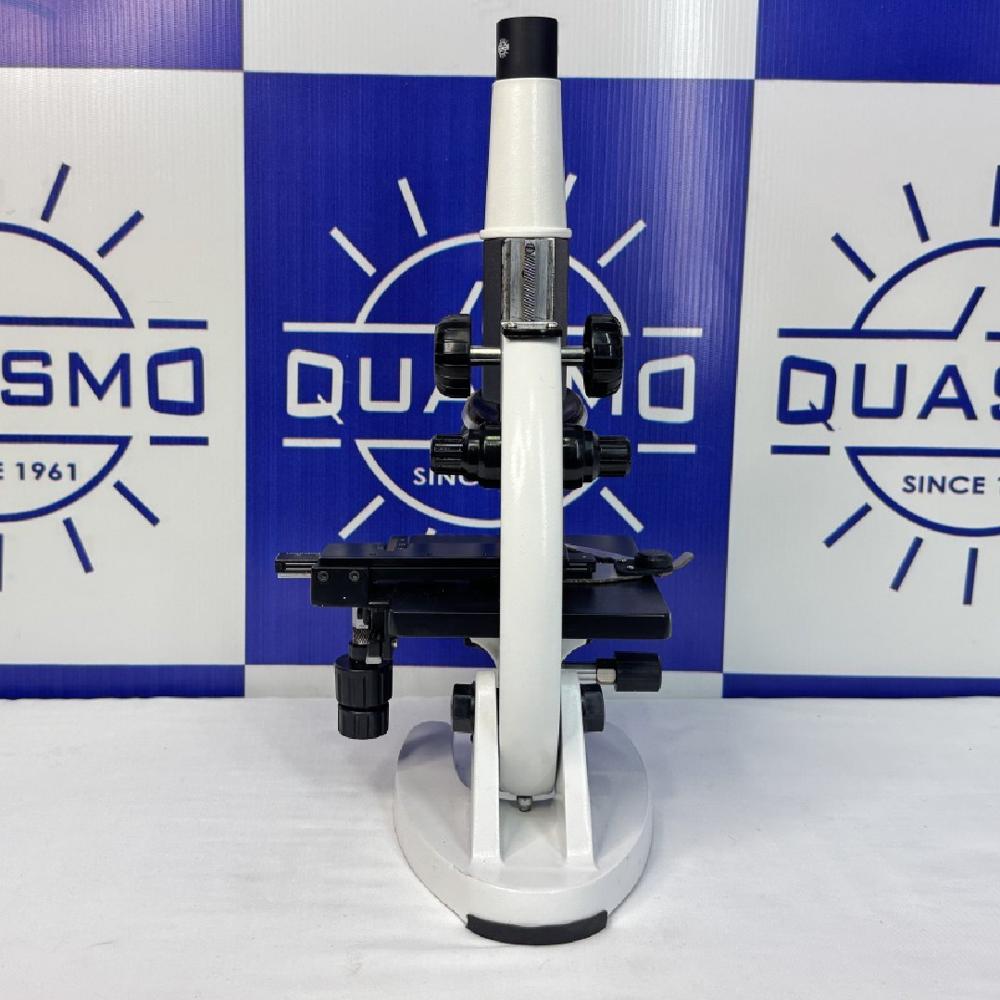

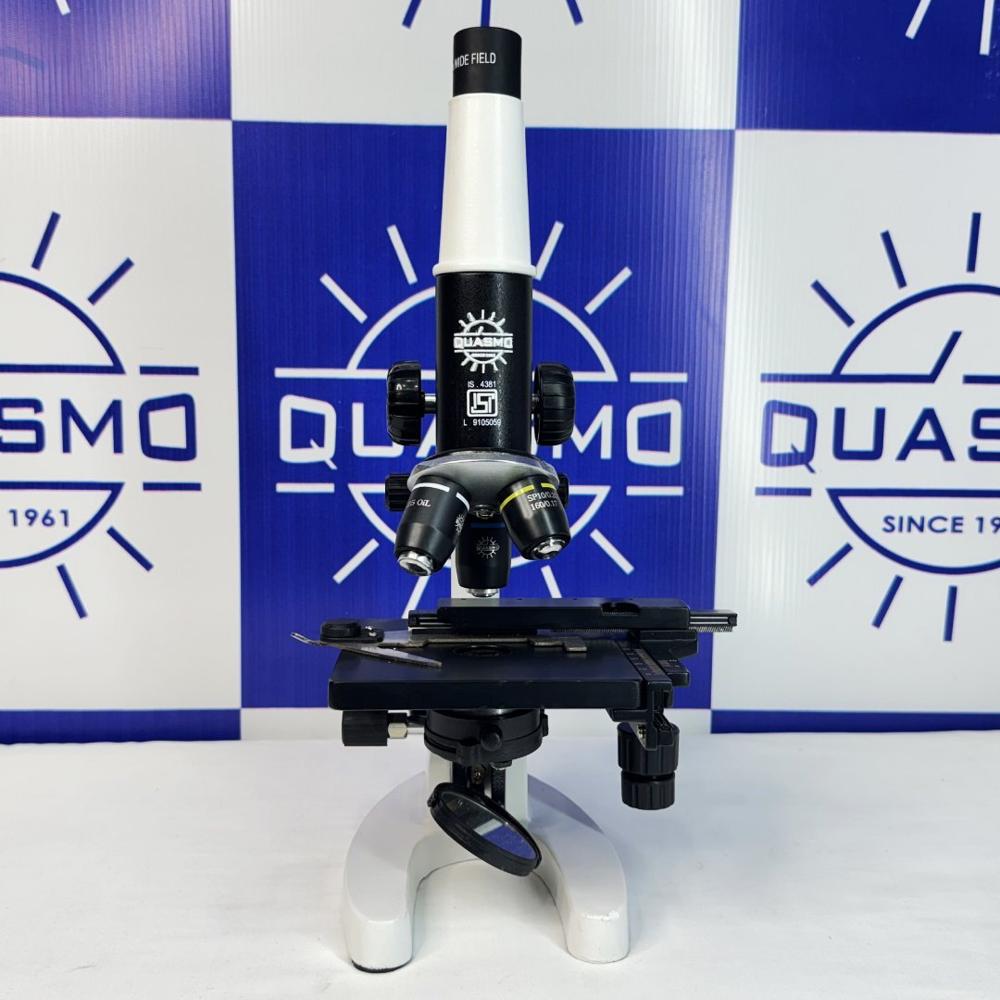

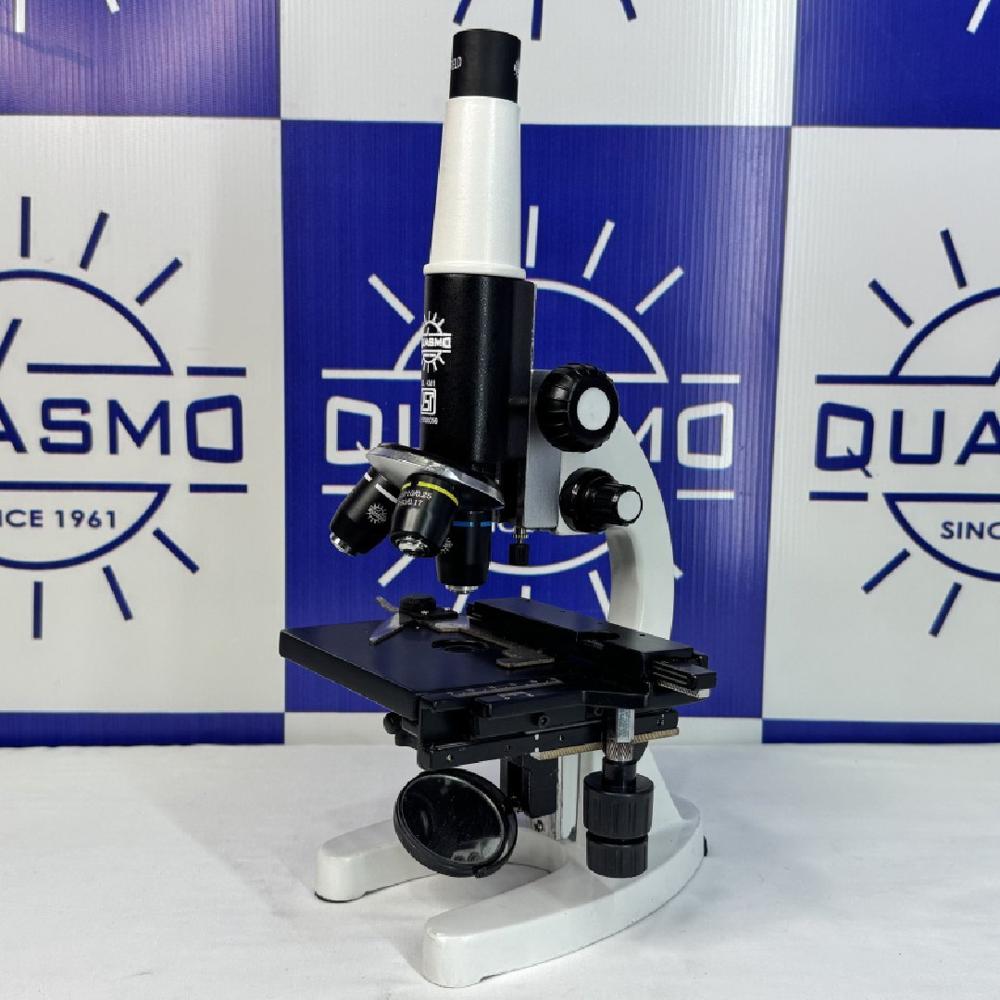

PZ-9 ADVANCE MEDICAL STUDENT MICROSCOPE
Optical System: Finite System.
Stand: Aluminium Die-cast Stand (Anti-Rust) Body.
Viewing Head: Monocular Tube length 160mm and 45 Inclined, 360
Rotatable.
Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
Eyepieces: Wide Field 10x, F.O.V 16mm, Antifungal & Anti-reflection
Coated.
Nosepiece: Forward Triple Revolving Nosepiece With Click Stops
Mechanism and Rubber Grip.
Magnification: 100x To 1000x.
Objectives: Achromatic 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
Mechanical Stage: Single Plate Stage Size 140mm x 140mm, X/Y Travel
Range 70mm X 50mm. High Quality S.S. Stage Clips Provided To Hold
The Slide.
Focusing: By Vertical Movement Of The Observation Tube, With
Coarse Adjustment Using Rack-pinion Movement And Fine Motion By
Screw Level Mechanism.
Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti
Reflection With Aspheric Lens With Aspheric Lens, Iris Diaphragm,
Swing-In/Out Filter Holder With Frosted White/Blue Filter.
Illumination: Plano-concave Mirror Or 1W LED Light (Upto 20,000
working hours).
Power: Universal Power Supply 110v-240v Integrated With Voltage Flux
Stabilizer.
Packaging: Inner Thermocol/Styrofoam Packing And Outer
Cardboard Box.
Engineered for Precision and DurabilityCrafted from heavy-duty metal and finished with a rust-resistant powder coating, the PZ-9 Advance Microscope is designed to withstand rigorous use in academic and professional settings. The reliable construction makes it suitable for daily lab work and enhances longevity, offering dependable performance for students and professionals alike.
Designed for Advanced Medical EducationTailored for medical students and instructors, this microscope features an easy-to-operate monocular view head, smooth coarse and fine focus adjustments, and an array of wide magnification settings (40X to 1000X). Its advanced optical system ensures crisp images crucial for pathology and clinical studies, making it an ideal instrument for medical training and research.
FAQ's of PZ-9 ADVANCE MEDICAL STUDENT MICROSCOPE:
Q: How do I achieve precise slide positioning with the PZ-9 Advance Medical Student Microscope?
A: This microscope is outfitted with an XY mechanical stage and a slide holder, enabling accurate and smooth positioning of specimens. You can adjust slides easily using the stage movement controls for targeted observation and detailed study.
Q: What safety and durability features are included in this microscope?
A: The PZ-9 features anti-fungal coated optical components to prevent degradation, a robust metal body for durability, and a powder-coated finish that protects against rust, ensuring long-term reliability even with frequent laboratory use.
Q: When is this microscope most effectively used in a laboratory or educational setting?
A: This microscope is ideal for advanced medical education, clinical laboratories, pathology work, and biology studies where high-resolution imaging and precise slide manipulation are essential.
Q: Where should I use the PZ-9 Advance Microscope for best results?
A: Use it in classrooms, university labs, or clinical laboratory environments with stable surfaces and access to AC 220V/50Hz power supply for optimal performance and safety.
Q: What is the process for illuminating specimens with this model?
A: Specimens are illuminated using either the plano concave mirror or the sub-stage electric illuminator. The built-in Abbe condenser (NA 1.25) and iris diaphragm help control light intensity and focus, enhancing image clarity during observation.
Q: How can I benefit from the microscope's ergonomic design?
A: The inclined monocular head minimizes neck strain during prolonged use, and the mechanical stage allows for seamless slide movement, making the microscope comfortable and efficient for extended educational or laboratory sessions.
