Product Description

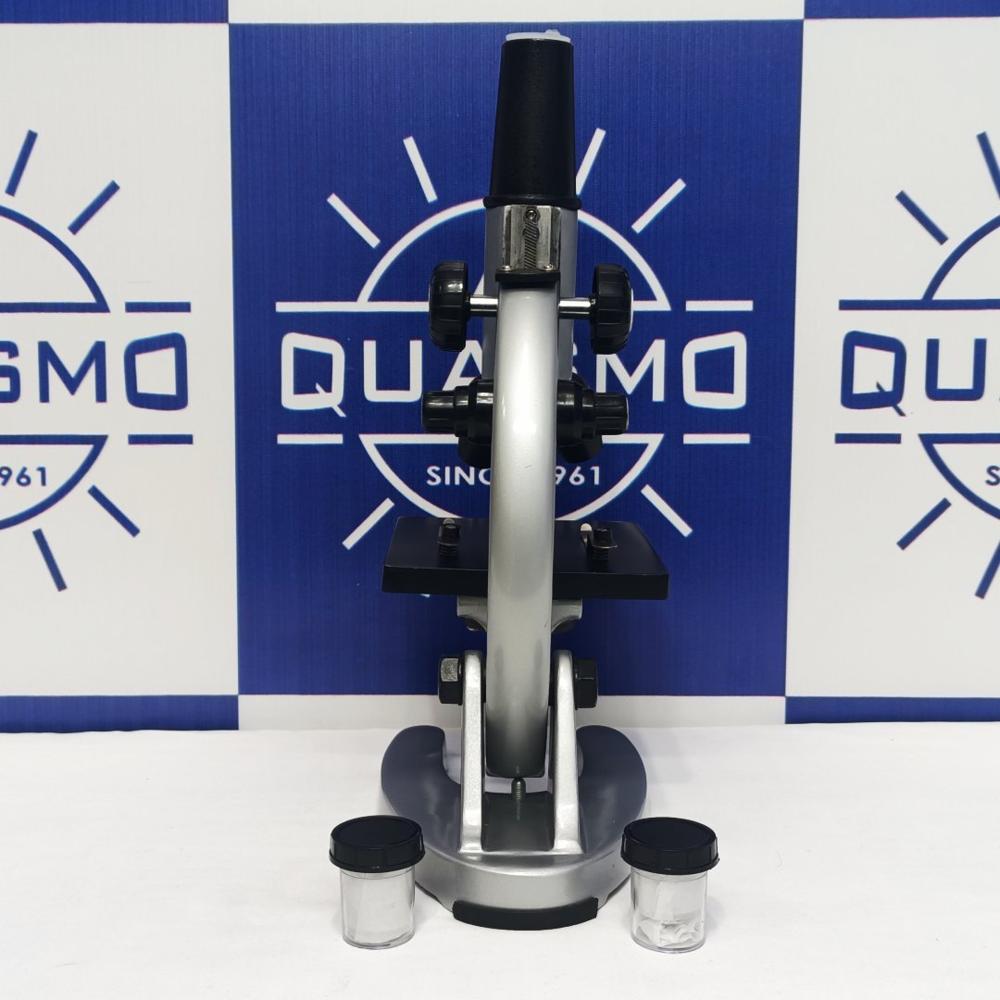

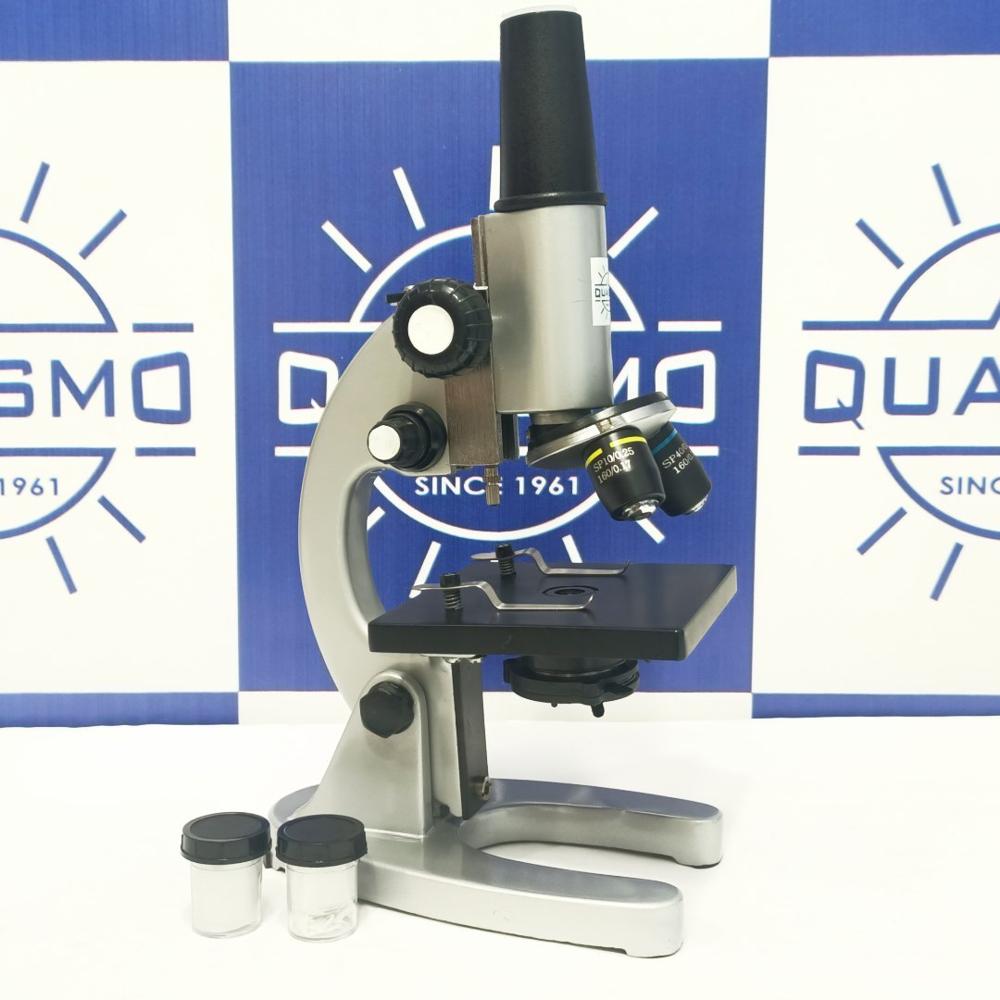

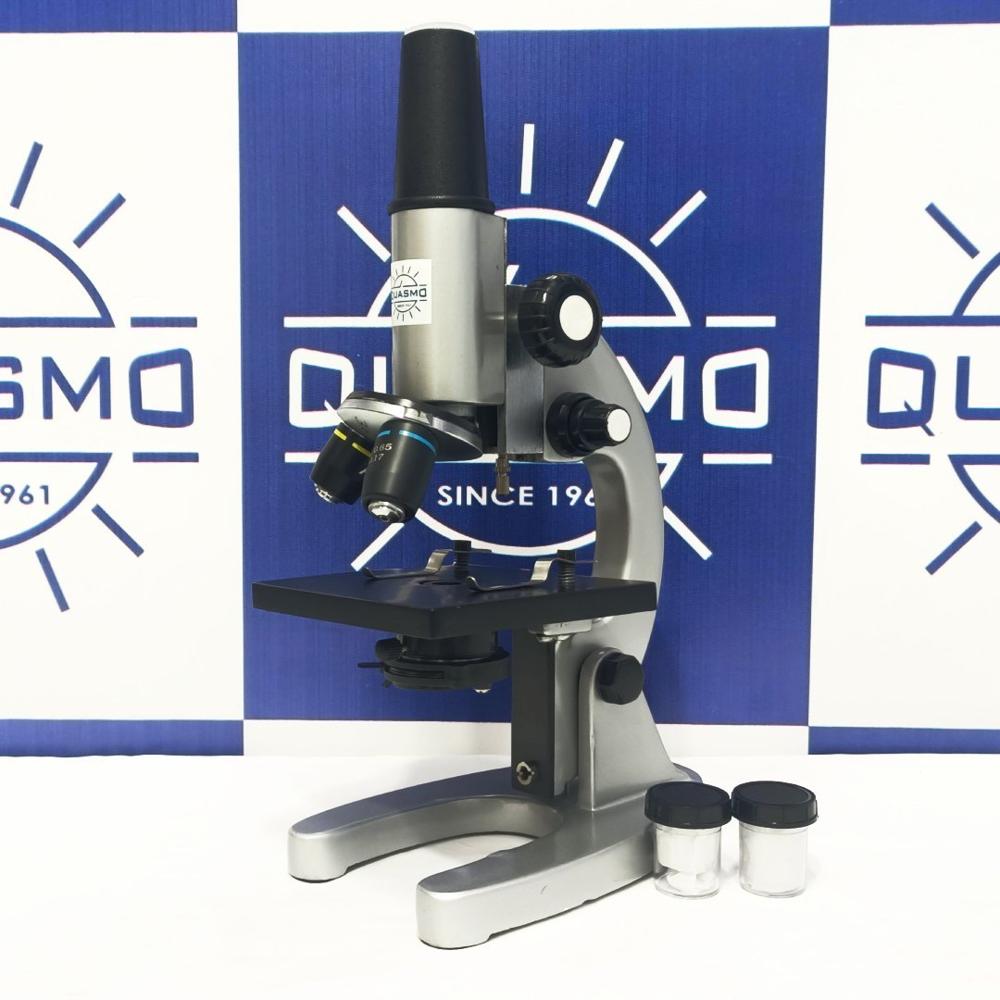

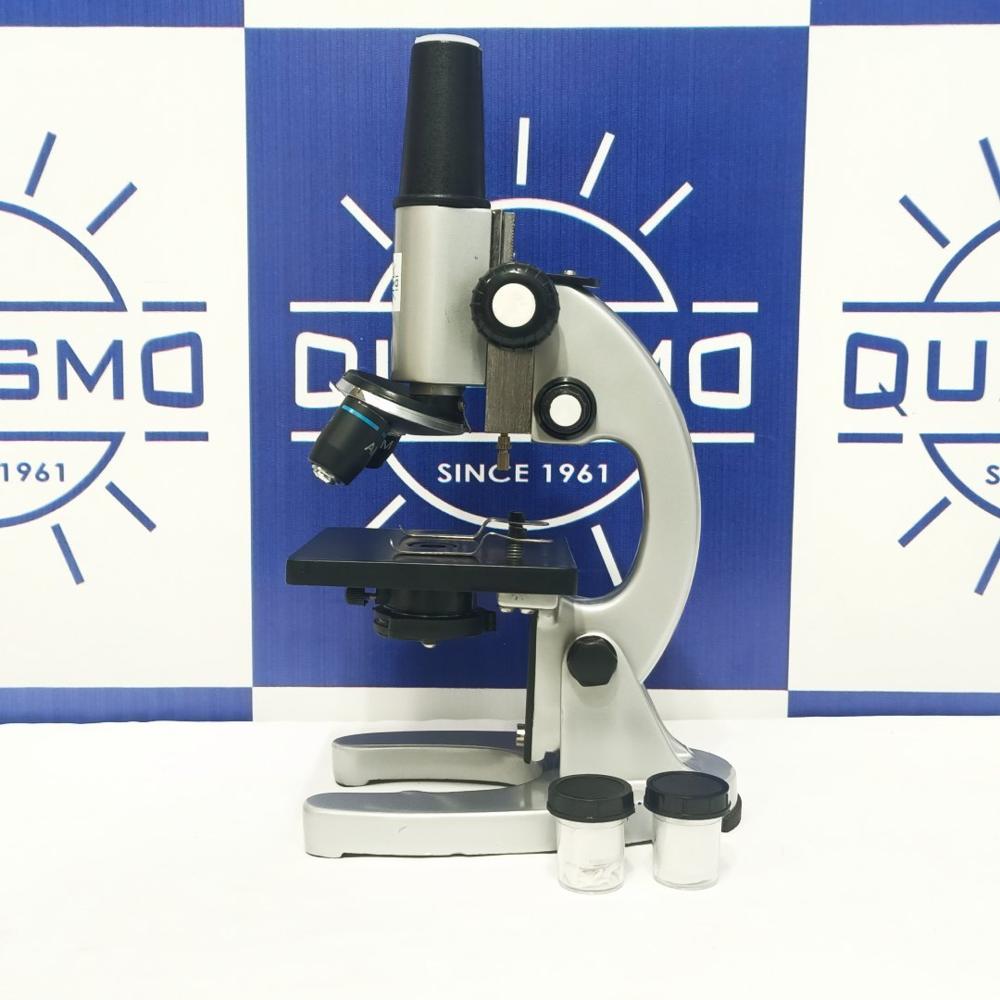

PZ-6 COMPOUND STUDENT MICROSCOPE

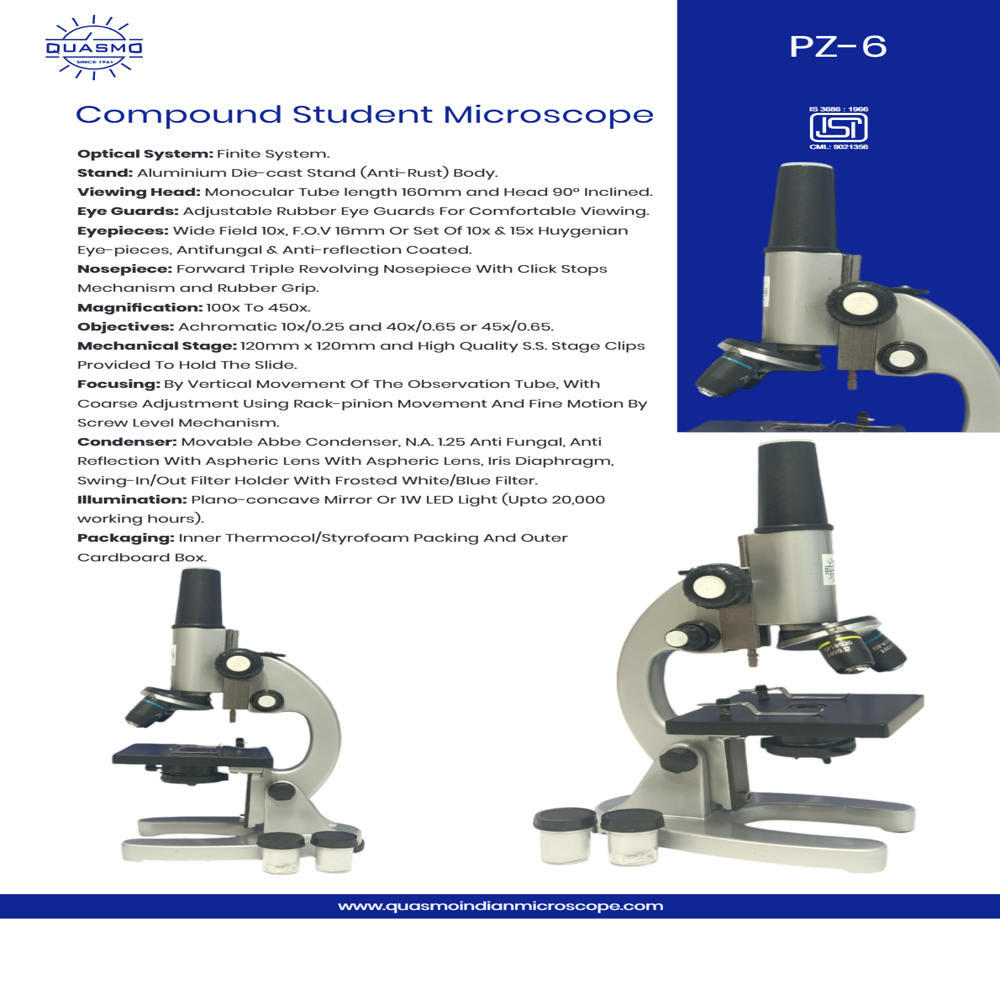

Optical System: Finite System. Stand: Aluminium Die-cast Stand (Anti-Rust) Body. Viewing Head: Monocular Tube length 160mm and Head 90 Inclined. Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing Eyepieces: Wide Field 10x, F.O.V 16mm Or Set Of 10x & 15x Huygenian Eye-pieces, Antifungal & Anti-reflection Coated. Nosepiece: Forward Triple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip. Magnification: 100x To 450x. Objectives: Achromatic 10x/0.25 and 40x/0.65 or 45x/0.65. Mechanical Stage: 120mm x 120mm and High Quality S.S. Stage Clips Provided To Hold The Slide. Focusing: By Vertical Movement Of The Observation Tube, With Coarse Adjustment Using Rack-pinion Movement And Fine Motion By Screw Level Mechanism. Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens With Aspheric Lens, Iris Diaphragm, Swing-In/Out Filter Holder With Frosted White/Blue Filter. Illumination: Plano-concave Mirror Or 1W LED Light (Upto 20,000 working hours). Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.Durable and Educational-Focused DesignCrafted from die-cast metal and coated with chemical-resistant enamel, the PZ-6 Compound Student Microscope is resilient against chips and daily laboratory use. Its solid structure and anti-fungal treated optics make it particularly suitable for the demands of school and college environments, offering longevity and consistent performance in both humid and dry settings.
Versatile Magnification and Clear ImagingCombining Huygenian eyepieces (5x, 10x) with achromatic objectives (10X, 45X, 100X oil), this microscope allows for a total magnification range from 40X up to 1000X. The fixed monocular head provides bright, sharp visual images, while the integrated condenser and diaphragm optimize contrast and clarity for fundamental biological and material observations.
User-Friendly and Adaptable IlluminationThe PZ-6 is equipped with a plano-concave mirror for natural light illumination and features an optional lamp attachment for enhanced viewing flexibility. Manual controls ensure ease of use for students, and the sturdy stage with clips ensures slides are held securely during observation, making it ideal for straightforward operation and educational training.
FAQ's of PZ-6 COMPOUND STUDENT MICROSCOPE:
Q: How do I adjust the magnification on the PZ-6 Student Microscope?
A: The magnification can be adjusted by rotating the triple nosepiece to switch between the achromatic objective lenses (10X, 45X SL, 100X oil) and pairing them with either the 5x or 10x Huygenian eyepiece. This provides a combined magnification range from 40X up to 1000X.
Q: What is the process for focusing samples on this microscope?
A: To focus, place your prepared slide under the stage clips. Begin with the coarse adjustment knob for broad focusing, then switch to the fine adjustment knob for precise focus. The microscope offers a coarse range of 30mm and a fine range of 0.2mm per revolution for careful sample observation.
Q: When should the anti-fungal optics be considered beneficial?
A: The anti-fungal treatment on the optics is especially beneficial for users in humid climates or laboratory environments prone to fungal growth, as it helps preserve lens clarity and extends the microscope's usable lifespan.
Q: Where can I use the PZ-6 Compound Microscope?
A: This microscope is ideal for use in school and college laboratories, and is well-suited for educational and training activities in both biological and material sciences. Its durable build allows frequent handling by students.
Q: What are the main benefits of the manual stage and focusing system?
A: Manual stage movement, paired with coaxial coarse and fine focus controls, allows students to intuitively learn microscope handling. This design reinforces fundamental microscopy skills important for further scientific education.
Q: How do I illuminate my specimen for viewing?
A: The microscope uses a plano-concave mirror to reflect natural light onto your specimen. For environments with limited natural light, you can attach an optional lamp for consistent illumination.
Q: What spare parts are available for the PZ-6 microscope?
A: Replacement objectives, eyepieces, mirrors, and other essential parts are available for the PZ-6, ensuring continued functionality and easy maintenance for classroom laboratories.
