Product Description

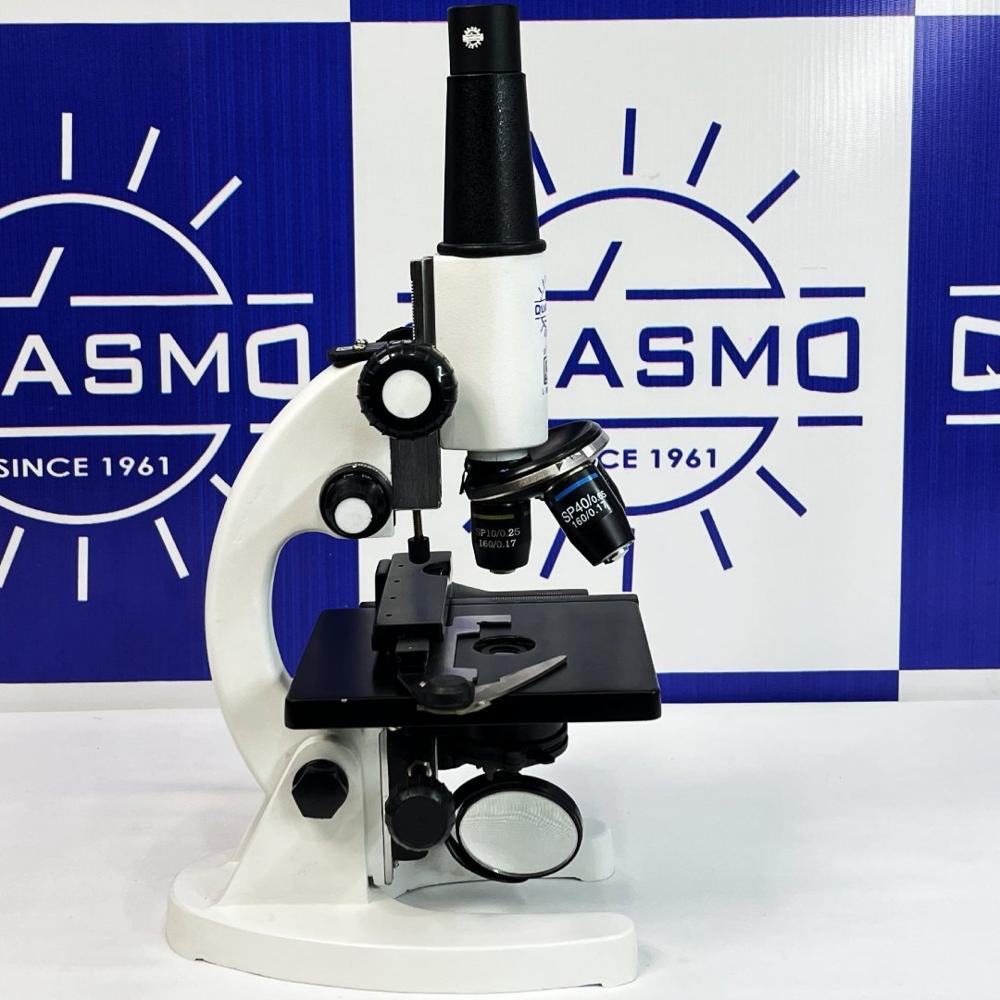

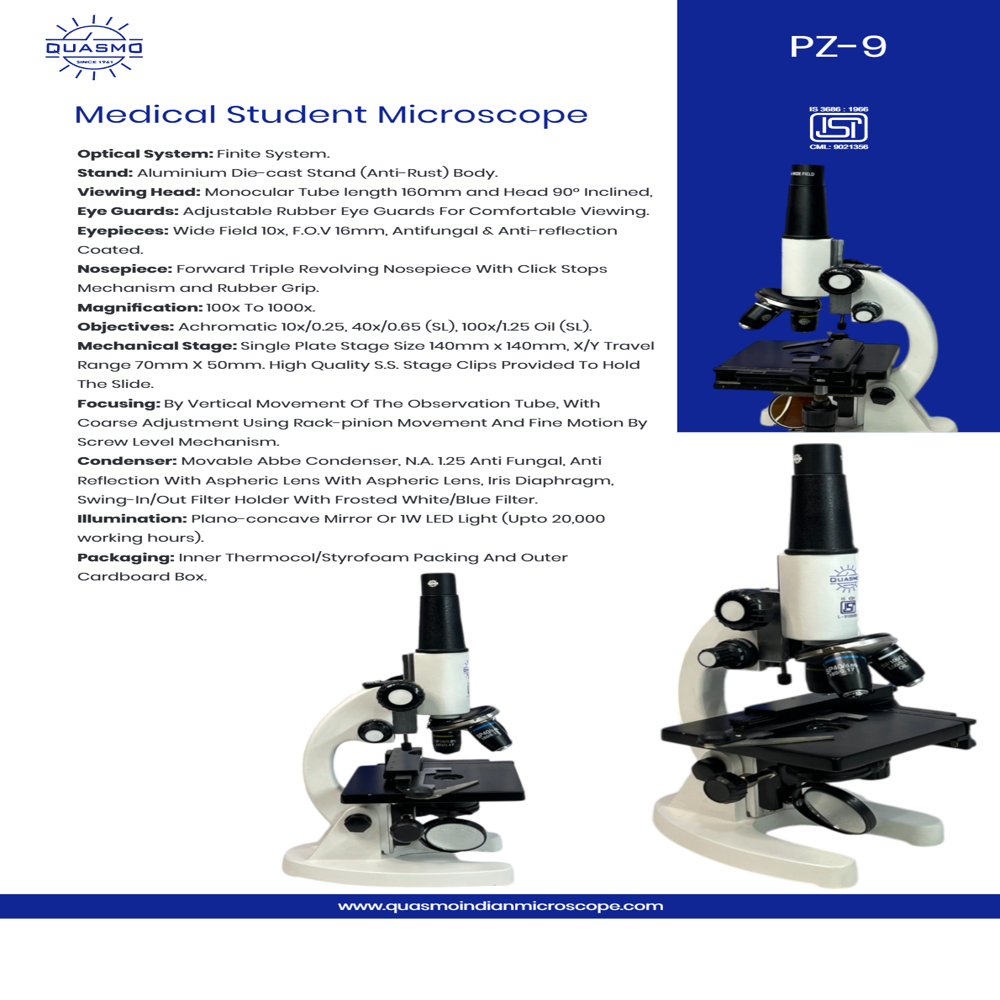

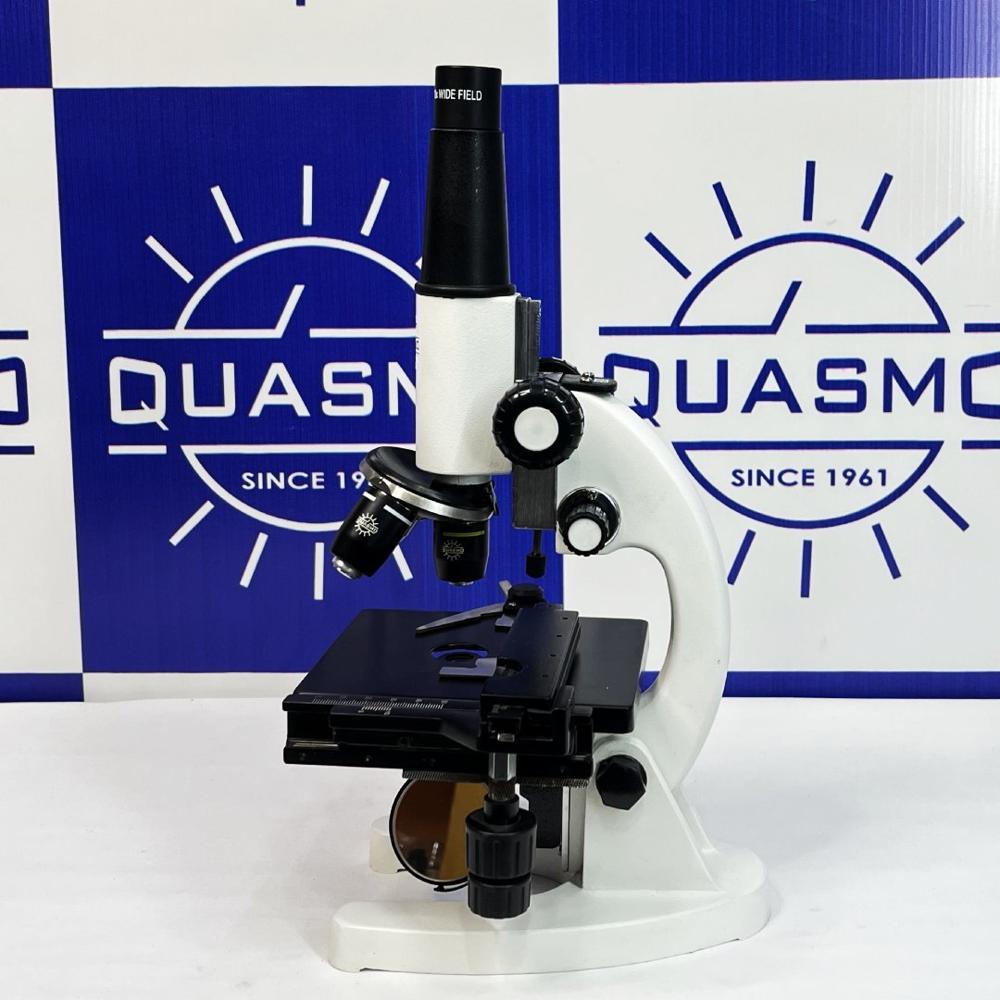

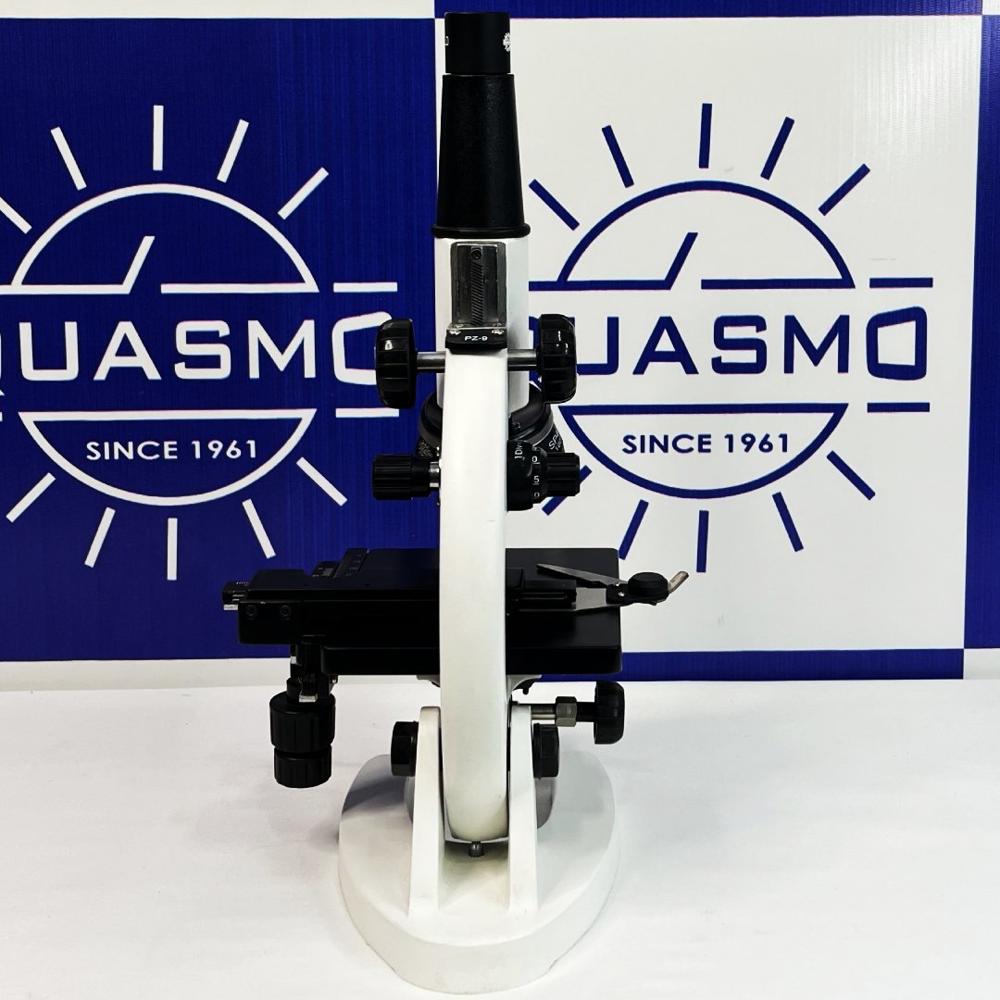

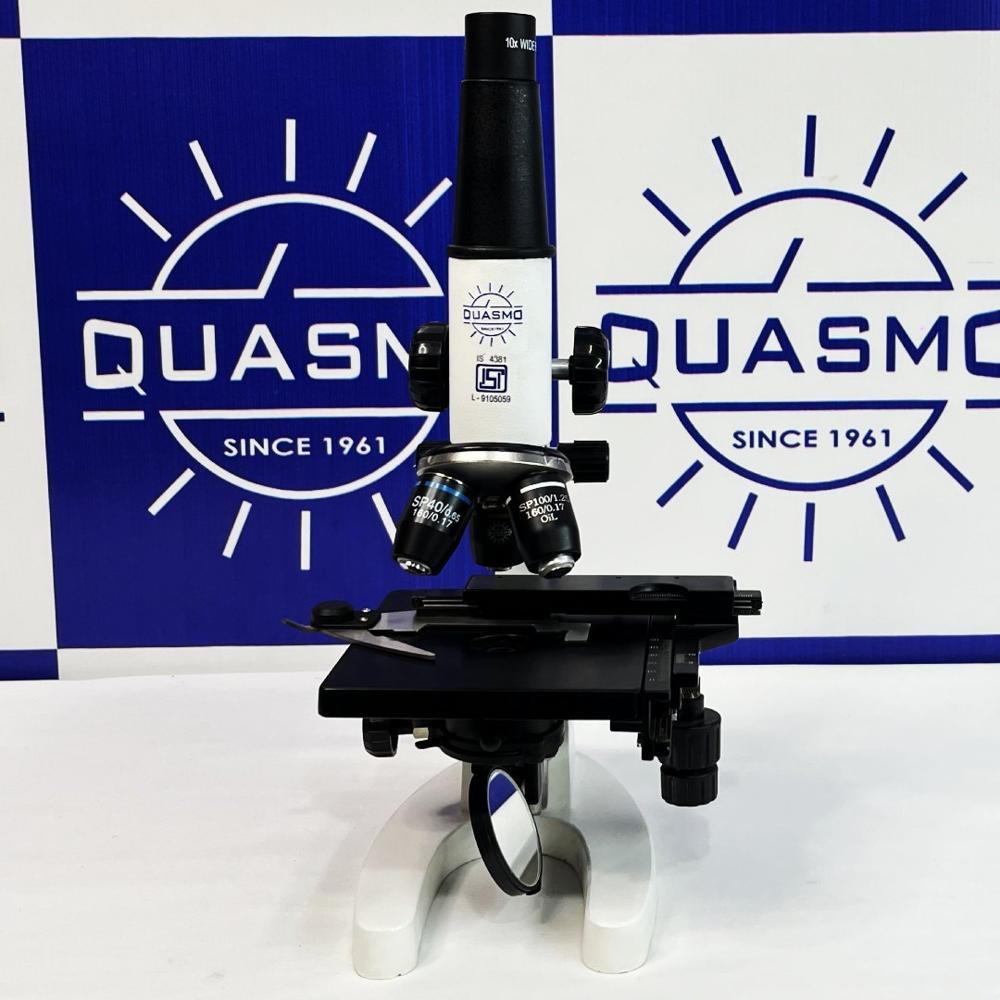

PZ-9 MEDICAL STUDENT MICROSCOPE
- Optical System: Finite System.
- Stand: Aluminium Die-cast Stand (Anti-Rust) Body.
- Viewing Head: Monocular Tube length 160mm and Head 90 Inclined,
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 16mm, Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Triple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 100x To 1000x.
- Objectives: Achromatic 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage: Single Plate Stage Size 140mm x 140mm, X/Y Travel Range 70mm X 50mm. High Quality S.S. Stage Clips Provided To Hold The Slide.
- Focusing: By Vertical Movement Of The Observation Tube, With Coarse Adjustment Using Rack-pinion Movement And Fine Motion By Screw Level Mechanism.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens With Aspheric Lens, Iris Diaphragm, Swing-In/Out Filter Holder With Frosted White/Blue Filter.
- Illumination: Plano-concave Mirror Or 1W LED Light (Upto 20,000 working hours).
- Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Reliable Construction for Long-Term UseBuilt with a heavy cast iron base for durability, the PZ-9 microscope can withstand rigorous handling common in student settings. Its baked enamel finish resists scratches and corrosion, ensuring it remains in excellent condition throughout repeated laboratory sessions. The convenient horseshoe foundation keeps the microscope steady during use, allowing learners to focus on their observations effectively.
Designed for Practical Medical EducationTailored for medical students, the PZ-9 features a monocular straight view head, coarse and fine focusing, and a fixed square stage for effortless slide examination. The inclusion of both 10X and 15X wide-field eyepieces, alongside 10X and 45X achromatic objectives, delivers versatile magnification options crucial in medical study and research.
User-Friendly Operation and MaintenanceManual slide movement with smooth stage clips simplifies specimen alignment, while the anti-fungal optical coating protects internal lenses for long-term use. Illumination is powered by a mirror using natural light, reducing dependence on electricity, and packaged accessories like test slides, dust cover, and spare parts promote continuous practical learning with minimal disruption.
FAQ's of PZ-9 Medical Student Microscope:
Q: How do I move the specimen slides on the PZ-9 microscope?
A: The PZ-9 uses manual slide movement, allowing you to position your specimen precisely on the fixed square stage. Two nickel-plated stage clips help hold the slide securely during observation.
Q: What is the benefit of the microscope's anti-fungal optical coating?
A: The anti-fungal optical coating protects the optical components from fungal growth, ensuring clear images and maintaining the longevity of the microscope even in humid laboratory conditions.
Q: When should I use each of the included eyepieces and objectives?
A: Use the WF 10X eyepiece with either the 10X or 45X objective lens for general observations or moderate magnification, and switch to the WF 15X eyepiece and 45X objective for higher magnification, reaching up to 900x-ideal for detailed medical studies.
Q: Where can this microscope be used most effectively?
A: The PZ-9 is designed for use in educational settings such as medical schools, colleges, and laboratory environments where student training and basic research are required.
Q: What accessories are supplied with the PZ-9 microscope?
A: Each unit includes test slides, a dust cover, a spare bulb, and a fuse, ensuring students have essential items for immediate use and easy maintenance.
Q: How does the microscope achieve proper illumination without built-in lighting?
A: The PZ-9 utilizes a plano-concave mirror to direct natural light onto the specimen. Simply adjust the mirror to capture and focus ambient or external light for optimal viewing conditions.
