Product Description

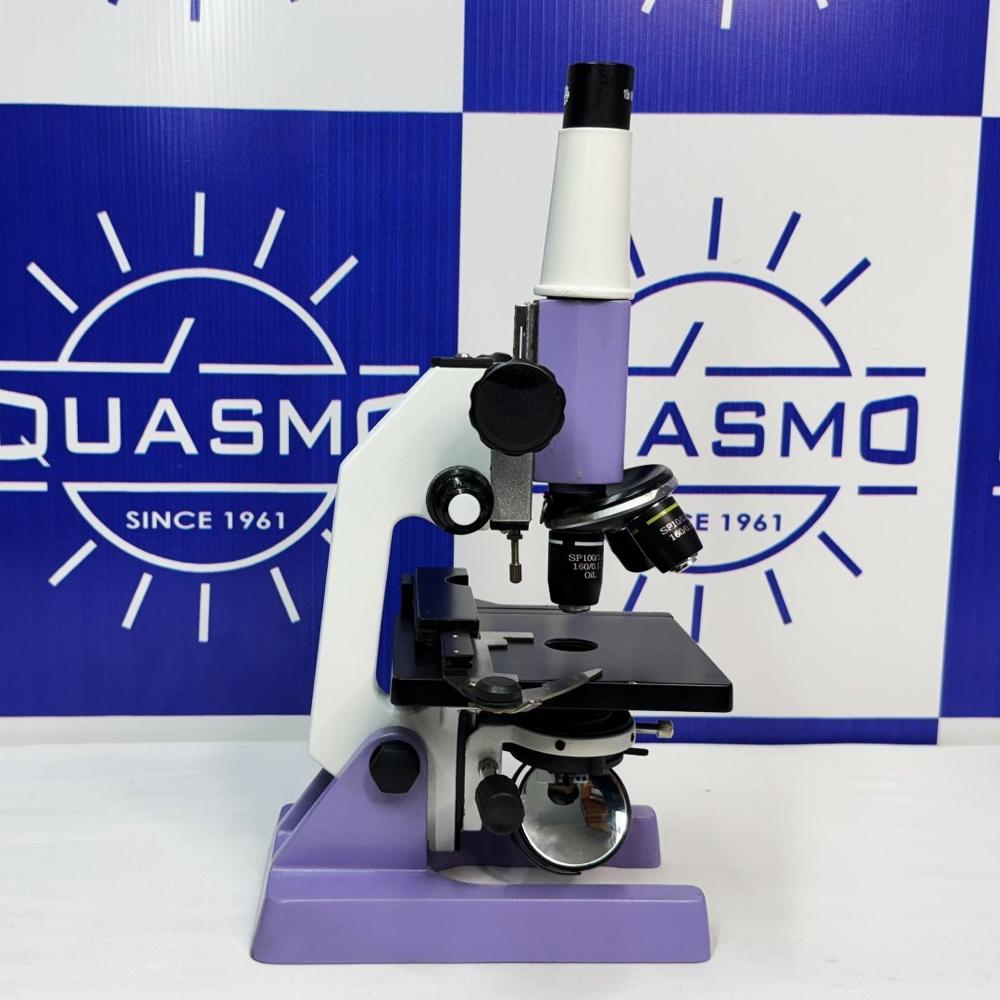

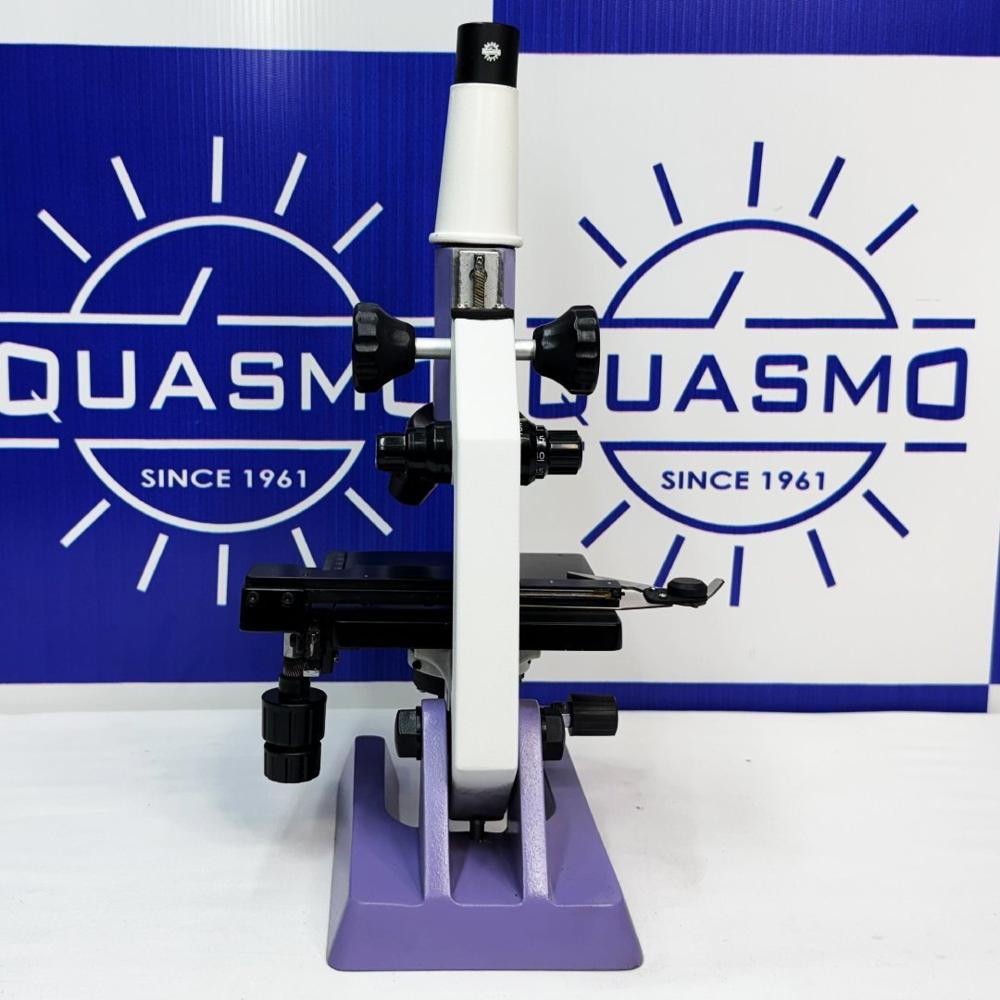

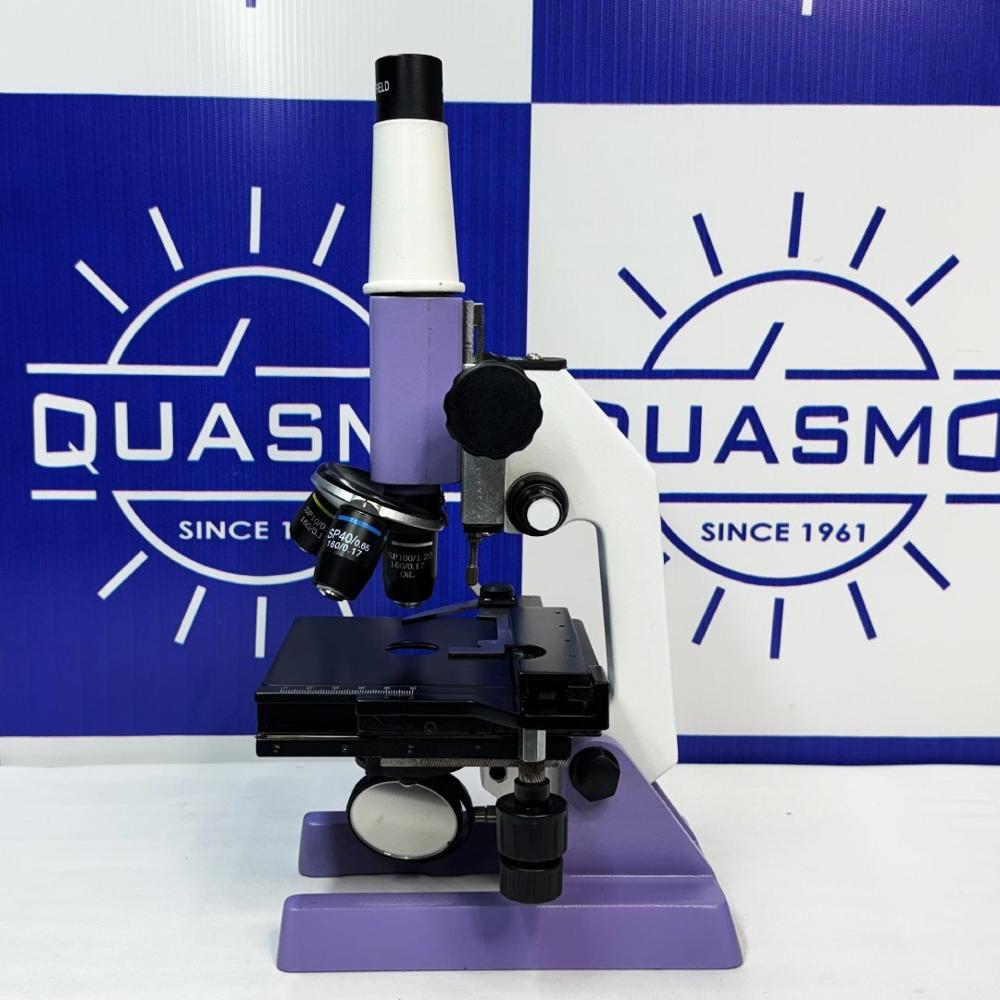

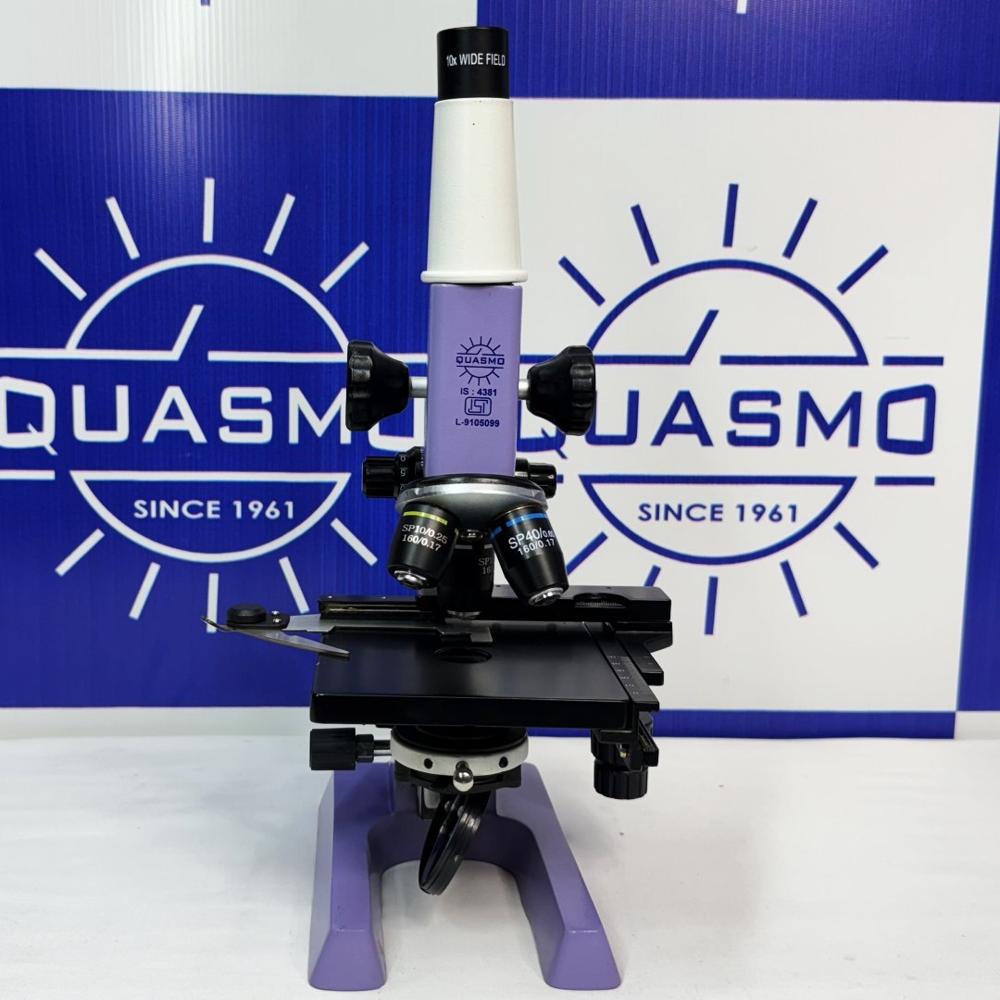

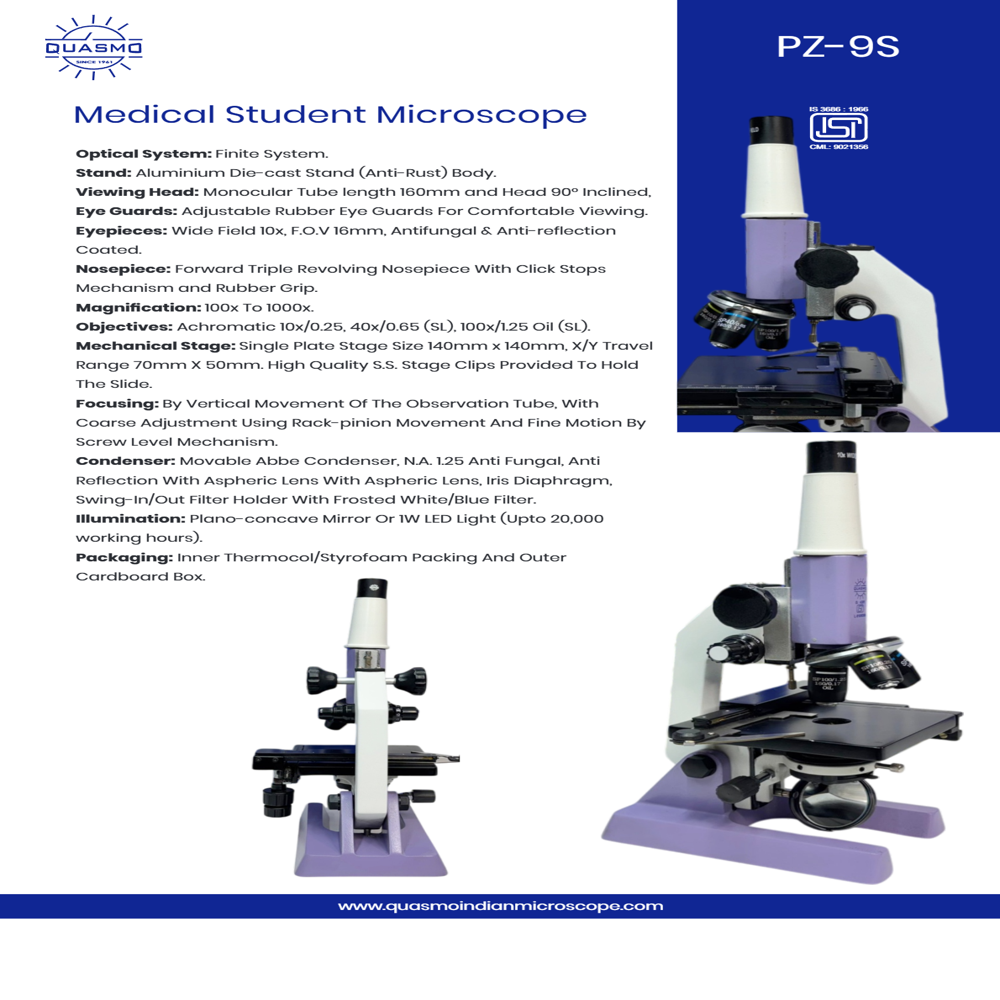

PZ-9S MEDICAL STUDENT MICROSCOPE
- Optical System: Finite System.
- Stand: Aluminium Die-cast Stand (Anti-Rust) Body.
- Viewing Head: Monocular Tube length 160mm and Head 90 Inclined,
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 16mm, Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Triple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 100x To 1000x.
- Objectives: Achromatic 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage: Single Plate Stage Size 140mm x 140mm, X/Y Travel Range 70mm X 50mm. High Quality S.S. Stage Clips Provided To Hold The Slide.
- Focusing: By Vertical Movement Of The Observation Tube, With Coarse Adjustment Using Rack-pinion Movement And Fine Motion By Screw Level Mechanism.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens With Aspheric Lens, Iris Diaphragm, Swing-In/Out Filter Holder With Frosted White/Blue Filter.
- Illumination: Plano-concave Mirror Or 1W LED Light (Upto 20,000 working hours).
- Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Engineered for Durability and StabilityThe PZ-9S is constructed with a robust, die-cast metal frame and a heavy square base featuring anti-vibration finishing, ensuring steady support during intensive laboratory work. The epoxy powder-coated finish protects against corrosion, making this microscope a long-term investment for educational institutions and students alike.
High-Quality Optics and Precision ViewingThis microscope comes equipped with wide field 10X eyepieces and achromatic objectives covering 40X to 1000X magnification. The monocular head, inclined at 45, and anti-fungal coated optics provide both comfort and clarity. Coarse and fine focusing mechanisms allow for precise image detailing, crucial for medical and biology studies.
Adaptable Illumination and Easy UpgradesA plano-concave mirror delivers natural illumination, with provisions for upgrading to an electric light source if required. The focusable Abbe condenser (NA 1.25) with iris diaphragm ensures optimal light control. Optional accessories like mechanical stages and alternative eyepieces further extend the microscope's versatility in laboratory settings.
FAQ's of PZ-9S MEDICAL STUDENT MICROSCOPE:
Q: How does the anti-vibration base benefit users during laboratory work?
A: The heavy square base with anti-vibration finish provides a stable platform, minimizing movement and ensuring sharp, accurate views even during high magnification, which is especially important for students handling delicate specimens.
Q: What is the process for adjusting magnification on the PZ-9S microscope?
A: To adjust magnification, rotate the triple nosepiece to select the desired DIN standard objective (10X, 40X, or 100X oil immersion). Pair with the 10X wide field eyepiece for a range of 40X to 1000X, offering flexibility for detailed observation.
Q: When should a user upgrade to artificial illumination?
A: Artificial illumination is recommended in laboratory environments with inconsistent or insufficient natural light. The PZ-9S provides a plano-concave mirror for normal use, but is designed to easily accommodate an electric illuminator whenever greater lighting control is needed.
Q: Where is the PZ-9S most suitable for use?
A: This microscope is ideal for medical student laboratories, as well as school and university-level biology classrooms, where precision, durability, and ease of use are essential.
Q: What optional accessories can enhance the PZ-9S microscope's functionality?
A: Optional items such as a mechanical stage, electric illuminator, and various eyepieces or objectives allow for customization based on specific educational or laboratory requirements.
Q: How do the coarse and fine focusing adjustments work?
A: The microscope features separate knobs for coarse (15mm upward movement) and fine (0.2mm precision) focusing, letting users achieve sharp focus with ease for both initial scanning and detailed study of specimens.
Q: What maintenance steps are required to keep the PZ-9S in optimal condition?
A: Routine cleaning with the supplied cleaning cloth, use of the dust cover when not in operation, and occasional checks for bulb replacements (if using electric illumination) will preserve the microscope's performance and longevity.
