Product Description

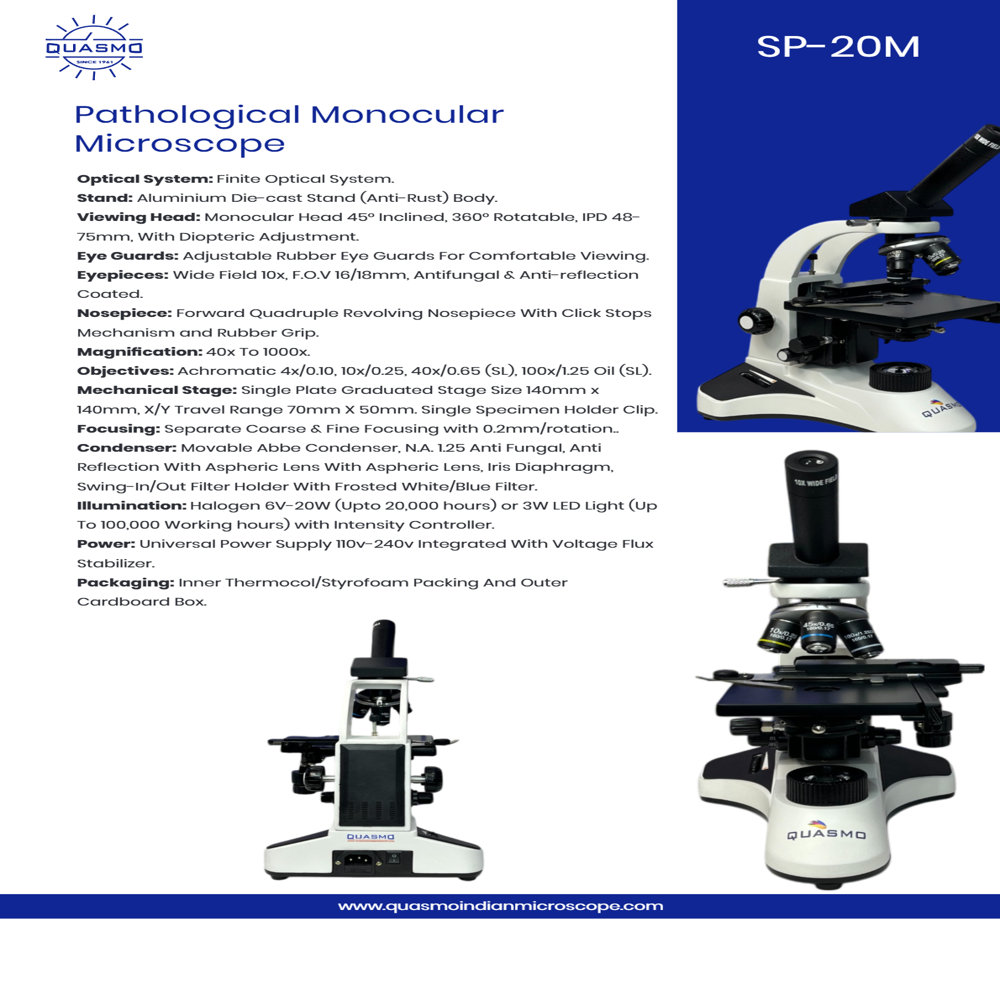

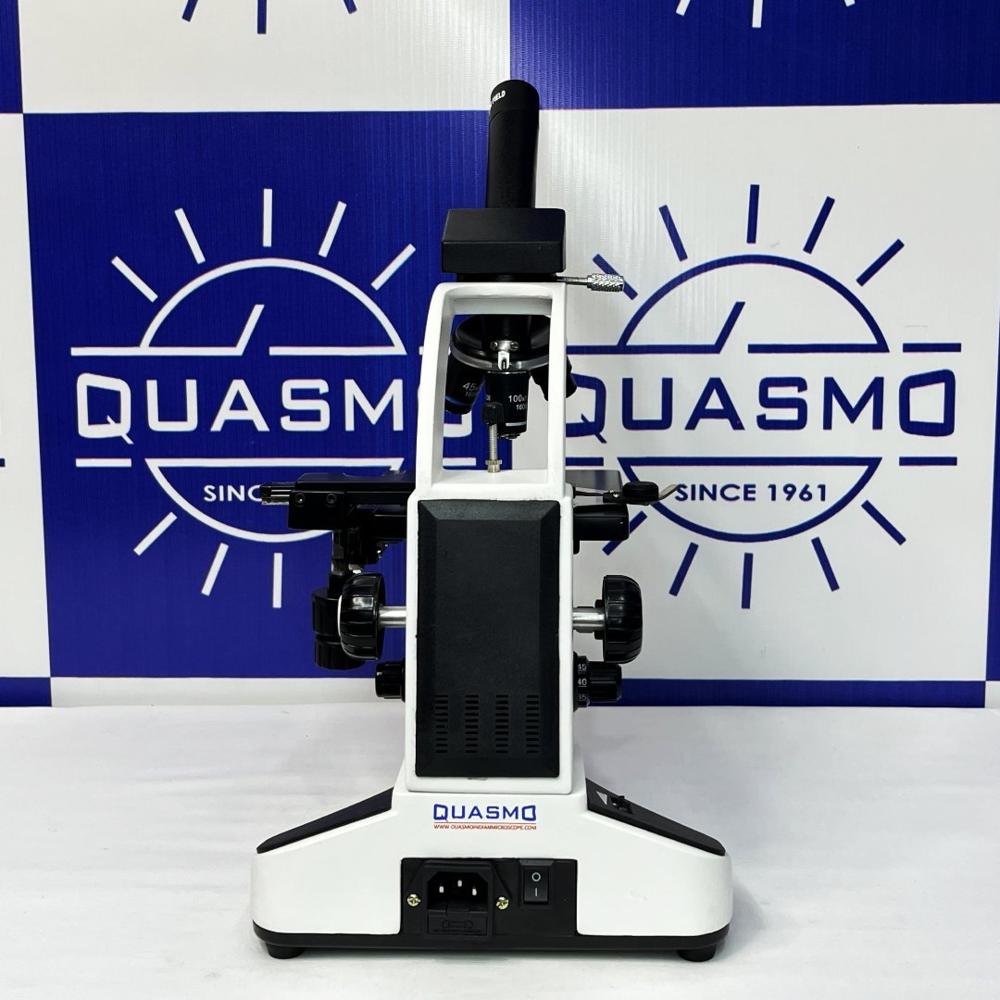

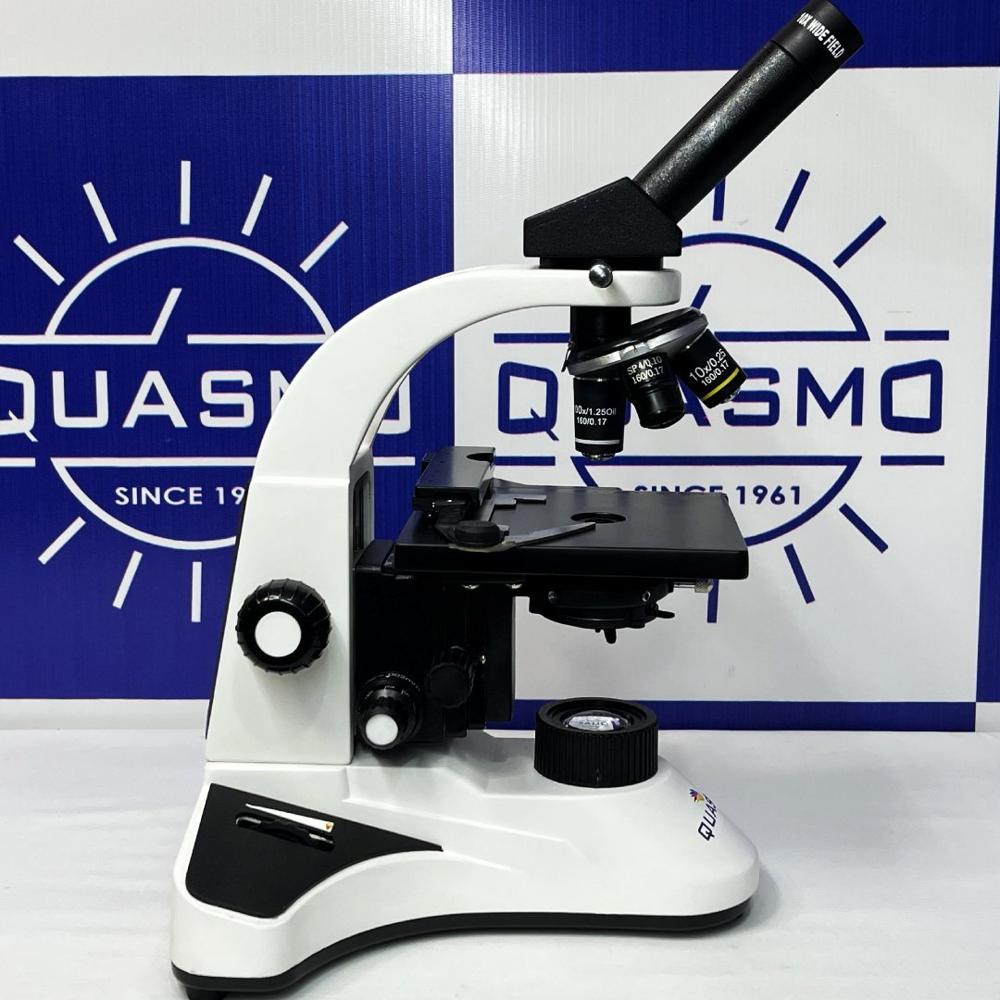

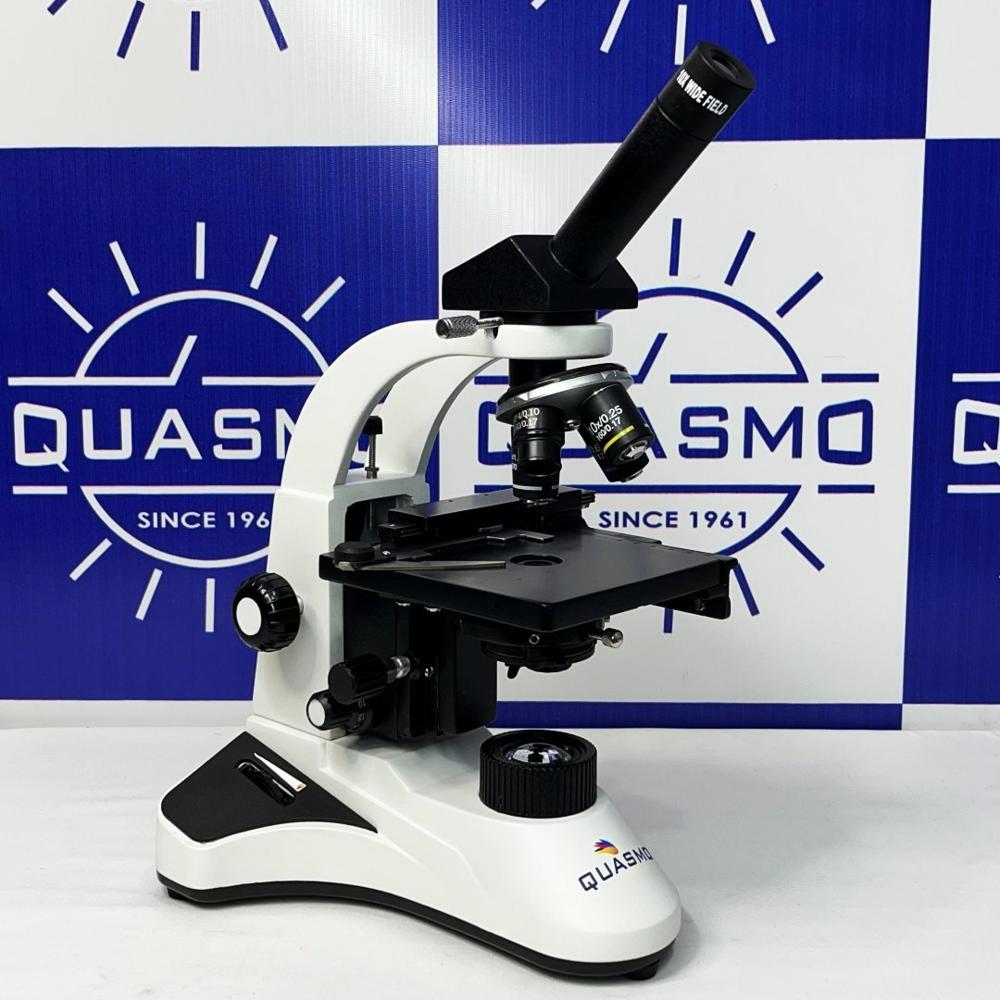

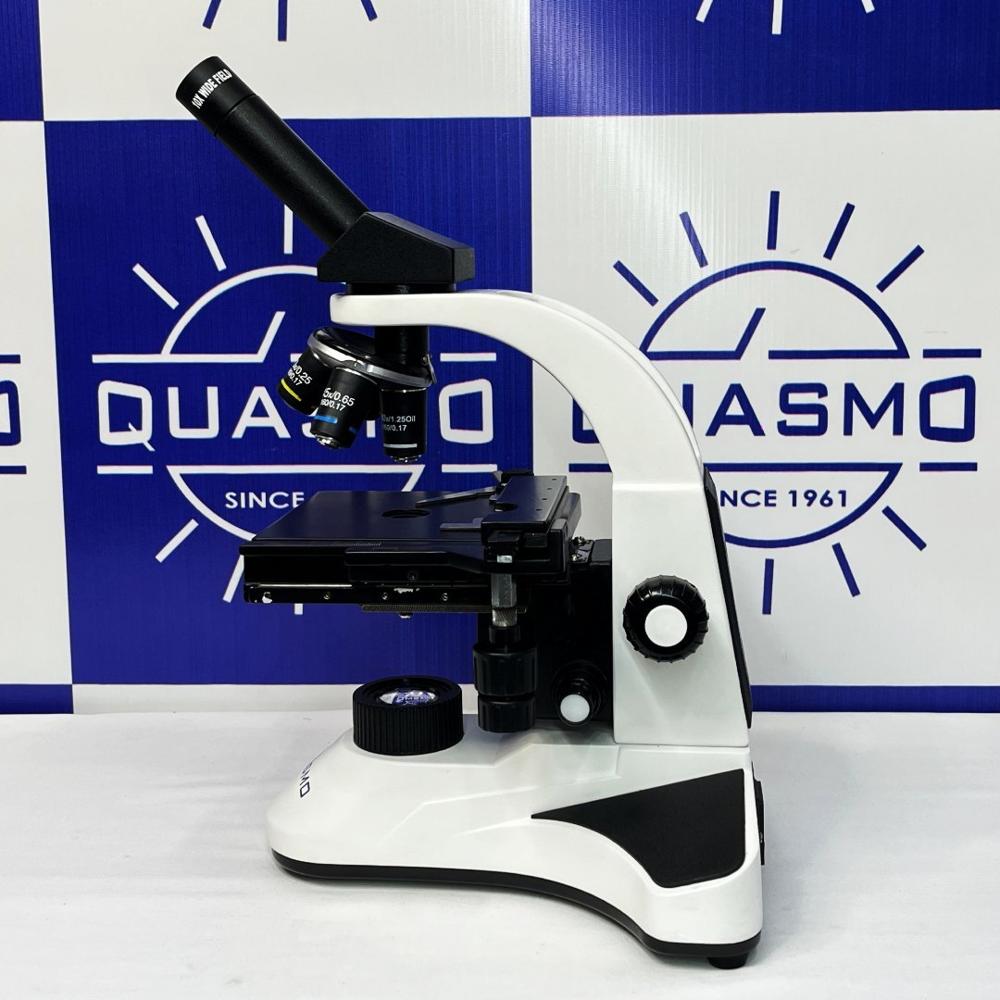

SP-20M PATHOLOGICAL MONOCULAR MICROSCOPE
- Optical System: Finite Optical System.
- Stand: Aluminium Die-cast Stand (Anti-Rust) Body.
- Viewing Head: Monocular Head 45 Inclined, 360 Rotatable, IPD 48-75mm, With Diopteric Adjustment.
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 16/18mm, Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 40x To 1000x.
- Objectives: Achromatic 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage: Single Plate Graduated Stage Size 140mm x140mm, X/Y Travel Range 70mm X 50mm. Single Specimen Holder Clip.
- Focusing: Separate Coarse & Fine Focusing with 0.2mm/rotation.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens With Aspheric Lens, Iris Diaphragm, Swing-In/Out Filter Holder With Frosted White/Blue Filter.
- Illumination: Halogen 6V-20W (Upto 20,000 hours) or 3W LED Light (Up To 100,000 Working hours) with Intensity Controller.
- Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
- Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Robust Design and ConstructionThe SP-20M microscope features a heavy, stable base paired with a sturdy die-cast metal body, ensuring vibration-free operation during detailed examinations. The anti-rust finish adds further durability, making this microscope an ideal choice for frequent use in both educational institutions and laboratory environments.
Advanced Optical PrecisionEquipped with achromatic, color-corrected objectives conforming to DIN standards, the SP-20M delivers sharp, high-contrast images across all supported magnifications (40X to 1000X). Its wide-field 10X eyepiece and Abbe condenser with iris diaphragm enhance clarity and image detail, supporting a range of observations, from cell structure studies to routine slide analysis.
User-Friendly Operation and VersatilityThis monocular microscope comes with a 360 rotatable, 45 inclined head for comfortable viewing. The mechanical stage with X-Y movement allows precise slide adjustments. Coaxial coarse and fine focusing, combined with visual observation, makes it effortless for users to obtain crisp results. The instrument is suitable for a variety of biological and pathological laboratory tasks.
FAQs of SP-20M PATHOLOGICAL MONOCULAR MICROSCOPE:
Q: How does the SP-20M microscope achieve precise slide control during examination?
A: The SP-20M is equipped with a mechanical stage featuring X-Y movement and graduations, enabling precise and accurate positioning of the slide for detailed observation and analysis.
Q: What is the primary benefit of the sturdy metal die-cast body with anti-rust finish?
A: The sturdy metal die-cast body with anti-rust finish provides durability, stability, and a long operational lifespan, ensuring reliable performance even with frequent use in laboratory settings.
Q: When should I use the optional electric lamp instead of the plano-concave mirror for illumination?
A: Use the optional electric lamp in environments with insufficient natural light, as it provides consistent and adjustable lighting to enhance specimen visibility during examination.
Q: Where can the SP-20M Pathological Monocular Microscope be utilized effectively?
A: This microscope is ideal for use in educational institutions, routine laboratory work, pathology labs, and clinical settings where detailed slide examination and teaching are required.
Q: What is the magnification range and how can it be adjusted?
A: The SP-20M offers a magnification range from 40X to 1000X, which can be adjusted by selecting different combinations of the supplied achromatic objectives (4X, 10X, 40X, 100X oil) and eyepieces (10X standard, 5X/15X optional).
Q: How do I maintain the microscope to ensure longevity?
A: To maintain the SP-20M, regularly clean the optical components gently, store the microscope in its protective case, and avoid exposure to excessive moisture. The anti-rust finish and sturdy construction also simplify routine maintenance.
