Product Description

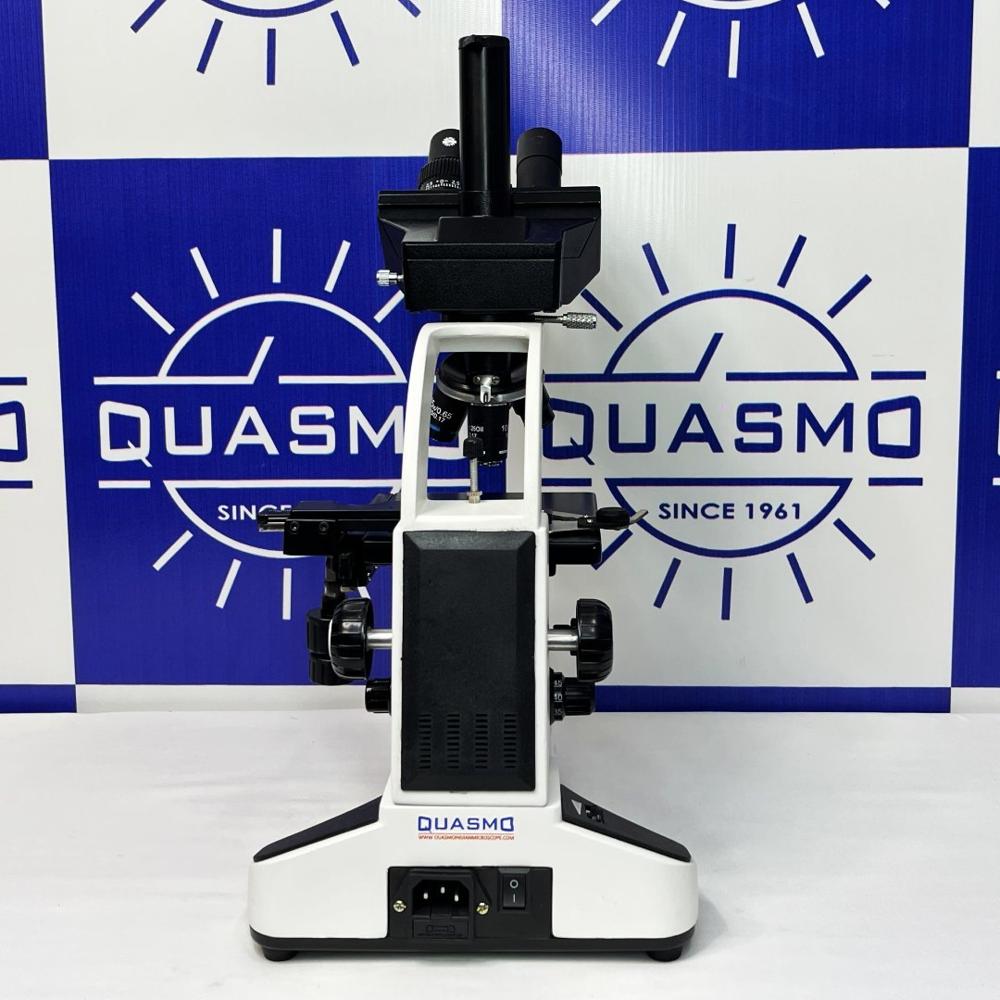

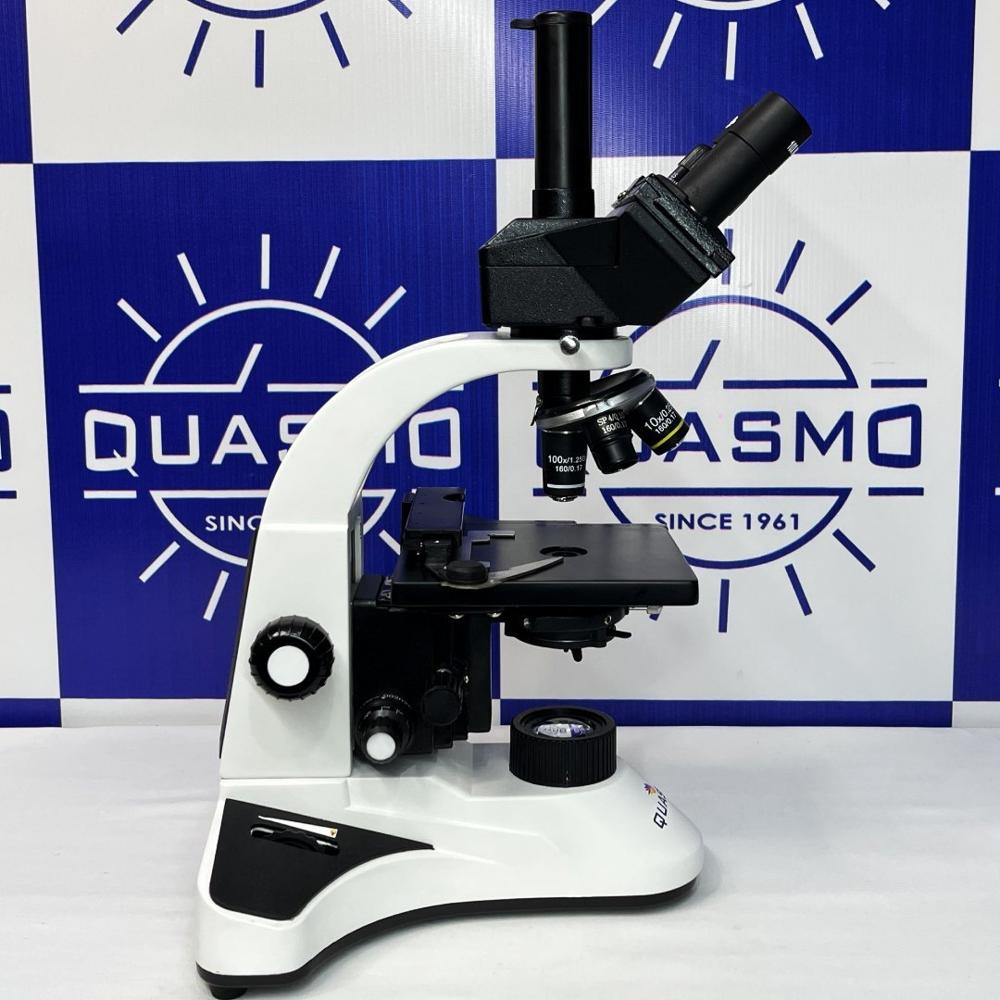

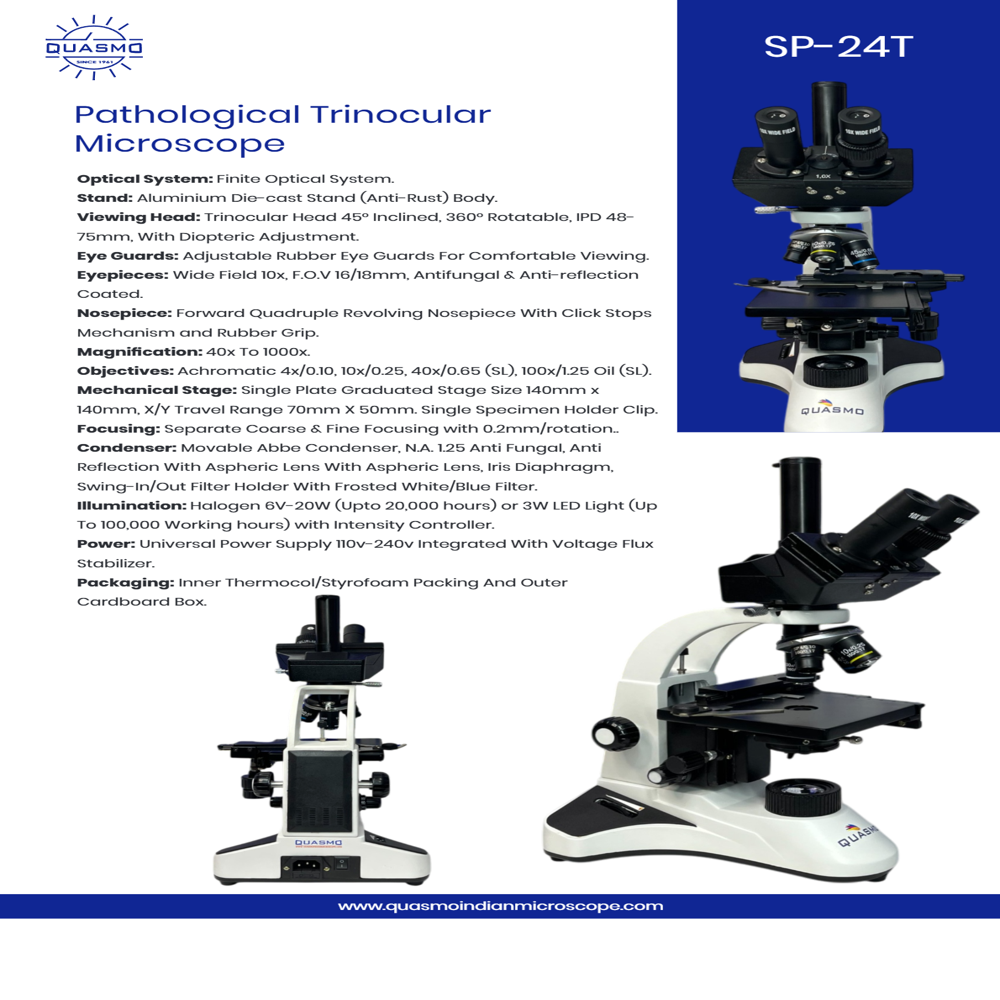

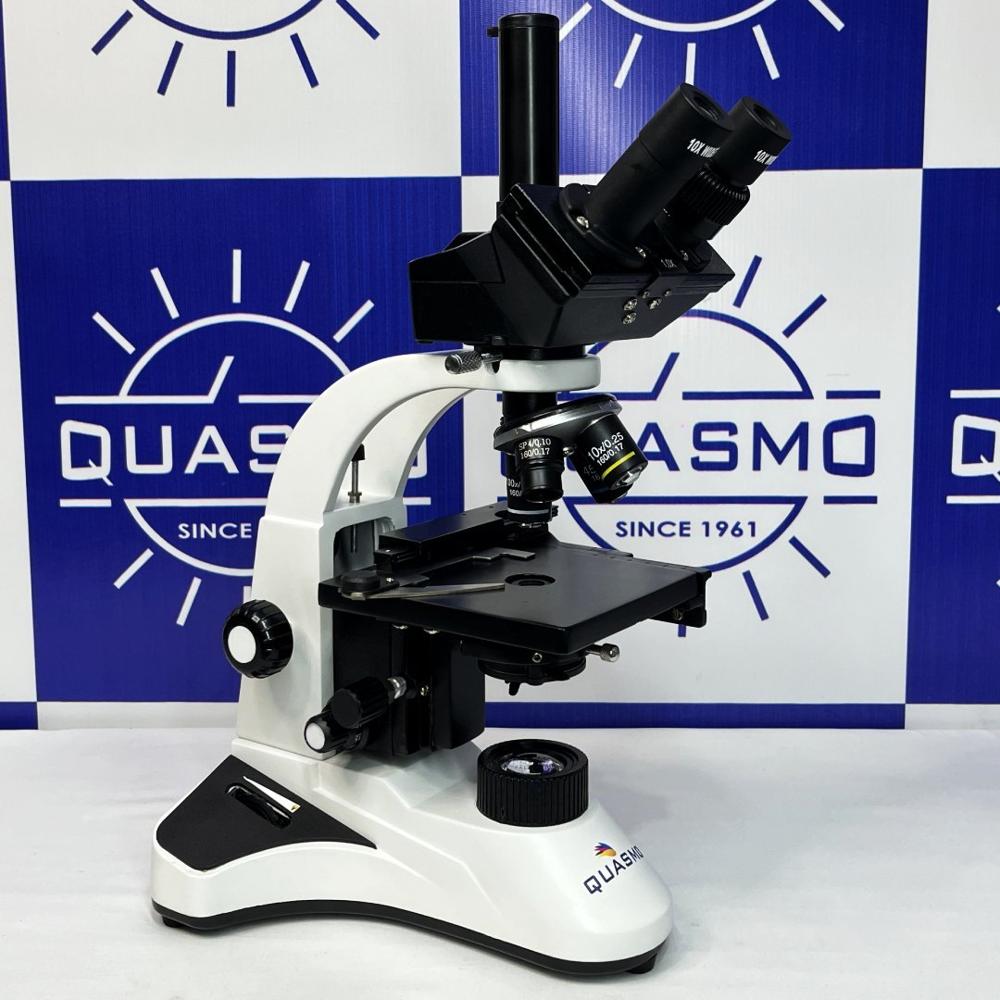

SP-24T PATHOLOGICAL TRINOCULAR MICROSCOPE
- Optical System: Finite Optical System.
- Stand: Aluminium Die-cast Stand (Anti-Rust) Body.
- Viewing Head: Trinocular Head 45 Inclined, 360 Rotatable, IPD 48-75mm, With Diopteric Adjustment
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 16/18mm, Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 40x To 1000x.
- Objectives: Achromatic 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage: Single Plate Graduated Stage Size 140mm x140mm, X/Y Travel Range 70mm X 50mm. Single Specimen Holder Clip.
- Focusing: Separate Coarse & Fine Focusing with 0.2mm/rotation.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens With Aspheric Lens, Iris Diaphragm, Swing-In/Out Filter Holder With Frosted White/Blue Filter.
- Illumination: Halogen 6V-20W (Upto 20,000 hours) or 3W LED Light (Up To 100,000 Working hours) with Intensity Controller.
- Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
- Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Ergonomic and Precise Trinocular DesignThe SP-24Ts trinocular head, inclined at 30 and rotatable, offers comfortable prolonged viewing and adaptability for multi-user environments. The adjustable interpupillary distance (5575mm) and available diopter adjustment on the left eyepiece tube ensure clear, custom focus for each user. This careful design promotes accuracy and reduces eye fatigue during lengthy microscopy sessions.
Advanced Stage Movement for Smooth HandlingA double-layer mechanical stage equipped with precise X-Y coaxial adjustment allows smooth and accurate slide movement. Controls are positioned low for comfort, while two secure metal clips hold slides steady. The robust construction ensures stability, enabling meticulous sample navigation essential for pathological analysis.
Versatile Magnification and Reliable IlluminationWith magnifications ranging from 40X to 1000X and built-in halogen lamp illumination, the SP-24T microscope delivers clear, bright images across a range of applications. Achromatic objectives ensure color-corrected, sharp resolution, and the included blue filter enhances image contrast when necessary. The illumination offers reliable performance for extended use.
FAQs of SP-24T Pathological Trinocular Microscope:
Q: How do I switch objectives quickly on the SP-24T microscope?
A: The SP-24T features a reversed quadruple nosepiece that allows for effortless and speedy objective changes. Simply rotate the nosepiece to the desired objective, and the click-stop mechanism ensures precise alignment.
Q: What steps should I follow for safe stage and slide handling?
A: Use the X-Y coaxial adjustment mechanism to move the stage smoothly without displacing slides. Two metal stage clips secure your specimen, and the low-position controls provide ergonomic handling for precise positioning during observation.
Q: When should I use the blue color filter supplied with the microscope?
A: The blue filter improves contrast and reduces glare when using the halogen lamp for bright-field microscopy. It is particularly useful for viewing stained slides, helping to enhance visual clarity during detailed examinations.
Q: Where can I find additional support if Im unsure about microscope operation or maintenance?
A: A detailed user manual is included with the microscope, offering step-by-step instructions for setup, operation, maintenance, and troubleshooting. For further assistance, consult your supplier or manufacturer.
Q: What is the optical benefit of anti-fungal treatment on this microscope?
A: All optical components of the SP-24T are anti-fungal treated, significantly reducing the risk of fungus development, especially in humid conditions. This ensures long-term clarity and reliability, maintaining optimal viewing quality over years of use.
Q: How does the trinocular head benefit both observation and image capture?
A: The trinocular design allows simultaneous direct viewing and camera attachment. This setup enables straightforward capturing of still images and videos (dependent on attached camera specifications) without disrupting user observations, facilitating documentation and sharing in research or teaching environments.
