Product Description

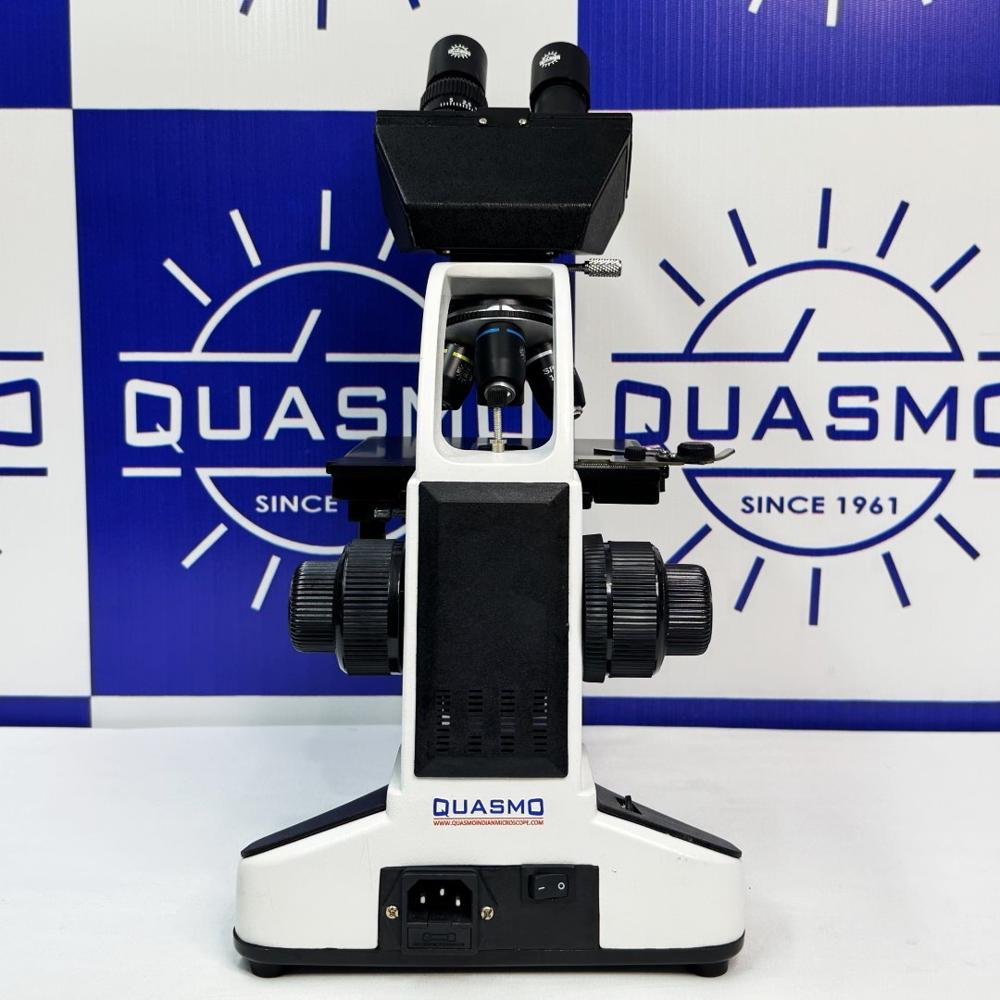

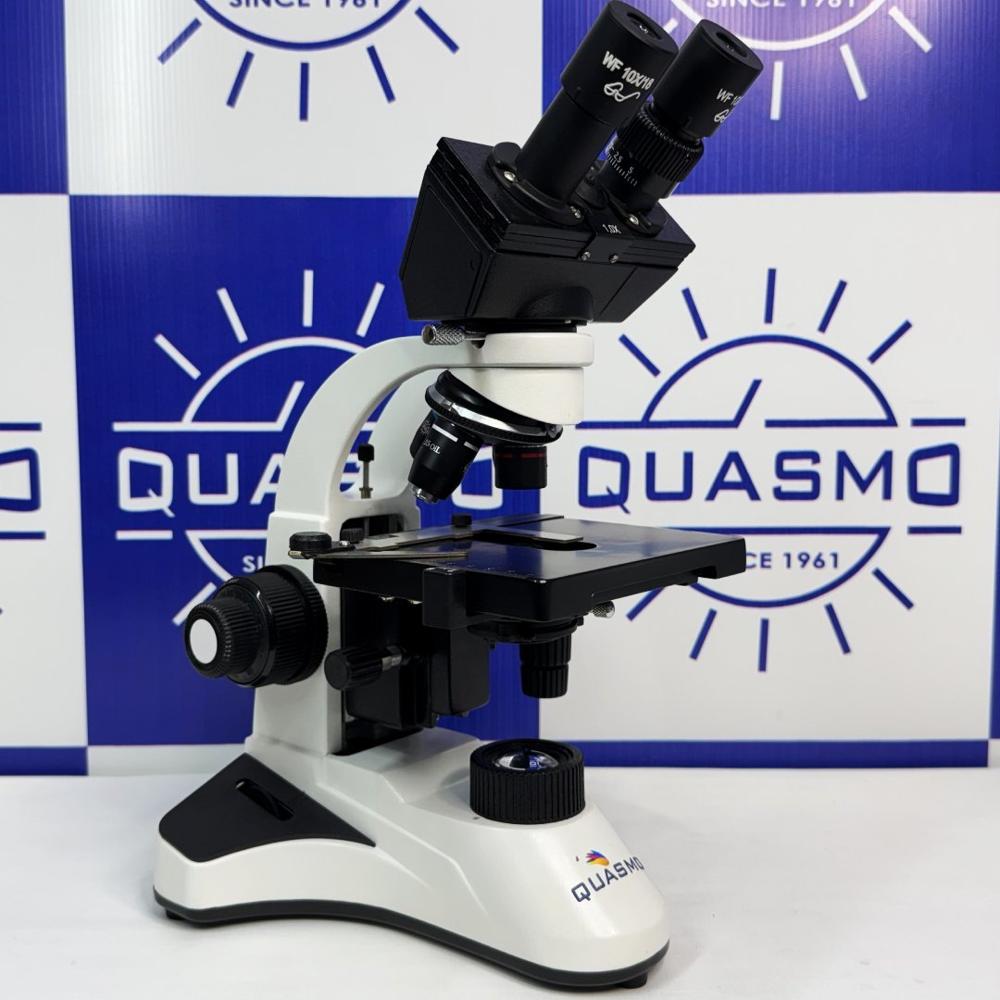

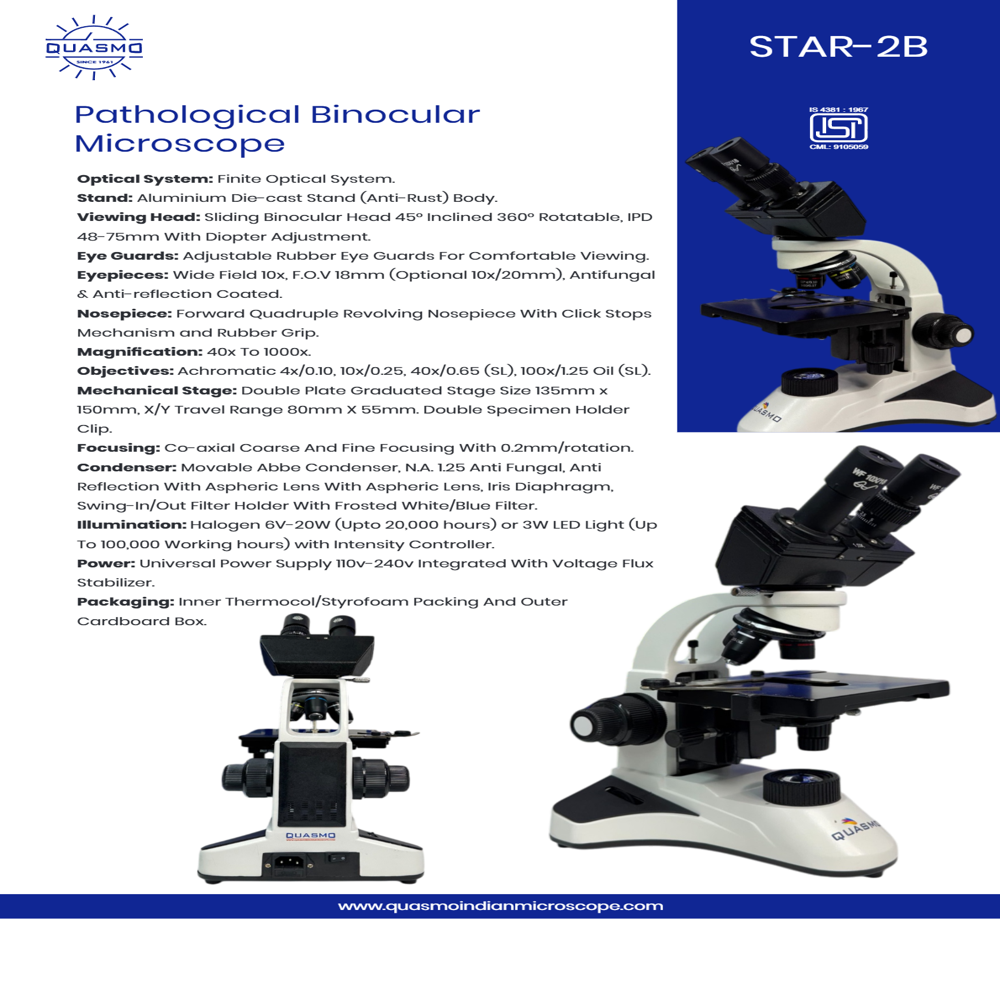

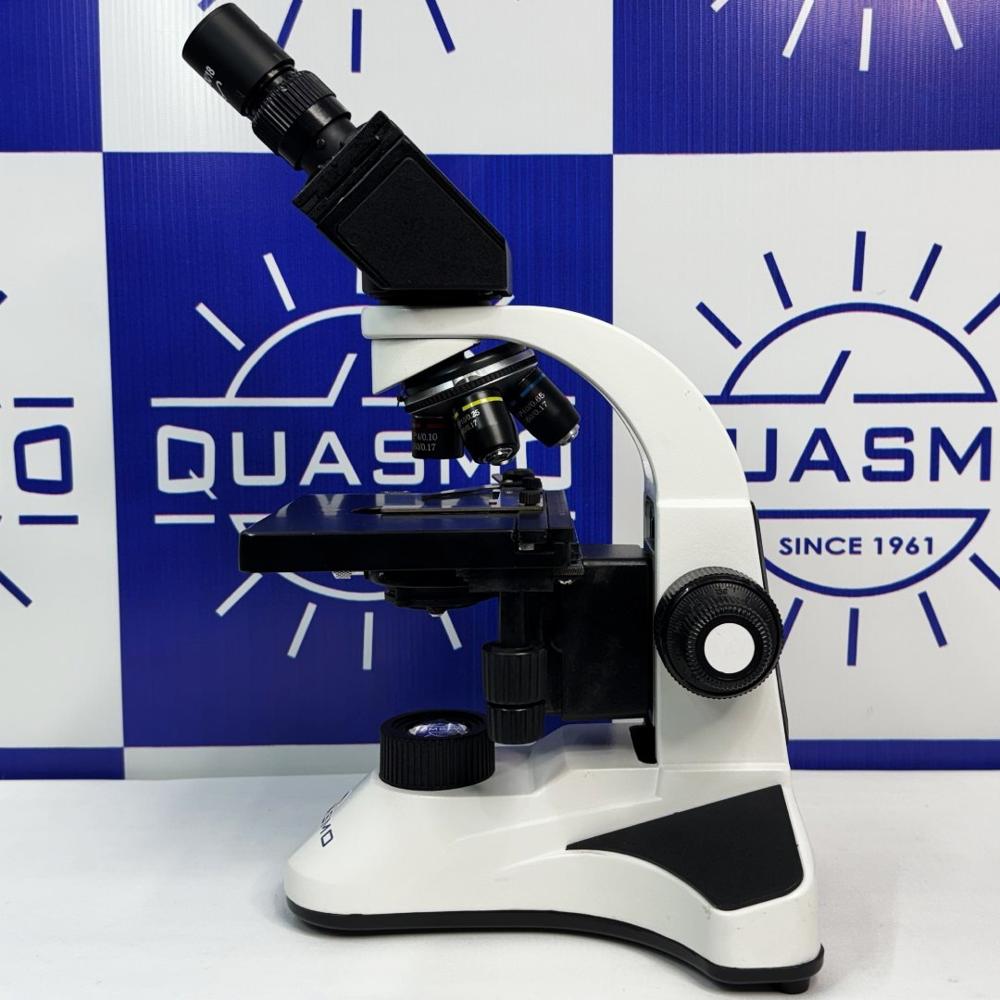

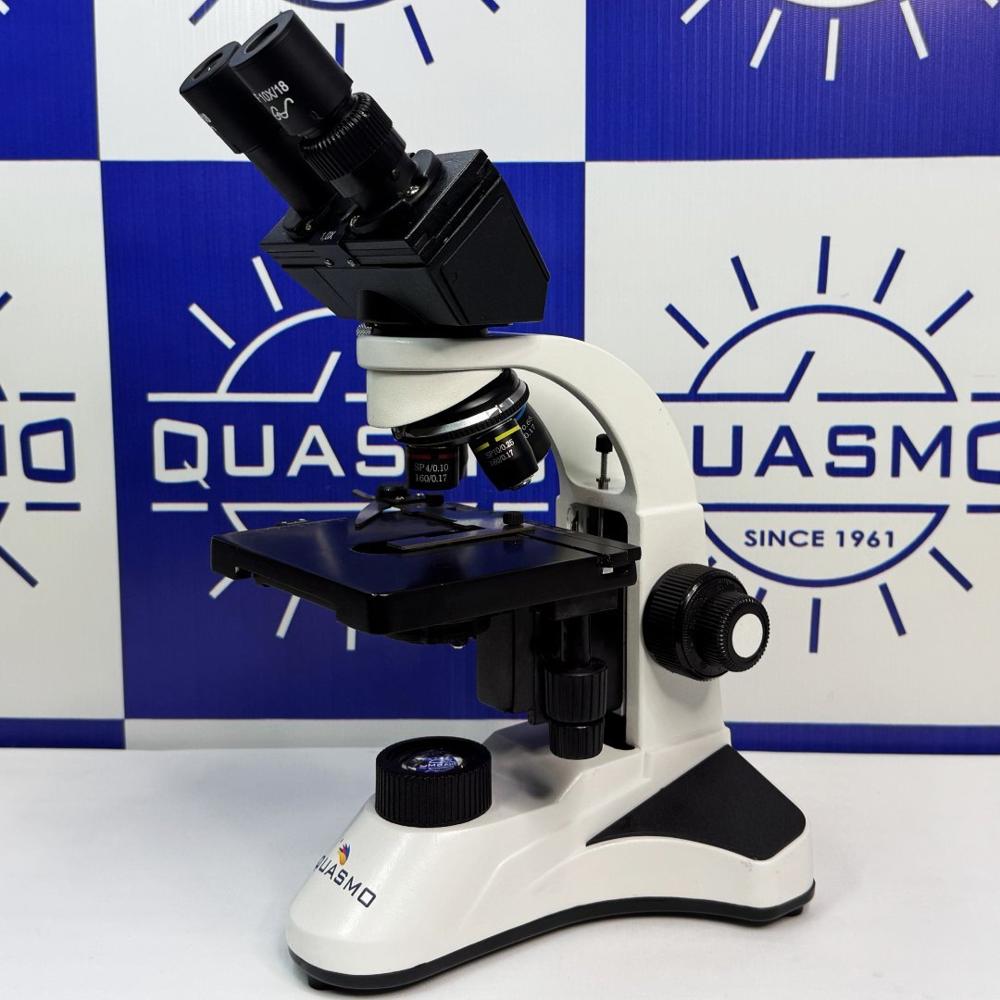

STAR-2B PATHOLOGICAL BINOCULAR MICROSCOPE
- Optical System: Finite Optical System.
- Stand: Aluminium Die-cast Stand (Anti-Rust) Body.
- Viewing Head: Sliding Binocular Head 45 Inclined 360 Rotatable, IPD 48-75mm With Diopter Adjustment.
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 18mm (Optional 10x/20mm), Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 40x To 1000x.
- Objectives: Achromatic 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage: Double Plate Graduated Stage Size 135mm x 150mm, X/Y Travel Range 80mm X 55mm. Double Specimen Holder Clip.
- Focusing: Co-axial Coarse And Fine Focusing With 0.2mm/rotation.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens With Aspheric Lens, Iris Diaphragm, Swing-In/Out Filter Holder With Frosted White/Blue Filter.
- Illumination: Halogen 6V-20W (Upto 20,000 hours) or 3W LED Light (Up To 100,000 Working hours) with Intensity Controller.
- Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
- Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Precision Engineering for Stable PerformanceConstructed from sturdy die-cast alloy metal, the STAR-2B microscope provides exceptional stability during operation. Its robust base minimizes vibrations, allowing users to focus on intricate specimen details without disruption. Graduated stage movement and ball-bearing revolving nosepiece further enhance user experience and precision.
Optimal Viewing Experience and ComfortThe binocular view head inclines at 45 and rotates a full 360, providing flexibility for extended sessions. Adjustable interpupillary distance, diopter adjustment, and ergonomic controls ensure viewing comfort for users with varied preferences. Coaxial coarse and fine focus mechanisms offer precise specimen adjustments.
Superior Optical Clarity and ProtectionAchromatic objectives, wide-field eyepieces, and advanced lens coatings yield sharp, high-contrast visuals essential for pathological analysis. Anti-fungal, anti-reflection coatings promote longer optical life and minimize light scatter, while the built-in halogen illumination system ensures bright, clear samples on demand.
FAQ's of STAR-2B Pathological Binocular Microscope:
Q: How do I set up the STAR-2B Pathological Binocular Microscope for use?
A: To set up the STAR-2B microscope, unpack it from the thermocol box, place it on a stable surface, and connect it to the appropriate power supply (220V or 110V AC). Attach the view head and objectives as per the instructions in the manual, and adjust the eyepiece and interpupillary distance to your comfort.
Q: What magnification levels can I achieve with this microscope?
A: With supplied achromatic objectives (4X, 10X, 40X, 100X oil immersion) and WF10x wide-field eyepieces, the STAR-2B delivers total magnifications ranging from 40X up to 1000X, supporting both general observation and detailed pathological examination.
Q: Where can I adjust the focus and stage position during observation?
A: Focus adjustments are managed through coaxial coarse and fine knobs with tension control, delivering precision up to 0.002 mm per division. The mechanical stage features low-position coaxial X-Y controls and a vernier scale for accurate and smooth specimen positioning within a 70 x 30 mm travel range.
Q: What are the benefits of the anti-fungal and anti-reflection lens coatings?
A: Anti-fungal coatings protect optical elements from mold growth in humid laboratory environments, while anti-reflection coatings enhance image clarity by minimizing glare and stray light, extending optical performance and product lifespan.
Q: How is the microscope illuminated, and what controls are available?
A: Illumination is provided by a built-in 6V/20W halogen lamp with an adjustable transformer and light intensity control, allowing users to optimize brightness for different specimens and contrast levels as needed.
Q: What spare parts and accessories are included with the microscope?
A: The microscope ships with a dust cover, immersion oil, operating manual, and fuse. This ensures smooth operation and maintenance from the start.
Q: When is individual diopter adjustment necessary, and how do I use it?
A: Individual diopter adjustment on the left eyetube allows users with vision differences between their eyes to achieve precise focus. To use, adjust the diopter ring while looking through the left eyepiece until the image appears sharp and clear.
