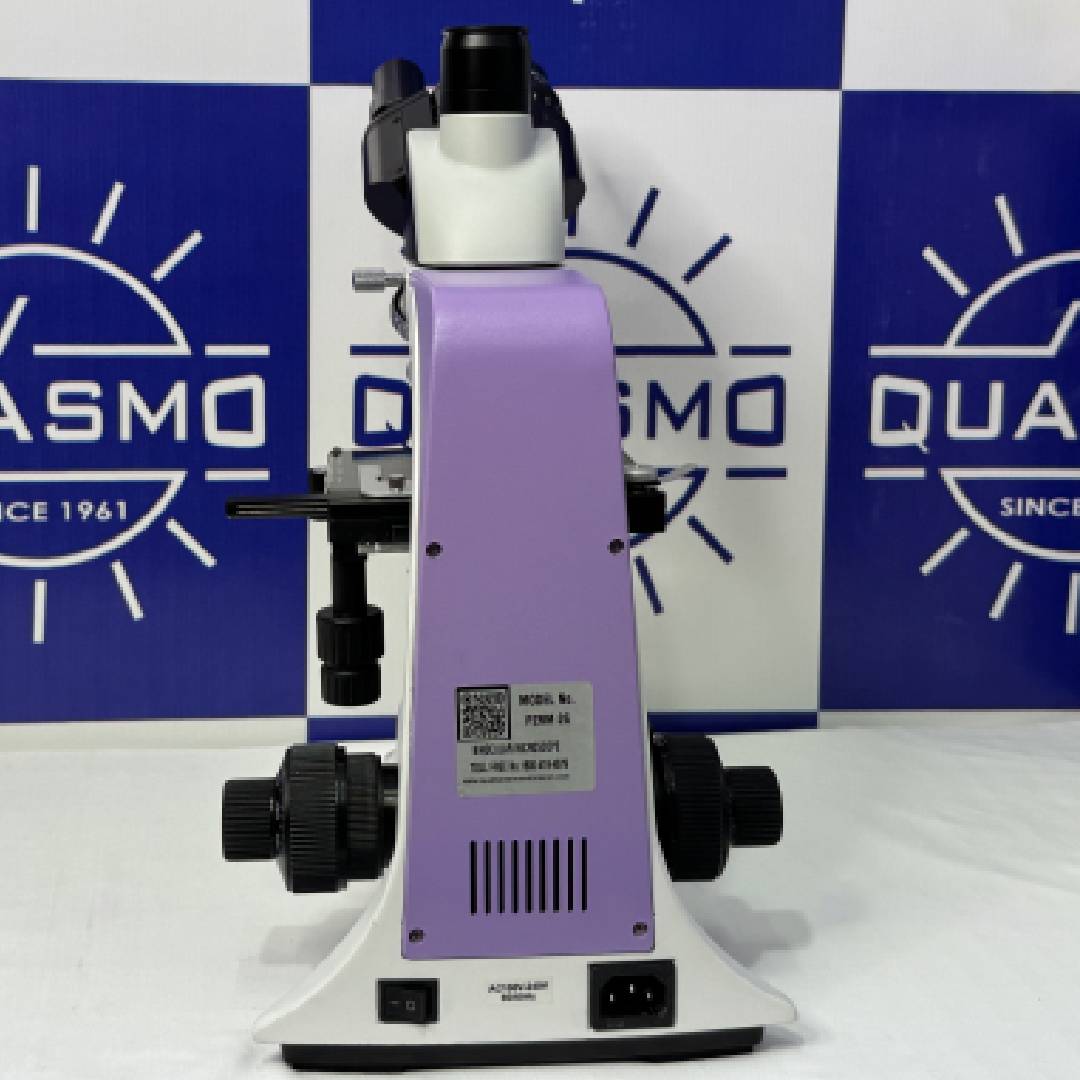

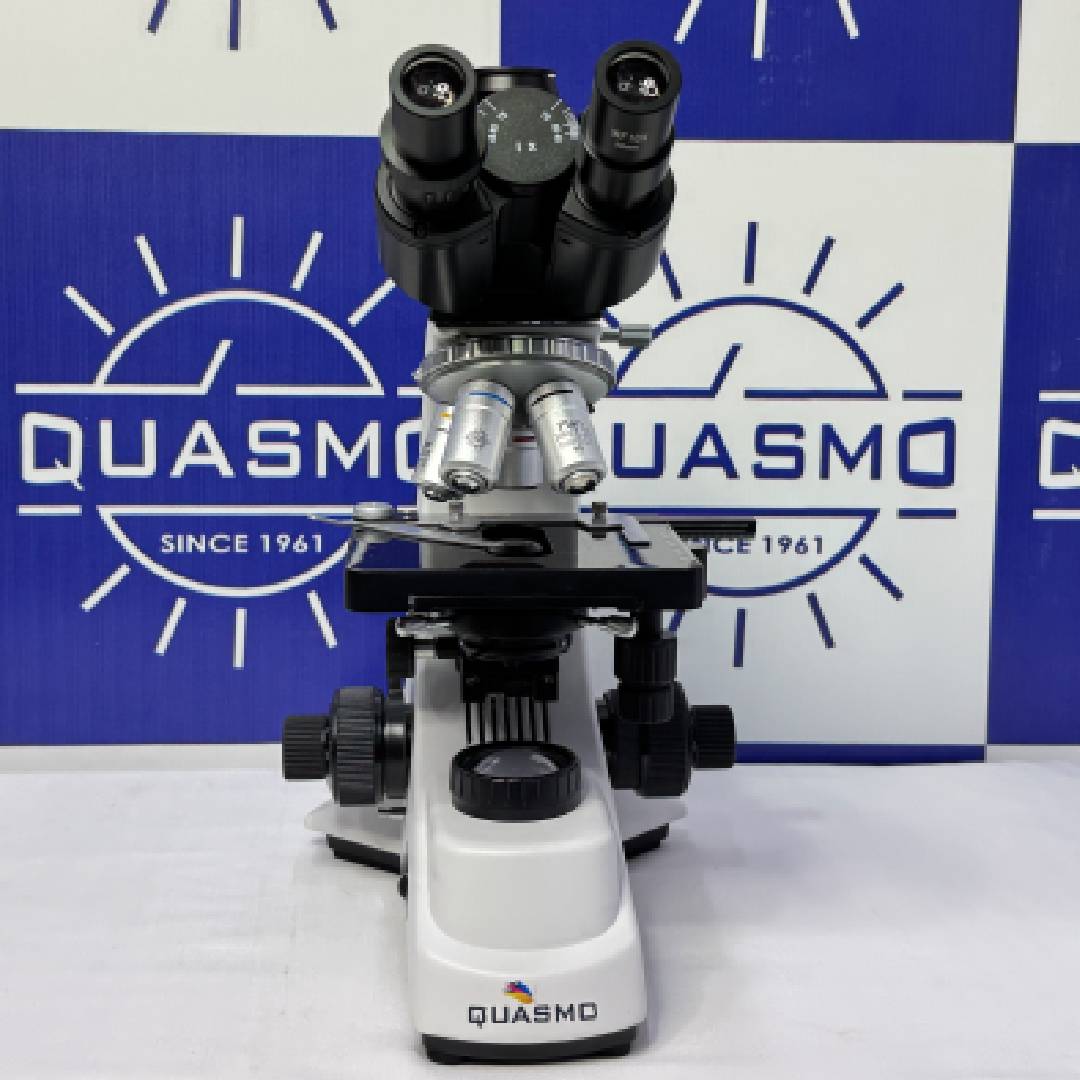

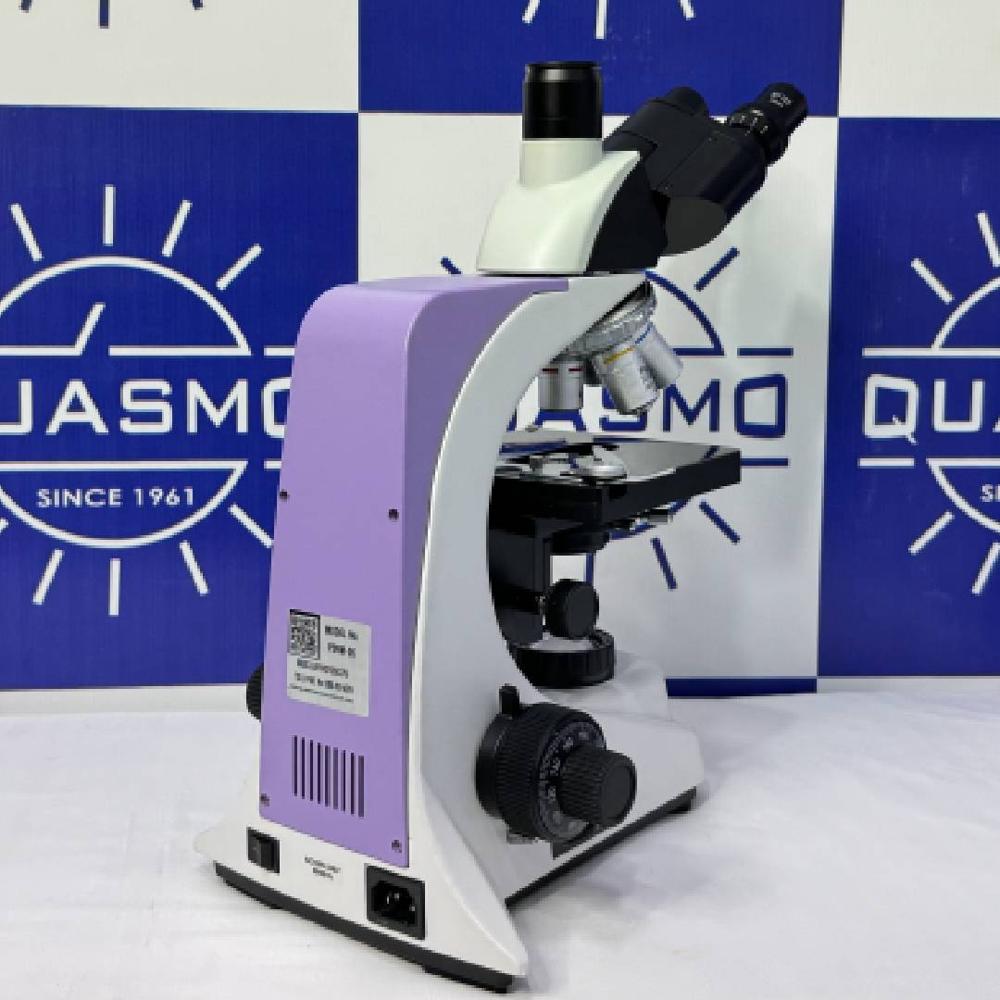

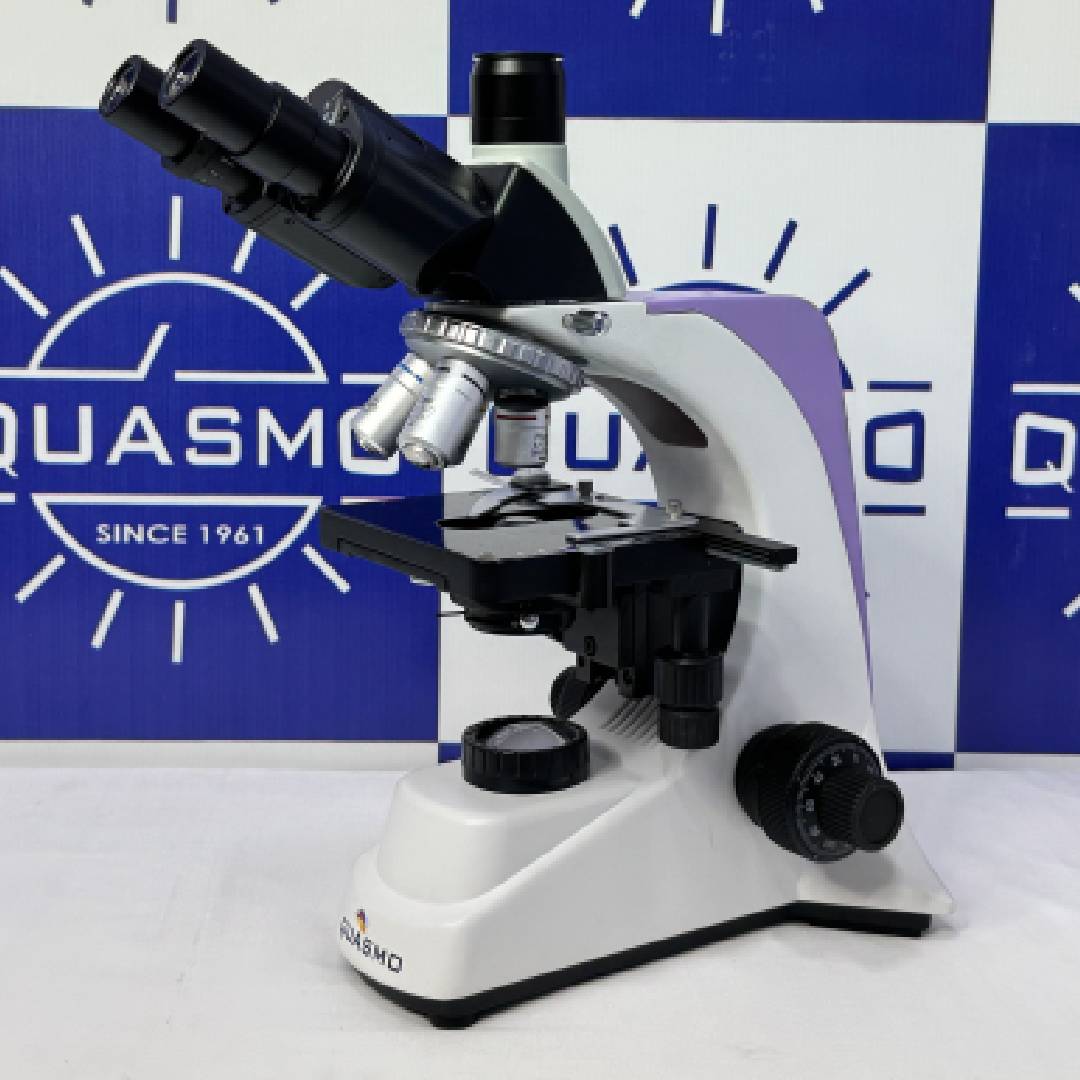

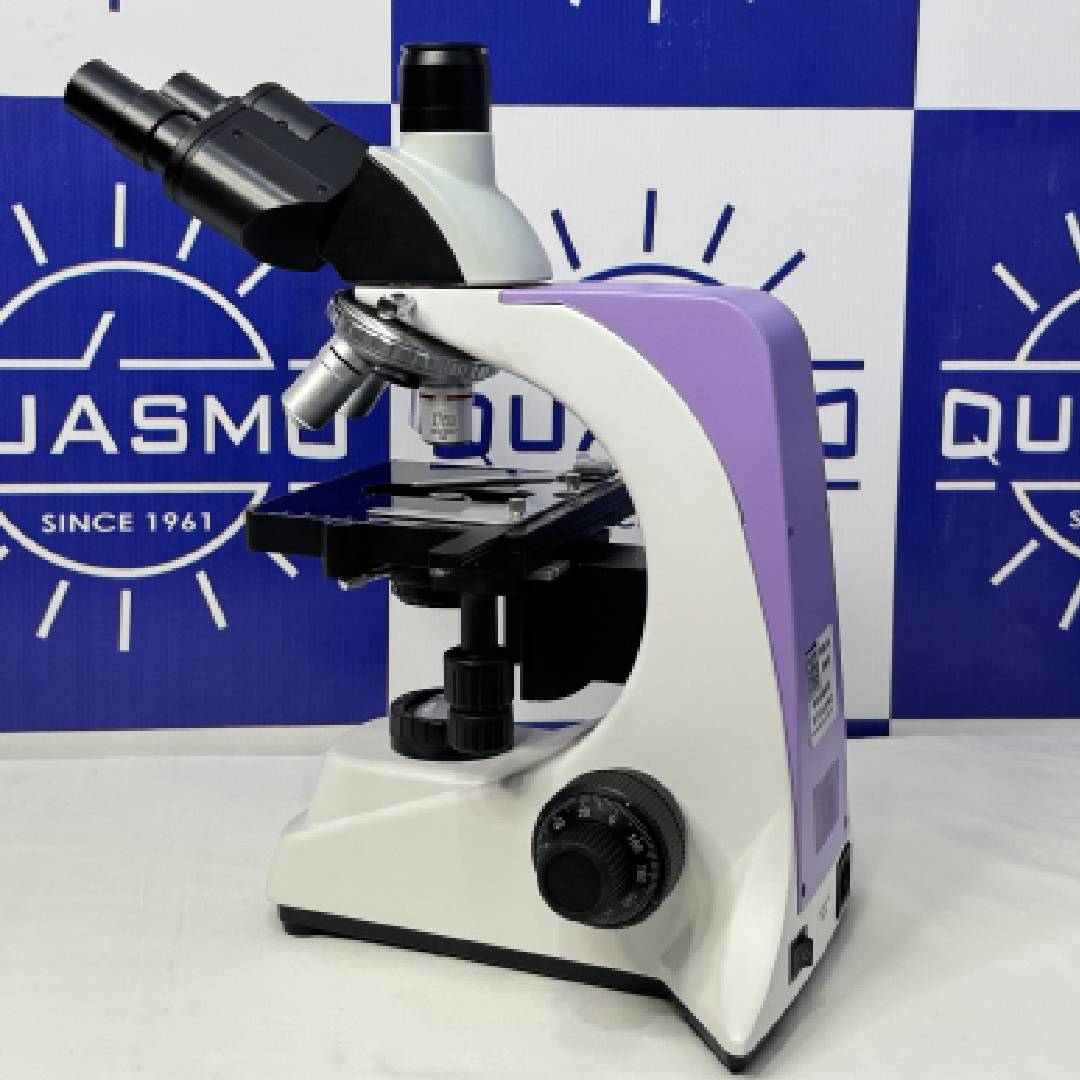

Research Trinocular Microscope STAR-4T: Single Mould Body & PLAN DIN Objectives 4X, 10X, 40X, 100X Oil Welcome to the World of Discovery with the Research Trinocular Microscope STAR-4B! Embark on a journey of scientific exploration with the cutting-edge features of the STAR-4B, brought to you by QUASMO. Let's delve into what makes this microscope a standout choice for researchers and enthusiasts alike. Optical System: Finite Optical System. Stand: Single Mould Sturdy Aluminum Die-cast Stand (Anti-Rust) Body. Viewing Head: Siedentopf Trinocular Head 30 Inclined 360 Rotatable, IPD 48-75mm With Diopter Adjustment. Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing. Eyepieces: Wide Field 10x, F.O.V 18mm & 10x, F.O.V 20mm (Optional), Antifungal & Anti-reflection Coated. Nosepiece: Forward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip. Magnification: 40x To 1000x. Objectives: Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL). Mechanical Stage: Double Plate Graduated Stage Size 140mm x 140mm, X/Y Travel Range 90mm X 65mm. Scratch-Resistant, Double Specimen Holder Clip. Focusing: Co-axial Coarse And Fine Focusing With 0.2mm/rotation. Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens, Iris Diaphragm With Frosted White/Blue. Illumination: 3W LED Light (Up To 100,000 Working hours) with Intensity Controller. Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer. Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Advanced Optical PrecisionThe STAR-4T Microscope utilizes achromatic objectives and wide field eyepieces to produce sharp, clear images. The 160mm optical tube, aligned with a fine adjustment mechanism allowing 0.002mm precision, ensures outstanding clarity and focus, catering to the demands of detailed biological and clinical work.
Versatile Trinocular Head and Camera CompatibilityEquipped with a trinocular head inclined at 45 degrees and 360-degree rotation, the STAR-4T enables comfortable dual eyepiece viewing and seamless integration with digital cameras. Capture photos and videos with various resolutions, depending on the attached camera module, for effective documentation and analysis.
User-Friendly Features and DurabilityErgonomically designed with a chemical-resistant, baked enamel finish, this microscope boasts features such as a double-layer mechanical stage, low-position coaxial controls, and anti-fungal optics. Accessories like a dust cover and cleaning cloth ensure long-term protection and maintenance.
FAQ's of STAR-4T Research Trinocular Microscope:
Q: How do I attach a camera to the STAR-4T Research Trinocular Microscope?
A: To attach a camera, use the dedicated trinocular port on the head of the microscope. Ensure that your digital eyepiece camera or module is compatible with the standard interface. Simply connect your camera as per its manual, and you can capture still images or videos directly from the microscope's optical path.
Q: What is the process for switching between magnifications?
A: Switching magnifications involves rotating the reversed quadruple nosepiece, which holds four objective lenses (4X, 10X, 40X(S), 100X(S, Oil)). Rotate the nosepiece until the desired objective lens clicks securely into place. Adjust the focus using the coarse and fine focusing knobs to achieve a sharp image.
Q: When is oil immersion required while using this microscope?
A: Oil immersion is used when employing the 100X (S, Oil) objective lens. Apply a small drop of immersion oil between the lens and the slide to enhance resolution and image clarity during high magnification observations of fine specimen details.
Q: Where can this microscope be used effectively?
A: The STAR-4T Research Trinocular Microscope is designed for advanced laboratories, research facilities, educational institutions, and clinical settings. Its robust construction and high-quality optics make it suitable for a range of biological and clinical applications requiring precise image analysis.
Q: What are the benefits of the ergonomic and anti-vibration features in this microscope?
A: The ergonomic design and anti-vibration base ensure comfortable, fatigue-free use during extended observations. Anti-slip pads and a stable base reduce movement, preserving focus and clarity, which is crucial for detailed laboratory work.
Q: How do I maintain and clean the microscope for optimal performance?
A: Maintain the microscope by regularly using the provided dust cover to protect it from contaminants. Clean the lenses with the included cleaning cloth and only use recommended cleaning solutions. Periodically check moving parts for smooth operation and replace bulbs or fuses as needed for uninterrupted usage.
Q: What accessories come with the STAR-4T, and how do they support usage?
A: Included accessories are a dust cover, cleaning cloth, immersion oil, and a manual. These items help maintain cleanliness, prolong equipment life, and ensure users have the resources needed for effective operation and specimen analysis.
