Product Description

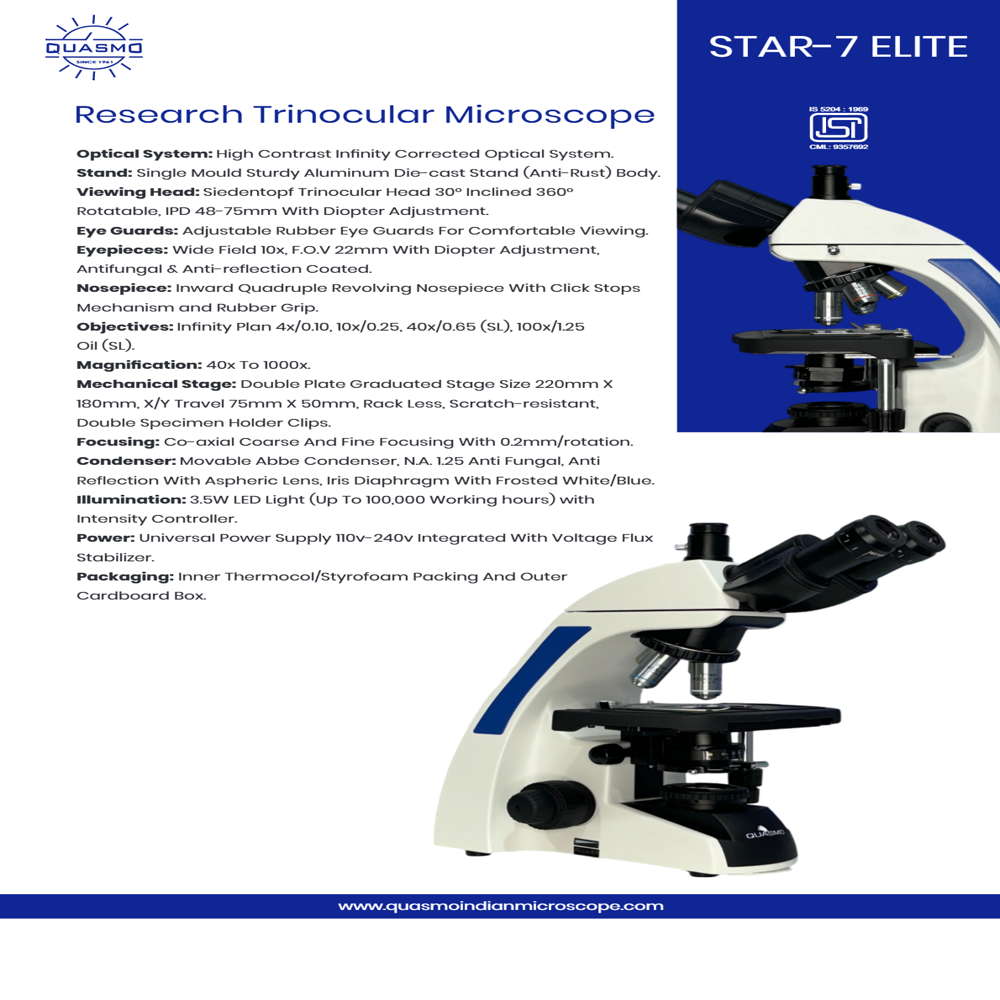

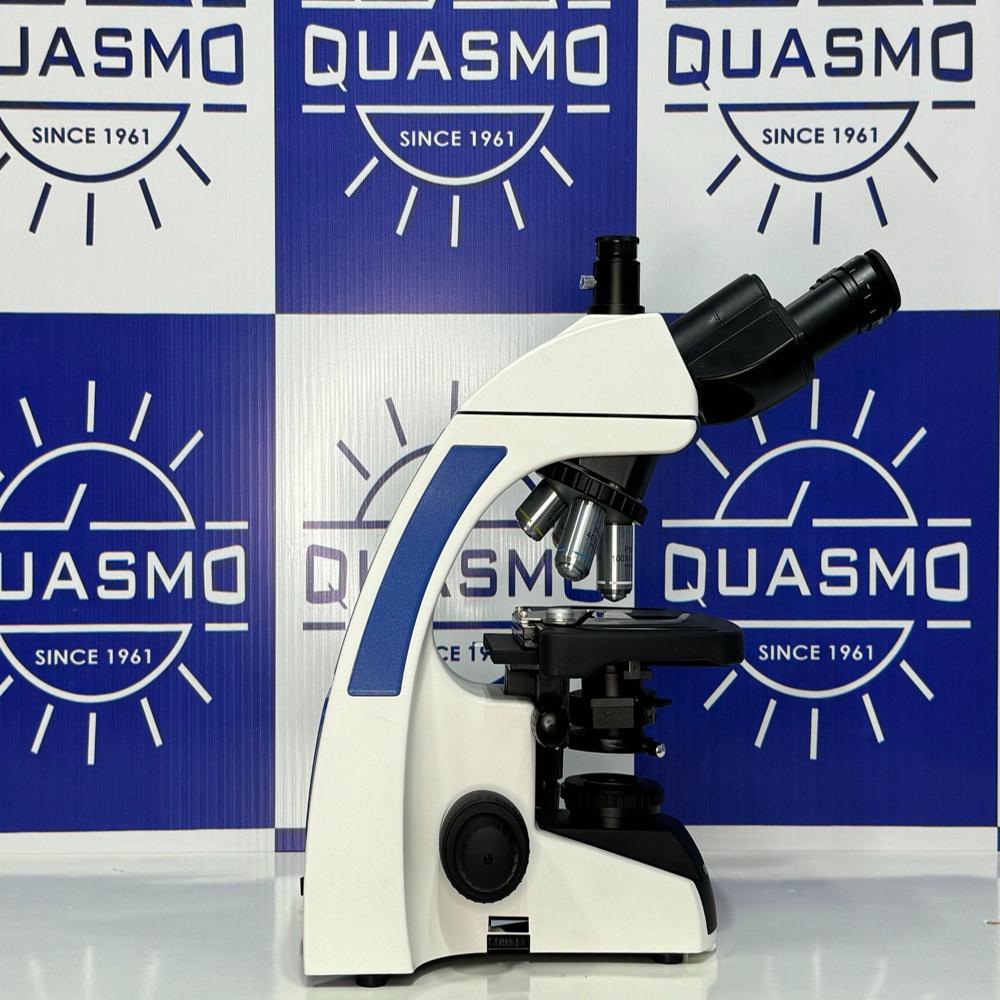

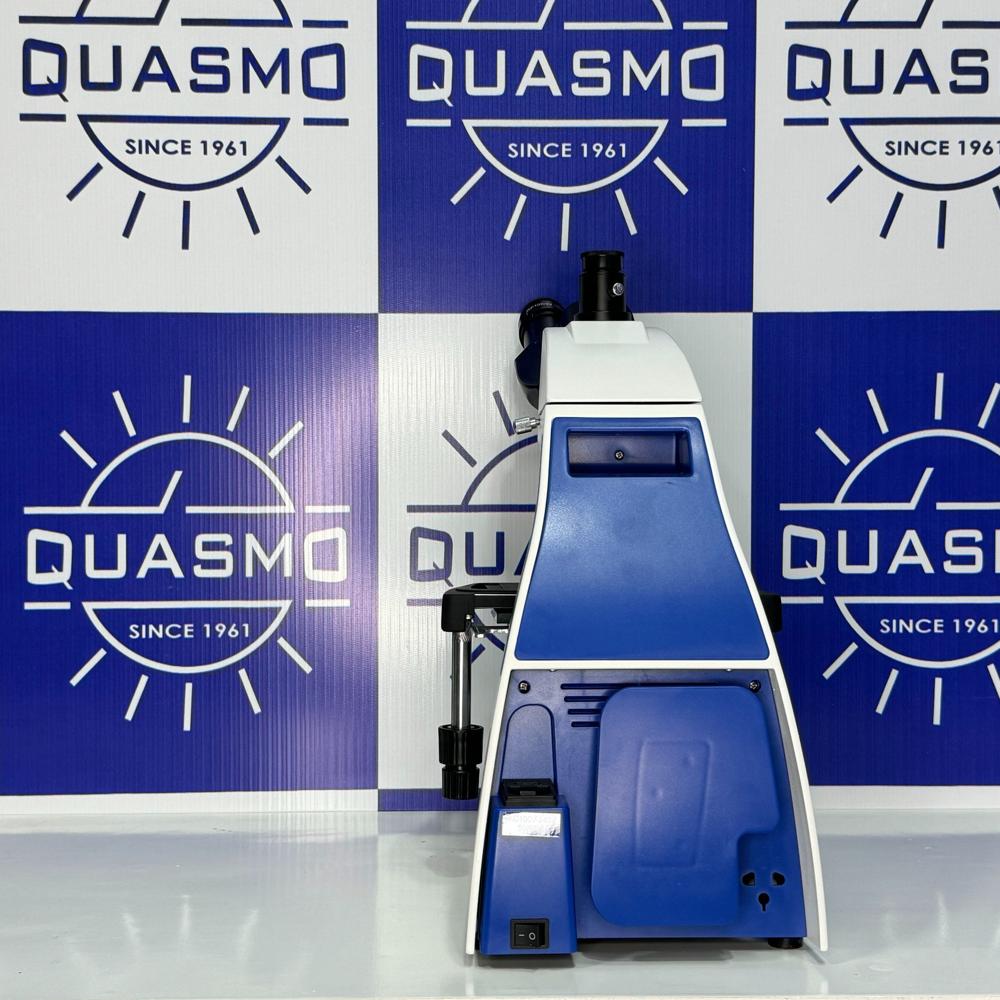

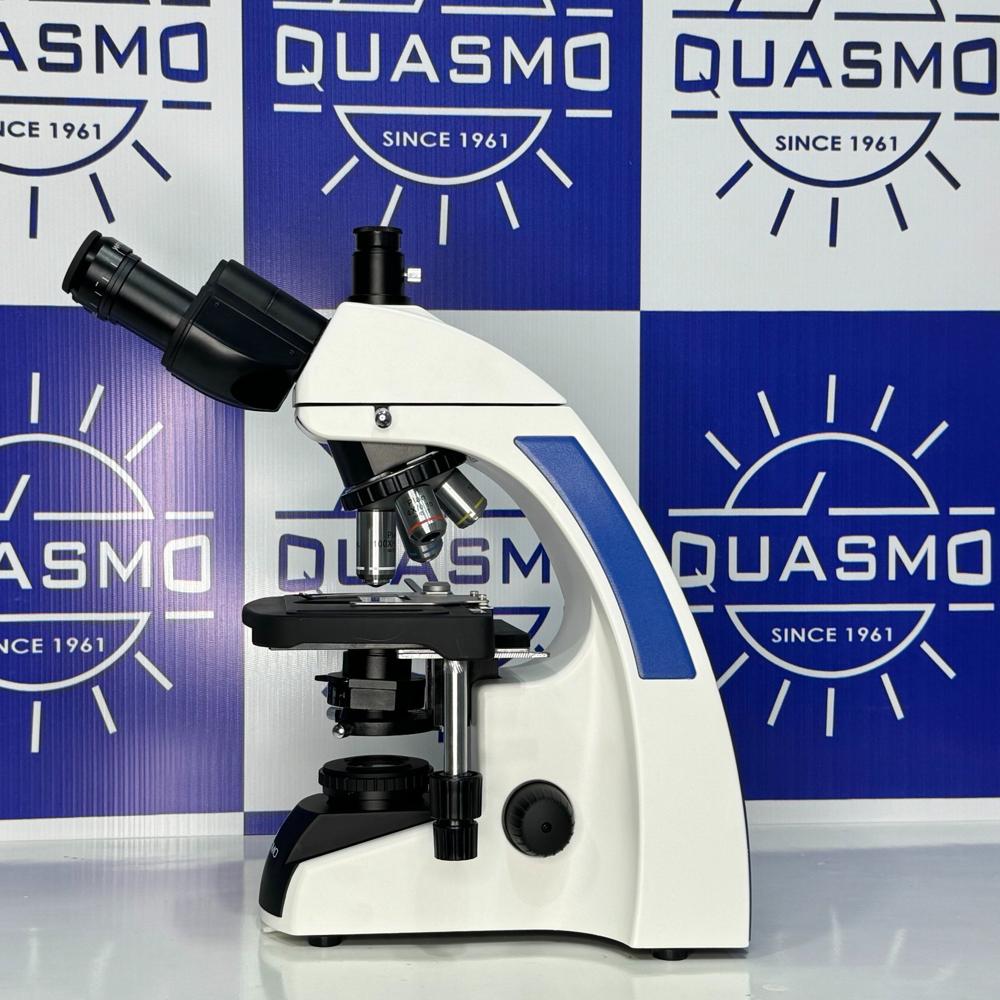

STAR-7 ELITE Research Trinocular Microscope
Optical System: High Contrast Infinity Corrected Optical System.
Stand: Single Mould Sturdy Aluminum Die-cast Stand (Anti-Rust) Body.

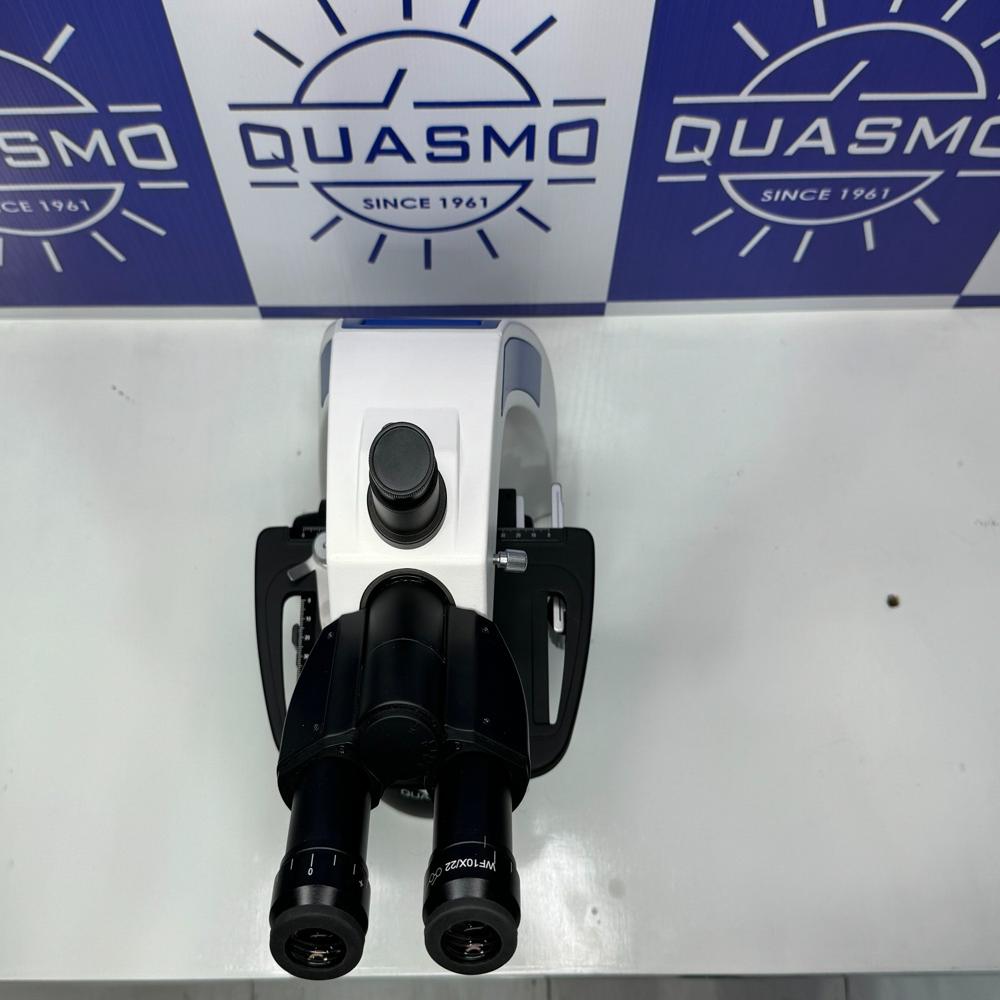

Viewing Head: Siedentopf Trinocular Head 30 Inclined 360 Rotatable, IPD 48-75mm With Diopter Adjustment.
Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
Eyepieces: Wide Field 10x, F.O.V 22mm With Diopter Adjustment, Antifungal & Anti-reflection Coated.
Nosepiece: Inward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
Objectives: Infinity Plan 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
Magnification: 40x To 1000x.
Mechanical Stage: Double Plate Graduated Stage Size 220mm X 180mm, X/Y Travel 75mm X 50mm, Rack Less, Scratch-resistant, Double Specimen Holder Clips.
Focusing: Co-axial Coarse And Fine Focusing With 0.2mm/rotation.
Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens, Iris Diaphragm With Frosted White/Blue.
Illumination: 3.5W LED Light (Up To 100,000 Working hours) with Intensity Controller.
Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Advanced Optical DesignThe microscope utilizes the reverse quadruple nosepiece and achromatic objectives to deliver high-quality, distortion-free images. Its widefield eyepieces and Abbe condenser ensure bright and clear viewing, making it ideal for detailed microscopic studies and imaging tasks in research environments.
Ergonomic and Versatile ViewingThe trinocular head allows simultaneous observation and digital imaging, rotating 360 for flexible positioning. With interpupillary and diopter adjustments, users experience maximum viewing comfort. The mechanical stage offers precise sample positioning, enhancing productivity during extended usage periods.
Sturdy Construction and Reliable IlluminationConstructed from die-cast metal for vibration resistance, the Star -7 Elite is built to last. Its sealed stage protects components from dust, while long-life LED illumination (up to 50,000 hours) guarantees consistent brightness. Shock-proof packaging ensures safe transport and storage.
FAQ's of Star -7 Elite Research Trinocular Microscope:
Q: How do I attach a digital or CCD camera to the trinocular microscope?
A: The Star -7 Elite Research Trinocular Microscope features a trinocular port that is C-mount compatible, allowing you to easily connect most digital or CCD cameras designed for microscopy. Simply mount the camera onto the port for instant imaging capabilities.
Q: What are the benefits of the reverse quadruple nosepiece design?
A: The reverse quadruple nosepiece offers smooth rotation and convenient access to four objective lenses, minimizing hand movement and improving workflow efficiency during lens changes. This enhances versatility for various research applications.
Q: How does the microscope provide dust protection for sensitive components?
A: Both the stage and objective nosepiece are sealed to prevent dust intrusion into mechanical and optical components. This ensures long-term reliability and consistent image quality even in high-use laboratory settings.
Q: What is the recommended process for focusing specimens?
A: Use the coaxial coarse adjustment for rapid focusing with a 30 mm movement range, followed by fine adjustment in increments of 0.002 mm for precise clarity. This system, paired with tension control, helps achieve optimal focus without image drift.
Q: When should I use oil immersion with this microscope?
A: Oil immersion is required when using the 100x (S, Oil) achromatic objective for high-magnification studies. Place a drop of immersion oil on your specimen slide and gently lower the objective lens into the oil for enhanced resolution and image brightness.
Q: Where can the microscope be used effectively?
A: The Star -7 Elite is suitable for use in research labs, clinical laboratories, academic institutions, and industrial environments where advanced optical performance and reliable imaging are crucial.
Q: What accessories are supplied with the microscope?
A: The package includes dust cover, user manual, power cord, default eyepiece and objective covers, and removable stage clips. Additional accessories, such as cameras, can be attached through the trinocular port as needed.
