Product Description

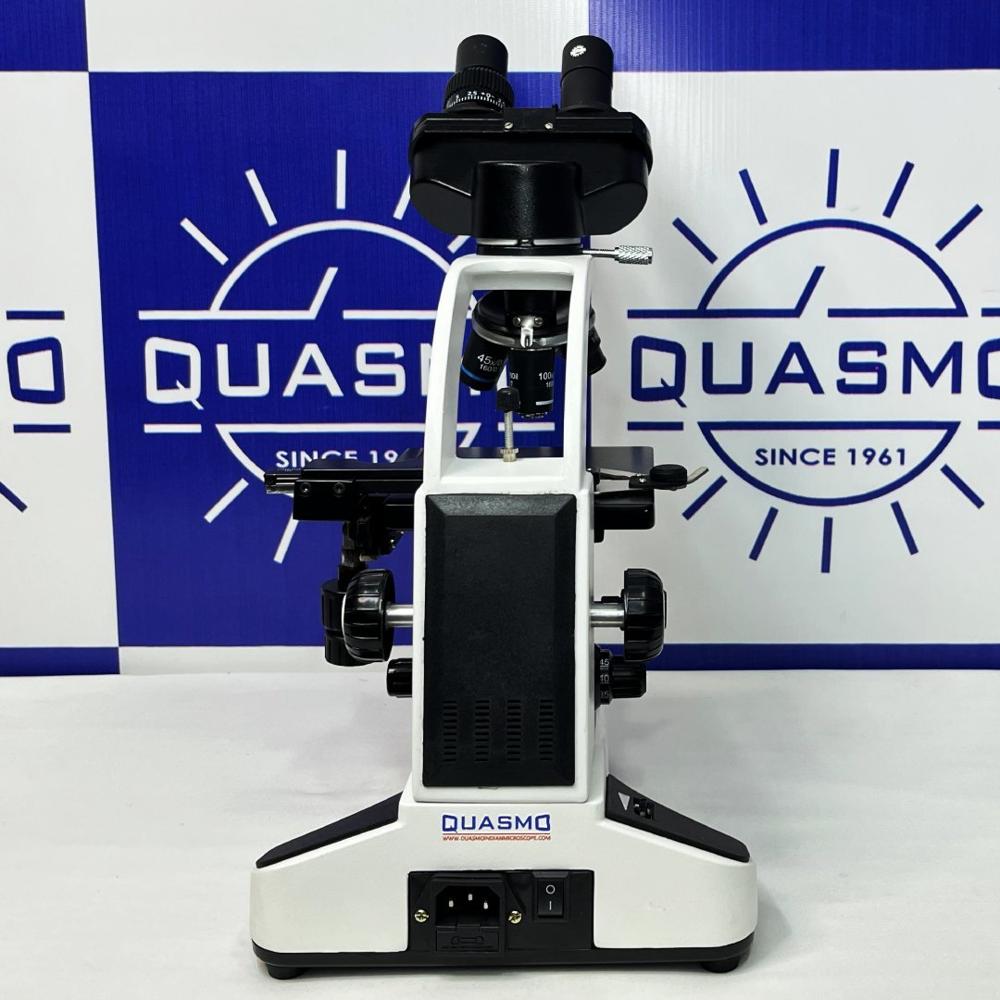

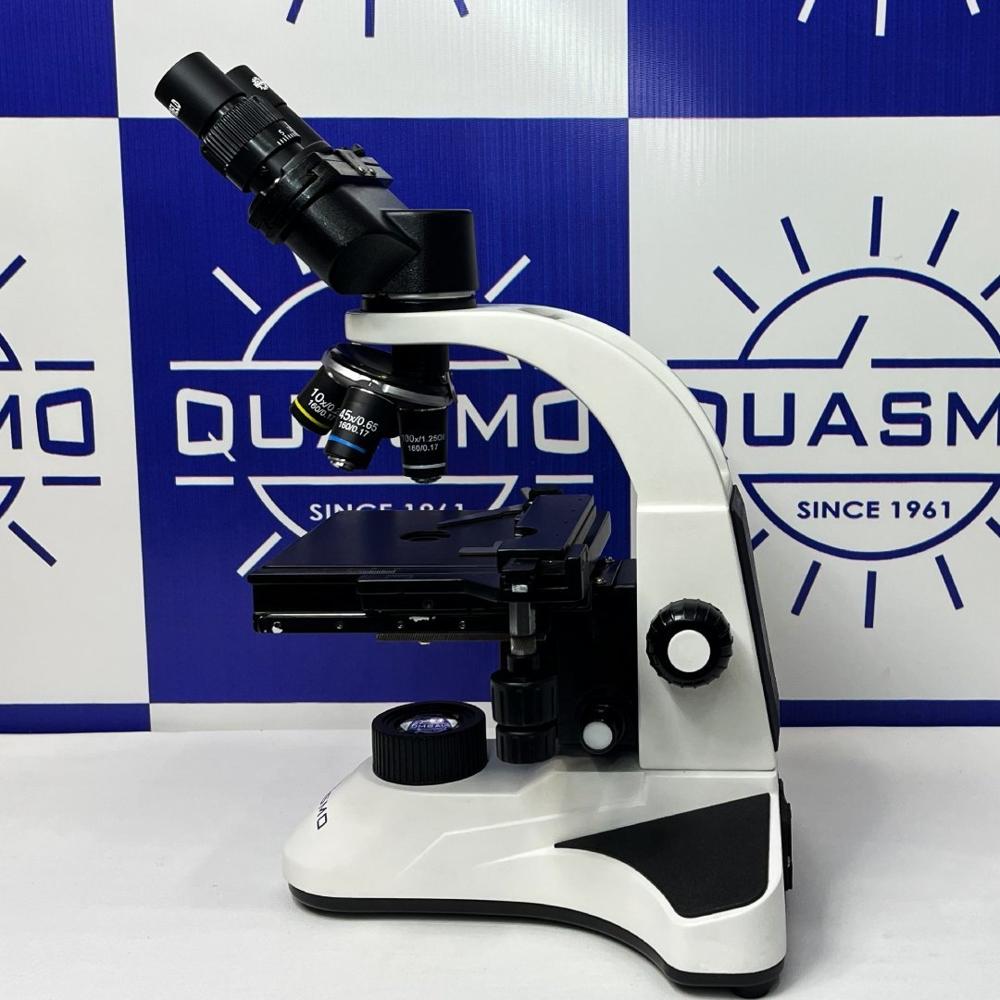

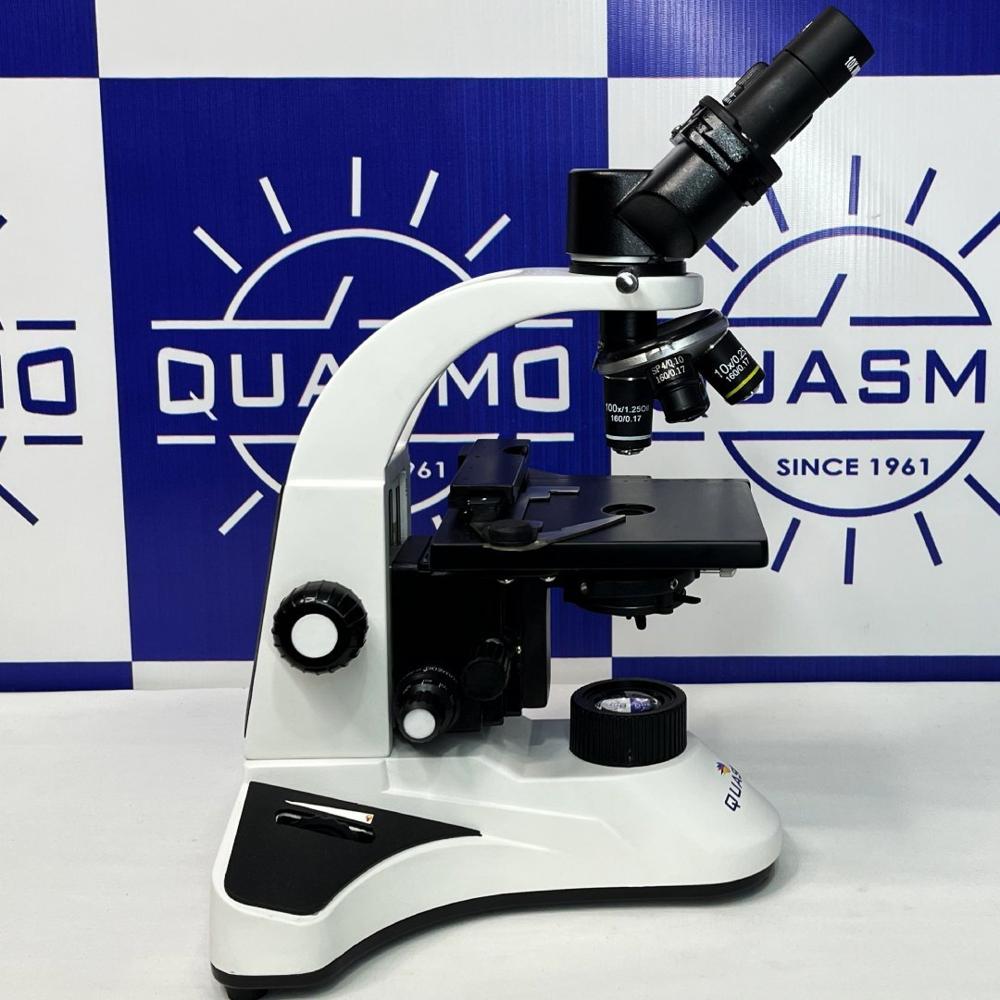

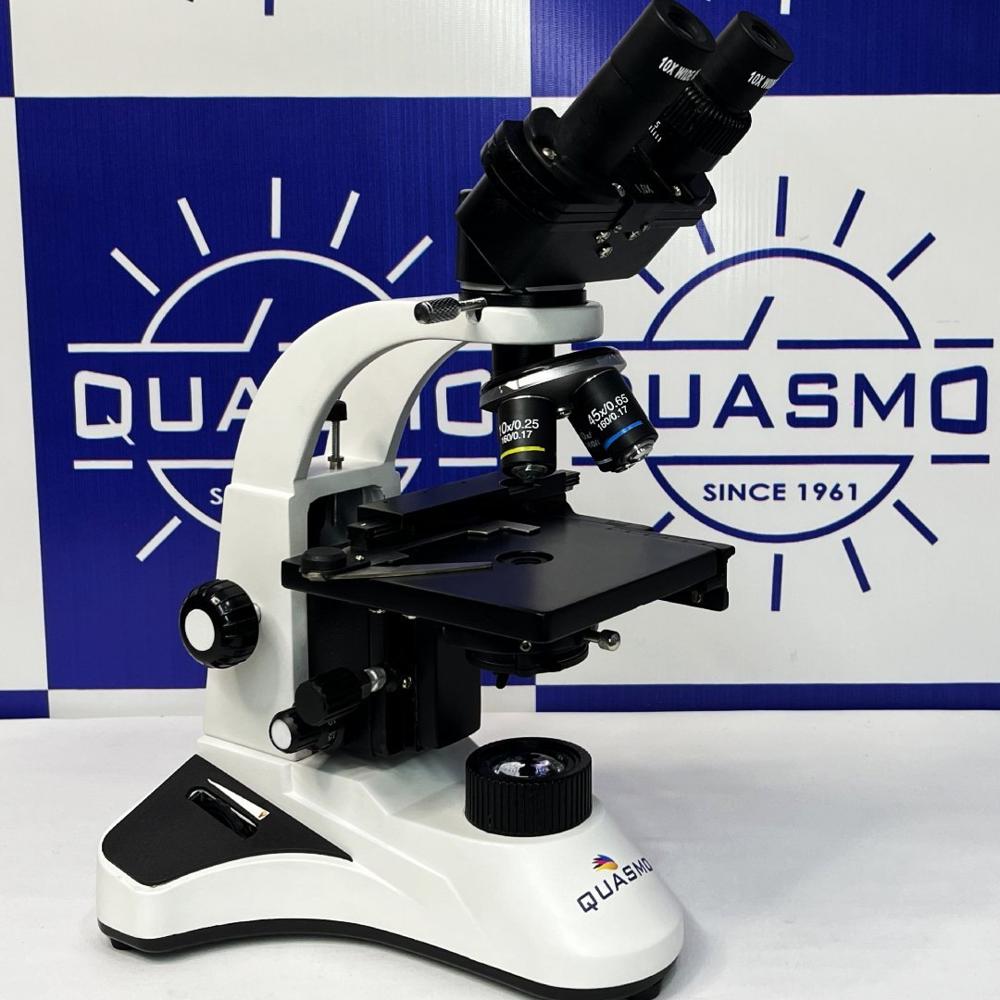

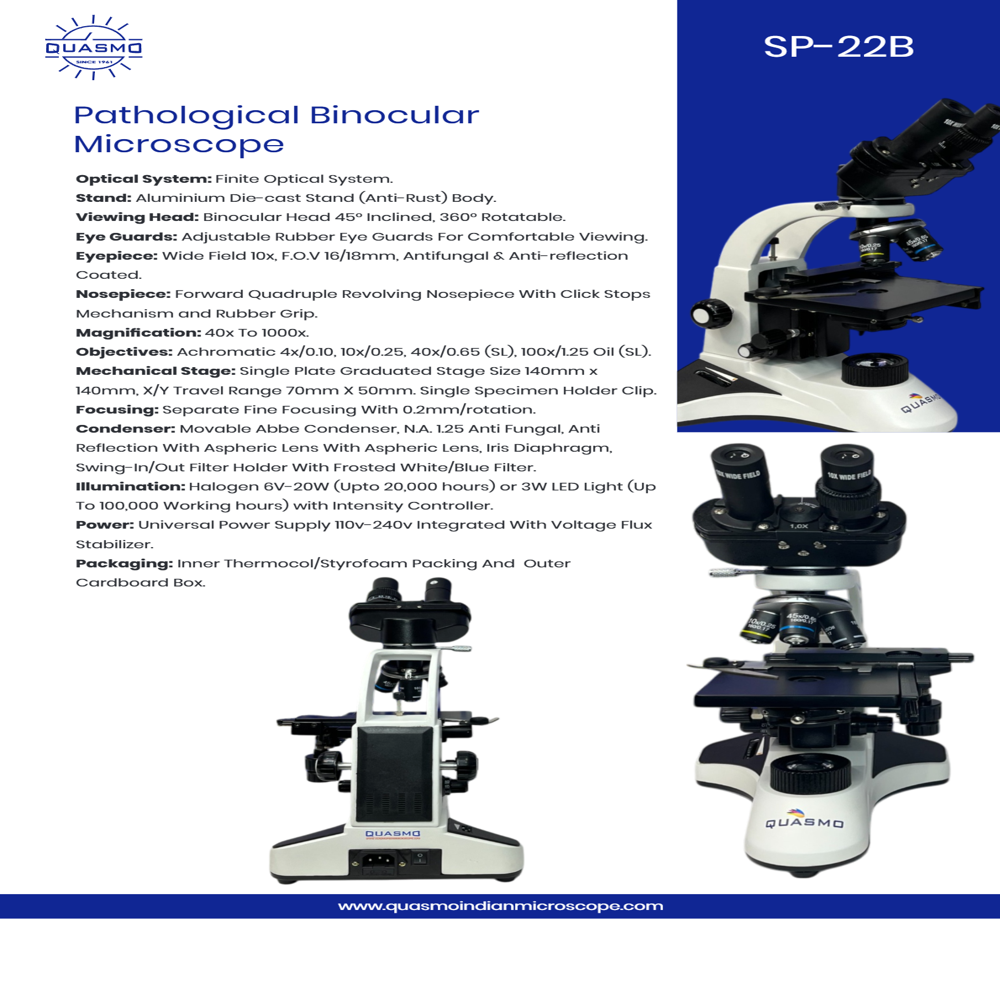

SP-22B PATHOLOGICAL BINOCULAR MICROSCOPE
- Optical System: Finite Optical System.
- Stand: Aluminium Die-cast Stand (Anti-Rust) Body.
- Viewing Head: Binocular Head 45 Inclined, 360 Rotatable.
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 16/18mm, Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 40x To 1000x.
- Objectives: Achromatic 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage: Single Plate Graduated Stage Size 140mm x 140mm, X/Y Travel Range 70mm X 50mm. Single Specimen Holder Clip.
- Focusing: Separate Coarse & Fine Focusing with 0.2mm/rotation.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens With Aspheric Lens, Iris Diaphragm, Swing-In/Out Filter Holder With Frosted White/Blue Filter.
- Illumination: Halogen 6V-20W (Upto 20,000 hours) or 3W LED Light (Up To 100,000 Working hours) with Intensity Controller.
- Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
- Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.
Sturdy and User-Friendly ConstructionDesigned for longevity, the SP-22B features a robust metallic body with an anti-corrosive paint finish, ensuring durability even under frequent use. The 360 rotatable binocular head, inclined at 45, maximizes comfort during long viewing sessions. Practical design enhancements include a dust protection cover and a calibrated X-Y mechanical stage, supporting both ease and precision.
Precision Optics and Versatile MagnificationEnjoy crisp, detailed visualization through anti-fungal coated, achromatic optical components capable of magnifications from 40X to 1000X. The microscope includes a selection of objectives-ranging from low to oil immersion-paired with wide field eyepieces for optimal clarity across applications in pathology and education.
Reliable Illumination and Focus ControlChoose from plano-concave mirror or optional built-in lamp with rheostat control for flexible illumination. The fine and coarse coaxial focusing system, with fine adjustments up to 0.002 mm, delivers nuanced focus essential for accurate observation and documentation in laboratory environments.
FAQ's of SP-22B Pathological Binocular Microscope:
Q: How is the SP-22B microscope used in laboratory or pathological settings?
A: The SP-22B is tailored for routine examination of slides in pathology and laboratory work. Its adjustable mechanical stage enables precise movement and observation, while binocular viewing ensures visual comfort during prolonged use.
Q: What benefits does the anti-fungal coating provide for the SP-22B's optics?
A: The anti-fungal coating on all optical surfaces helps prevent fungal growth, maintaining optical clarity and extending the lifespan of the microscope, especially in humid or tropical environments.
Q: When should the oil immersion objective be used with the SP-22B?
A: The 100X oil immersion objective should be used when examining minute cellular details that require high resolution and greater contrast, particularly in hematology or microbiology applications.
Q: Where can I adjust the interpupillary distance and diopter on the microscope?
A: Interpupillary distance can be set between 55 mm and 75 mm on the binocular head, while the diopter adjustment is available on one eyepiece tube, allowing for precise calibration based on individual eyesight.
Q: What is the process for switching between magnifications on the SP-22B?
A: Simply rotate the quadruple nosepiece to move between the 4X, 10X, 40X, or 100X objective lenses. Each change is smooth, enabling quick adaptation to different magnification needs during sample observation.
Q: How is the microscope supplied and what accessories are included?
A: The microscope is packaged safely in a styrofoam box and is supplied with essential accessories including spare bulb or lamp, fuse, eyepieces, immersion oil, dust cover, and additional objective lenses.
